Order no.: 0333040

AH-101/SW

Order no.: 0333040

AH-101/SW

Utility Cases

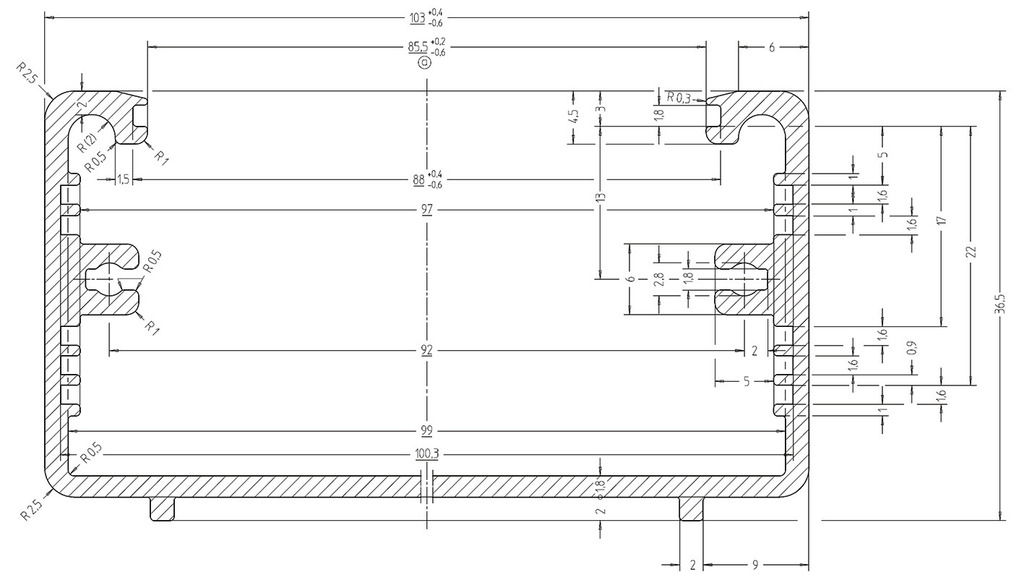

  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: black
  • Total height: 36.5 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Utility Cases
  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: black
  • Total height: 36.5 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Intended use case
Material aluminium sheet, ABS plastic, black
Dimensions 103 x 36.5 x 107 mm
Width 103 mm
Height 36.5 mm
Length 107 mm
PCB dimensions 100 x 100 mm
Weight 159 g
EAN code 4007754074383
Net weight 0.159 kg
