Order no.: 0330060

AH-102

Order no.: 0330060

AH-102

Utility case

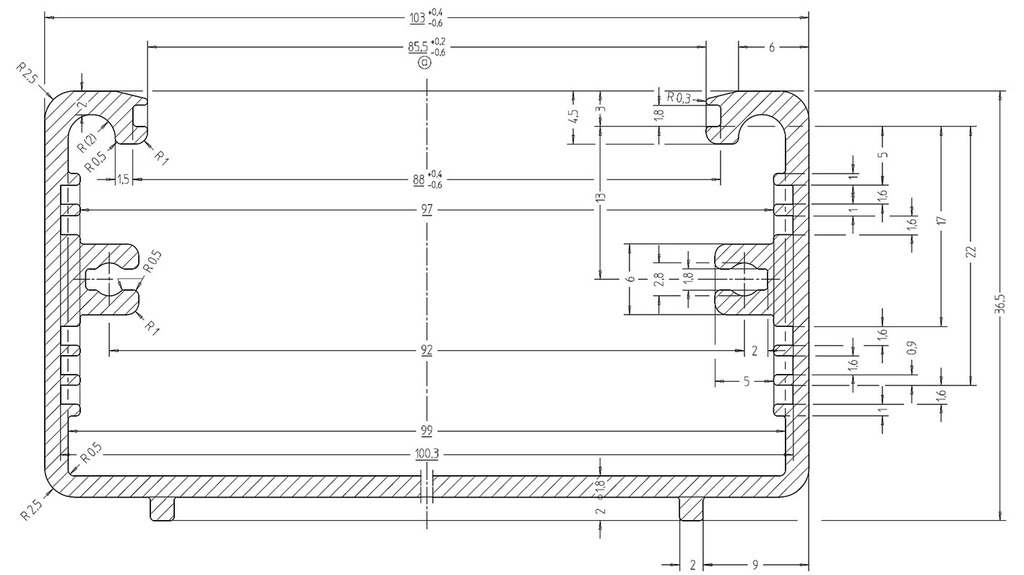

  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: anodised and mat etched
  • Total height: 36.5 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Utility case
  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: anodised and mat etched
  • Total height: 36.5 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Intended use case
Material aluminium sheet, ABS plastic
Dimensions 103 x 36.5 x 167 mm
Width 103 mm
Height 36.5 mm
Length 167 mm
PCB dimensions 100 x 160 mm
Weight 242 g
EAN code 4007754000658
Net weight 0.242 kg
