Order no.: 0068900

CAT-7100A

P1660

Order no.: 0068900

CAT-7100A

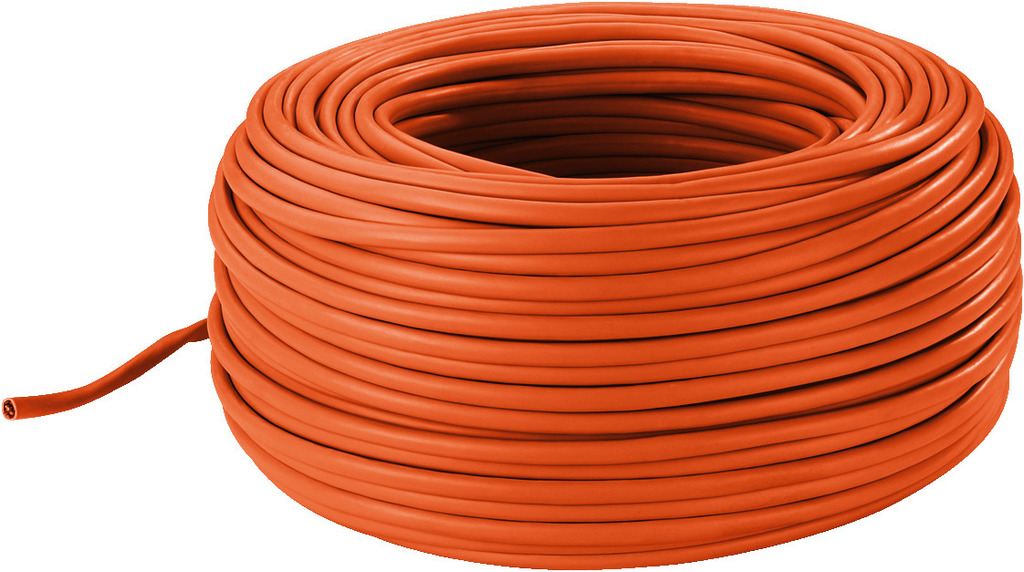

Cat. 7_A installation cable, multiple shielding, S/FTP

100 m, shrink-wrapped coil
10 Gbps, 1,000 MHz
Conductor pairs in metal foil (PiMF), complies with EIA/TIA 568
Overall braided shield
Cable specification: 4x2xAWG 23
Outside diameter: Ø 7.50 mm

continue

About

Cat. 7_A installation cable, multiple shielding, S/FTP

100 m, shrink-wrapped coil
10 Gbps, 1,000 MHz
Conductor pairs in metal foil (PiMF), complies with EIA/TIA 568
Overall braided shield
Cable specification: 4x2xAWG 23
Outside diameter: Ø 7.50 mm

Specifications

Intended use	10GBASE-T Ethernet
Cable specification	4x2xAWG 23/1 CU, S/FTP
Length	100 m
Colour	orange
Material	copper
No. of cores	4 x 2 pair
Cable diameter	Ø 7.5 mm
Minimum bending radius	4xD
Shielding	S/FTP
Impedance	100 Ω @100 MHz
Attenuation	> 85 dB
Power rating	Cat7_A, 1,000 MHz
Packaging	coil, shrink-wrapped
Weight	6 kg

EAN code	4040849918889
Net weight	6 kg
