Order no.: 1001035

CM-304SP

Order no.: 1001035

CM-304SP

Electret headband microphone,
for fitness and aerobics.
  • Back electret microphone cartridge with omnidirectional polar pattern
  • Splashproof
  • Drip ring (additionally protects cartridge from moisture)
  • Flexible cartridge arm
  • Very comfortable to wear due to adjustable headband
  • Secure fit even during strenuous applications, e.g. aerobics or spinning
  • Headband microphone with 2.5 mm inline jack
  • Removable 1.5 m connection cable with 2.5 mm plug with thread and 4-pole mini XLR
  • Connection to phantom power supply adapter (MA-500) or pocket transmitter from JTS (1.5-9 V), available at option
  • Rubber bushing for protecting the connector to be plugged into the pocket transmitter from moisture
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Electret headband microphone,
for fitness and aerobics.
  • Back electret microphone cartridge with omnidirectional polar pattern
  • Splashproof
  • Drip ring (additionally protects cartridge from moisture)
  • Flexible cartridge arm
  • Very comfortable to wear due to adjustable headband
  • Secure fit even during strenuous applications, e.g. aerobics or spinning
  • Headband microphone with 2.5 mm inline jack
  • Removable 1.5 m connection cable with 2.5 mm plug with thread and 4-pole mini XLR
  • Connection to phantom power supply adapter (MA-500) or pocket transmitter from JTS (1.5-9 V), available at option
  • Rubber bushing for protecting the connector to be plugged into the pocket transmitter from moisture
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description headband microphone
Transmission method cable
Polar pattern omnidirectional
System back elecret
Audio frequency range 50-20,000 Hz
Nominal impedance 1.8 kΩ
Sensitivity 22.4 mV/Pa
Max. sound pressure 130 dB
Power supply 1.5-9 V
Admiss. ambient temp. 0-40 °C
Weight 44 g,

30 g (w/o cable)

Cable 1.5 m
Connection 4-pole mini XLR
Packaging dimensions (W x H x L) 0.187 x 0.1 x 0.143 m
Gross weight 0.185 kg
Net weight 0.069 kg
EAN code 4007754423853
Net weight 0.069 kg

Accessories for CM-304SP

New
Description:
connection cable
Colour:
black
Suitable for:
CM-304SP, CM-214U
Order no.: 1001318
Connection cable, 1.5 m
New
Description:
connection cable
Colour:
black
Suitable for:
CM-304SP, CM-214U
Order no.: 1001319
Connection cable
New
Description:
connection cable
Colour:
black
Suitable for:
CM-304SP, CM-214U
Order no.: 1001320
Connection cable
Order no.: 0259612
UHF PLL audio transmission set, incl. transmitter E-7TB/5 and receiver...
General information:
Description:
UHF PLL audio transmission set
Carrier frequency range:
506-542 MHz
Order no.: 0259612
UHF PLL audio transmission set, incl. transmitter E-7TB/5 and rec...
General information:
Description:
pocket transmitter
Carrier frequency range:
506-542 MHz
Order no.: 0259621
UHF PLL pocket transmitter with lavalier microphone
Category:

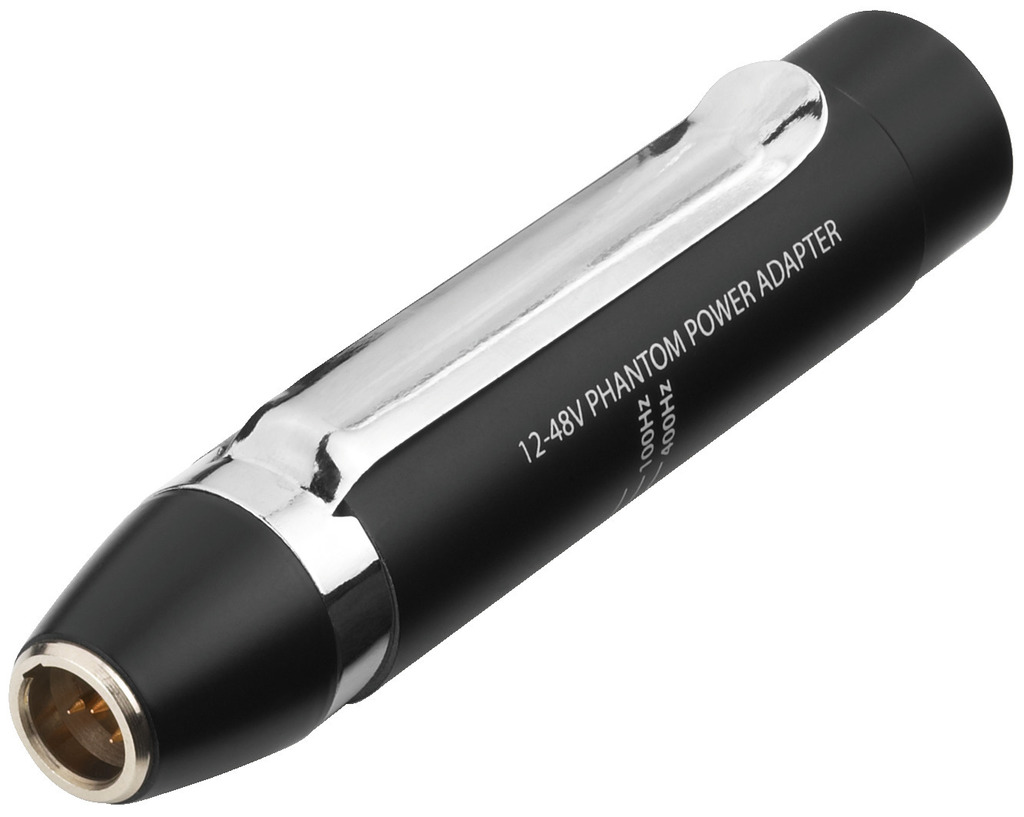

phantom power supply adapter
