Order no.: 0236090

CM-804IF

Order no.: 0236090

CM-804IF

Electret headband microphone
  • Lightweight, very comfortable to wear, expressive sound
  • Adjustable neckband, lockable
  • Integrated drip ring protects cartridge from moisture
  • Folding ear hook
  • Connection cable with strain relief, screwed-on
  • Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
  • Supplied with bag, windshield and collar clip
EVENT Rookie 01/2014
“All in all, the UF-10 from JTS is an excellent choice for users who value wideband wireless systems with a sophisticated technology and a reasonable price-performance ratio but who tolerate a lower mechanical stability compared with other much more expensive devices. Although this system requires a licence because of its frequency range, it should still be a reliable investment in future wireless equipment, even beyond the year 2015. With regard to the sound, the UF-10TH/12 is a good dynamic microphone with excellent close-talking characteristics. The headset CM-804/F is of omnidirectional characteristic and features a well-balanced sound without too many peaks in the high frequency range. The pocket transmitter UF-10TB/10 is additionally supplied with the unidirectional lavalier microphone CM-501 which allows you to immediately start with voice transmissions.”
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Electret headband microphone
  • Lightweight, very comfortable to wear, expressive sound
  • Adjustable neckband, lockable
  • Integrated drip ring protects cartridge from moisture
  • Folding ear hook
  • Connection cable with strain relief, screwed-on
  • Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
  • Supplied with bag, windshield and collar clip
EVENT Rookie 01/2014
“All in all, the UF-10 from JTS is an excellent choice for users who value wideband wireless systems with a sophisticated technology and a reasonable price-performance ratio but who tolerate a lower mechanical stability compared with other much more expensive devices. Although this system requires a licence because of its frequency range, it should still be a reliable investment in future wireless equipment, even beyond the year 2015. With regard to the sound, the UF-10TH/12 is a good dynamic microphone with excellent close-talking characteristics. The headset CM-804/F is of omnidirectional characteristic and features a well-balanced sound without too many peaks in the high frequency range. The pocket transmitter UF-10TB/10 is additionally supplied with the unidirectional lavalier microphone CM-501 which allows you to immediately start with voice transmissions.”
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description headband microphone
Transmission method cable
Polar pattern omnidir.
System electret

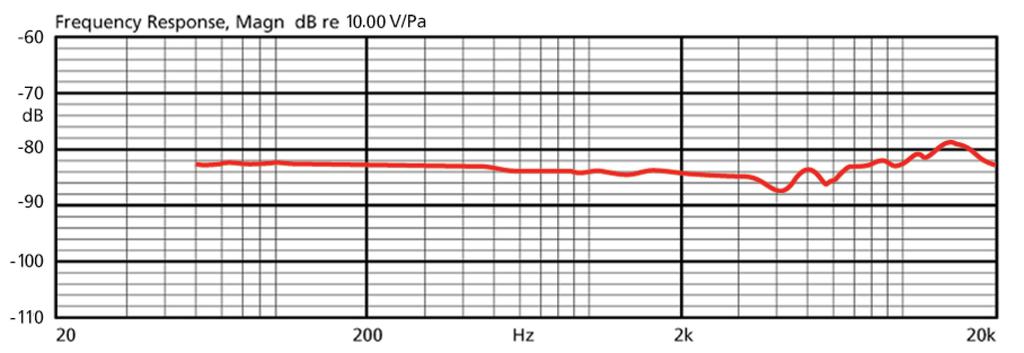

Audio frequency range 60-15,000 Hz
Nominal impedance 1.8 kΩ
Sensitivity 6.3 mV/Pa
Max. sound pressure 130 dB
Power supply pocket transmitter IN/PT/UF series

or PS-500

Admiss. ambient temp. 0-40 °C
Weight 20 g
Connection 4-pole mini XLR

(optional: 3.5 mm stereo plug,

3-pole mini XLR or

4-pole Hirose connector)

Packaging dimensions (W x H x L) 0.12 x 0.03 x 0.21 m
Gross weight 0.12 kg
Net weight 0.078 kg
EAN code 4007754224078
Net weight 0.078 kg

Accessories for CM-804IF

Description:
connection cable
Colour:
beige
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0236120
Connection cable, 1.5 m
Description:
connection cable
Colour:
black
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0237240
Connection cable
Description:
connection cable
Colour:
beige
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0069240
Connection cable, 1.5 m
Description:
connection cable
Colour:
black
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0069410
Connection cable
Description:
connection cable
Colour:
beige
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0236530
Connection cable, 1.5 m
Description:
connection cable
Colour:
black
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW
Order no.: 0237250
Connection cable, 1.5 m
Description:
connection cable
Colour:
beige
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW
Order no.: 0236110
Connection cable, 1.5 m
Description:
connection cable
Colour:
black
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW
Order no.: 0237260
Connection cable, 1.5 m
Description:
connection cable
Colour:
beige
Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW, TG-98TA/5, TG-10T/1, KA-10/1PACK, ATS-10TM, ATS-16T, ATS-20T, ATS-42T, ATS-50T, ATS-60T, WAP-8
Order no.: 1000746
Connection cable, 1.5 m, right-angle plug
