Order no.: 0233290

DM-1100

Order no.: 0233290

DM-1100

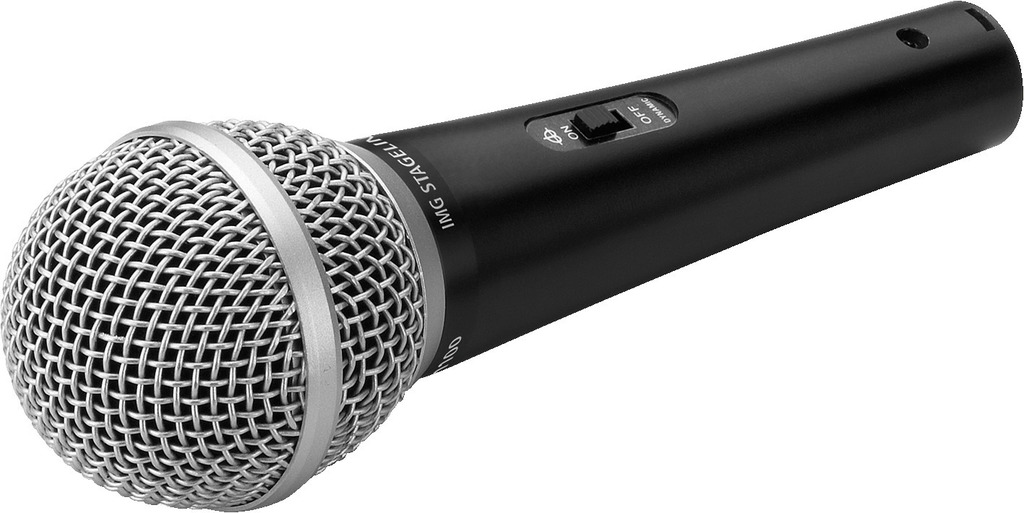

Dynamic microphone,

for speech and vocals.

Cardioid polar pattern
Supplied with cable
Supplied w/o microphone holder. Matching microphone holder (e.g. MH-202) is available at option

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Dynamic microphone,

for speech and vocals.

Cardioid polar pattern
Supplied with cable
Supplied w/o microphone holder. Matching microphone holder (e.g. MH-202) is available at option

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	vocal microphone
Transmission method	cable
Polar pattern	cardioid
System	dynamic
Audio frequency range	50-16,000 Hz
Nominal impedance	500 Ω
Sensitivity	2.5 mV/Pa
Max. sound pressure	145 dB
Housing material	metal
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 54 mm x 175 mm
Weight	250 g
Cable	5 m, low-noise, 6.3 mm plug
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.1 x 0.065 x 0.23 m
Gross weight	0.553 kg
Net weight	0.428 kg

EAN code	4007754172317
Net weight	0.428 kg
