Order no.: 0177090

DMP-102

Order no.: 0177090

DMP-102

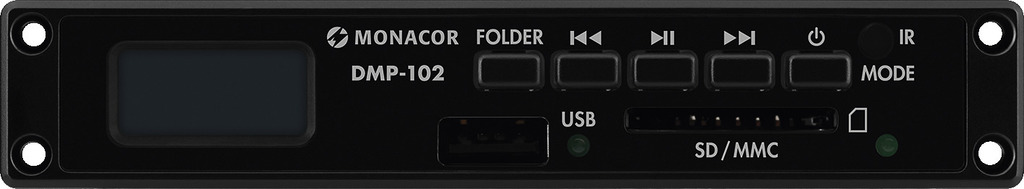

Compact MP3 player insertion module,
with USB port and SD/MMC card slot.
  • USB storage media can be connected directly
  • For SD/MMC cards (FAT16/FAT32), not included in the scope of delivery
  • Autostart function
  • Fast forward and reverse
  • Repeat function (repeat 1, repeat all)
  • Green backlit LCD

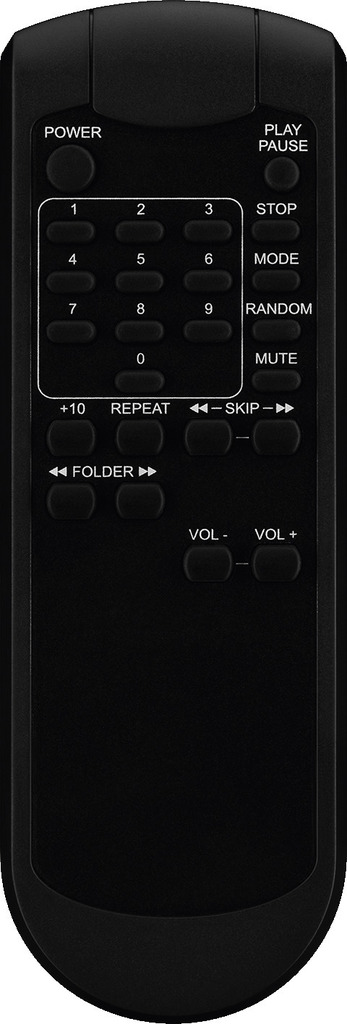

  • Supplied with infrared remote control
  • RCA cable DMP-12CC is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

About

Compact MP3 player insertion module,
with USB port and SD/MMC card slot.
  • USB storage media can be connected directly
  • For SD/MMC cards (FAT16/FAT32), not included in the scope of delivery
  • Autostart function
  • Fast forward and reverse
  • Repeat function (repeat 1, repeat all)
  • Green backlit LCD
  • Supplied with infrared remote control
  • RCA cable DMP-12CC is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Specifications

Description MP3 player insertion module
Media MP3, USB, SD, MMC
Frequency range 20-20,000 Hz
THD < 0.2%
Channel separation > 60 dB
S/N ratio > 75 dB
Output, analogue 500 mV
Power supply DC 12 V/150 mA
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 150 mA
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 22 x 58 mm
Weight 39 g
Connections 5-pin connector,

connection cable

Packaging dimensions (W x H x L) 0.07 x 0.06 x 0.165 m
Gross weight 0.165 kg
EAN code 4007754261981
Net weight 0.111 kg
