Order no.: 0102640

DT-107

P330

P520

P1430

Order no.: 0102640

DT-107

Hi-fi dome tweeter, 80 W, 8 Ω

Textile soft dome with inside damping
Highest linearity with good efficiency
Extra silky and brilliant sound
For any hi-fi application of high requirements

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi dome tweeter, 80 W, 8 Ω

Textile soft dome with inside damping
Highest linearity with good efficiency
Extra silky and brilliant sound
For any hi-fi application of high requirements

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

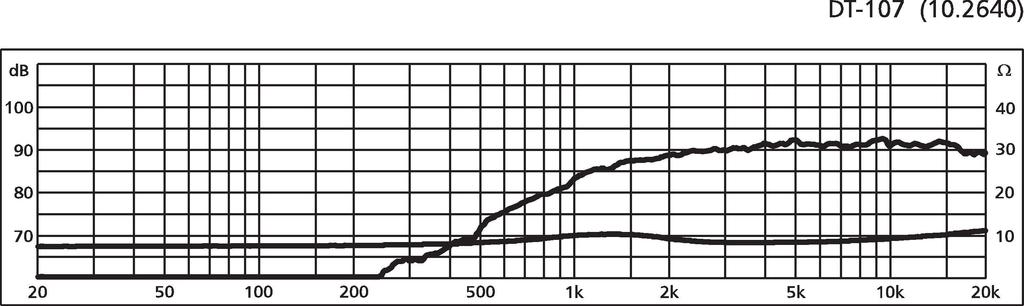

Frequency range	fx-22,000 Hz
Resonant frequency (fs)	1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	3,000 Hz
Power rating (RMS)	80 W
Peak music power output (MAX)	130 W
SPL	89 dB/W/m

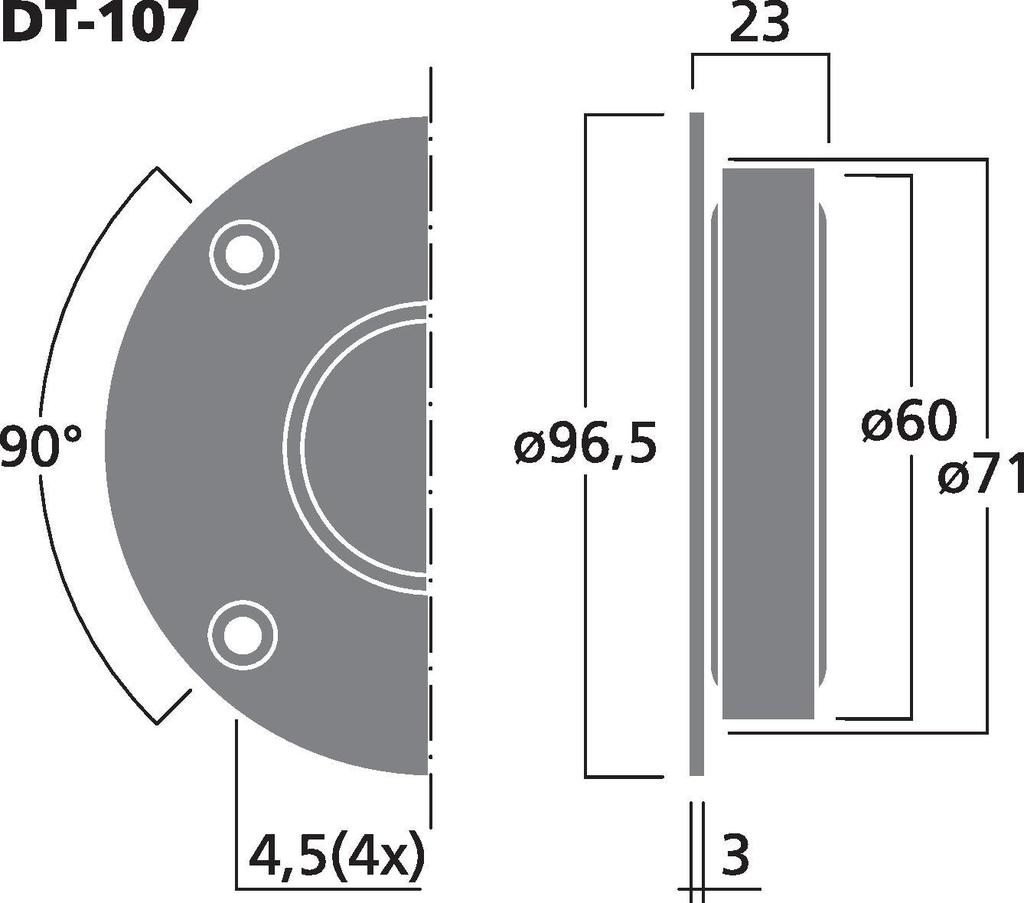

Voice coil diameter	Ø 25 mm
Magnet diameter	Ø 60 mm
Mounting cutout	Ø 71 mm
Mounting depth	23 mm
Dimensions	Ø 96.5 x 23 mm
Outside diameter	Ø 96.5 mm
Width	Ø 96.5 mm
Height	Ø 96.5 mm
Depth	23 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.27 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.105 x 0.04 x 0.105 m
Gross weight	0.305 kg
Net weight	0.27 kg

EAN code	4007754087505
Net weight	0.27 kg
