Order no.: 0105670

DT-140

Order no.: 0105670

DT-140

Hi-fi dome tweeter, 40 W, 4 Ω

25 mm (1") tweeter with silk dome
Consistent radiation pattern due to waveguide in combination with 5" to 6.5" bass-midrange speakers
Neodymium magnet system with heat sink
Very low stray magnetic field

HOBBY HIFI 01/2014

“The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi dome tweeter, 40 W, 4 Ω

25 mm (1") tweeter with silk dome
Consistent radiation pattern due to waveguide in combination with 5" to 6.5" bass-midrange speakers
Neodymium magnet system with heat sink
Very low stray magnetic field

HOBBY HIFI 01/2014

“The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable

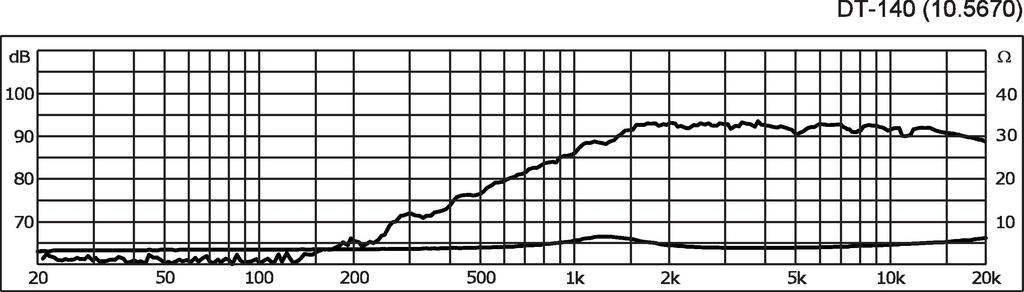

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating (RMS)	40 W
Peak music power output (MAX)	80 W
SPL	90 dB/W/m

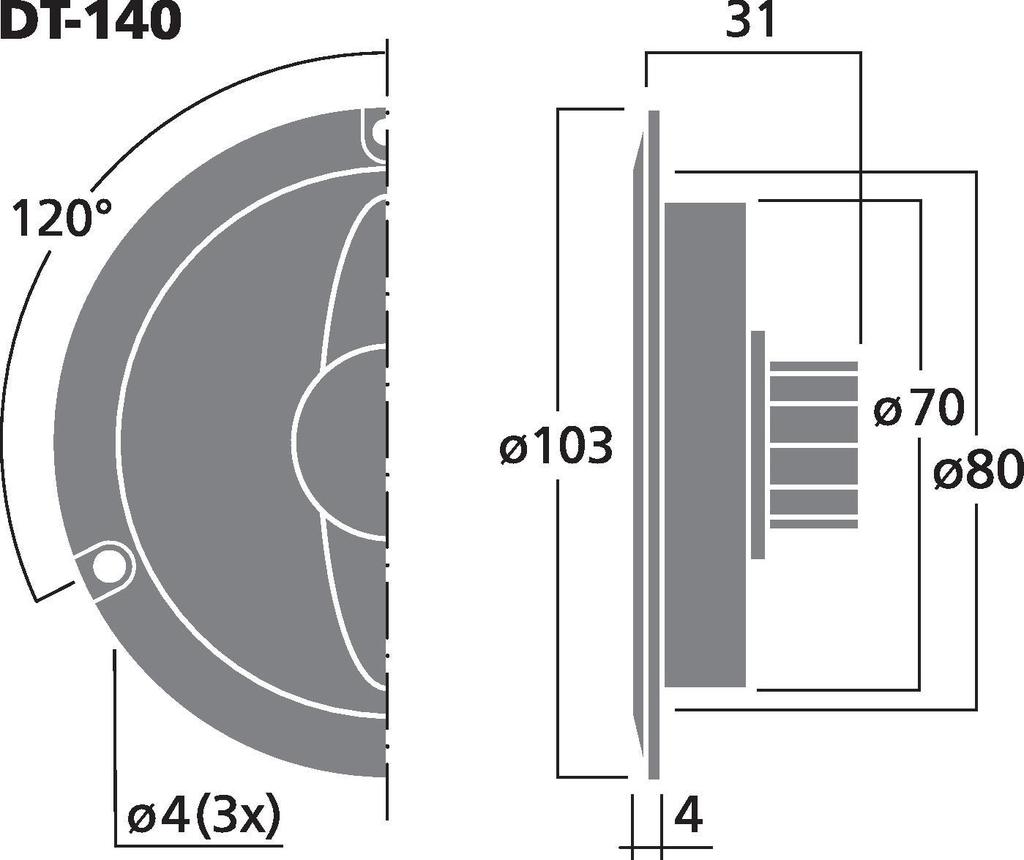

Voice coil diameter	Ø 25 mm
Magnet diameter	Ø 70 mm
Mounting cutout	Ø 80 mm
Mounting depth	31 mm
Dimensions	Ø 103 x 31 mm
Outside diameter	Ø 103 mm
Width	Ø 103 mm
Height	Ø 103 mm
Depth	31 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.093 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.11 x 0.043 x 0.11 m
Gross weight	0.122 kg
Net weight	0.093 kg
