Order no.: 0131410

DT-284

Order no.: 0131410

DT-284

The Tweeter for Perfect Car Hi-fi Applications:

DT-284 “The Dome”. This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinct and appealing design!

Pair of dome tweeters, 60 W, 4 Ω

28 mm silk cone
Aluminium voice coil
Neodymium magnet

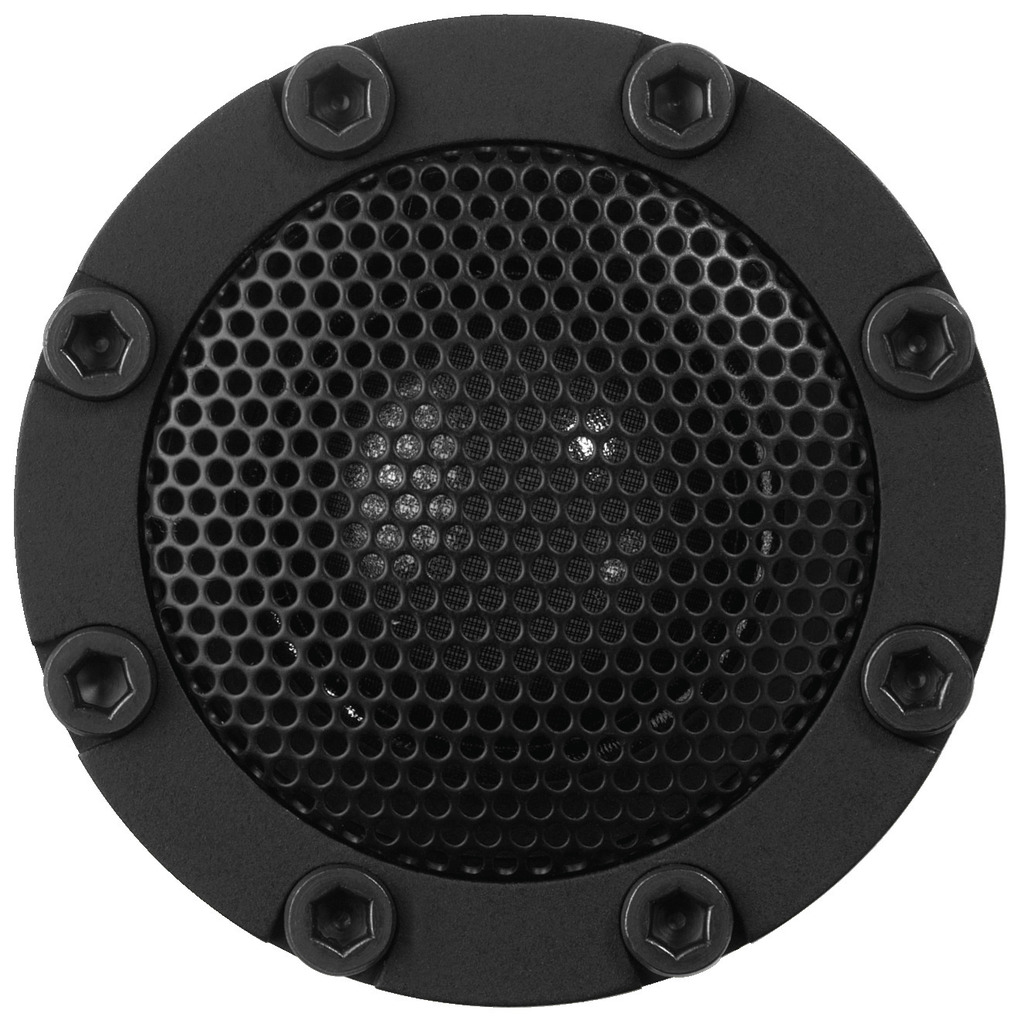

High-quality ABS housing with 8-hole screw connection
Perfect sound of extra low distortion
Highest level stability
Exceptionally long excursion

A crossover network is required for operation! Ideal: CDN-2X

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

The Tweeter for Perfect Car Hi-fi Applications:

Pair of dome tweeters, 60 W, 4 Ω

28 mm silk cone
Aluminium voice coil
Neodymium magnet
High-quality ABS housing with 8-hole screw connection
Perfect sound of extra low distortion
Highest level stability
Exceptionally long excursion

A crossover network is required for operation! Ideal: CDN-2X

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable

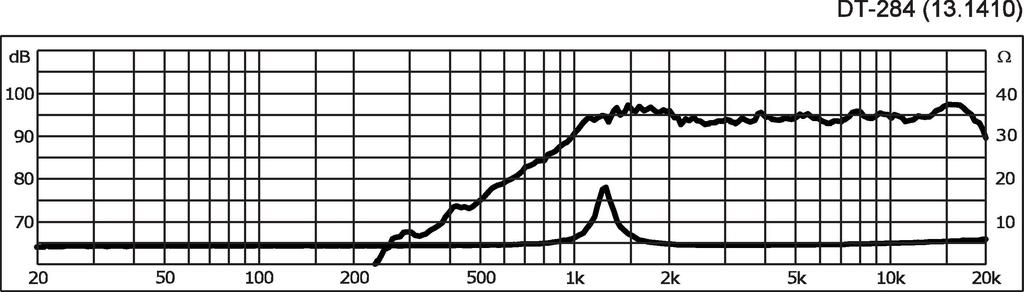

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1,300 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,000 Hz
Power rating (RMS)	60 W
Peak music power output (MAX)	100 W
SPL	91 dB/W/m

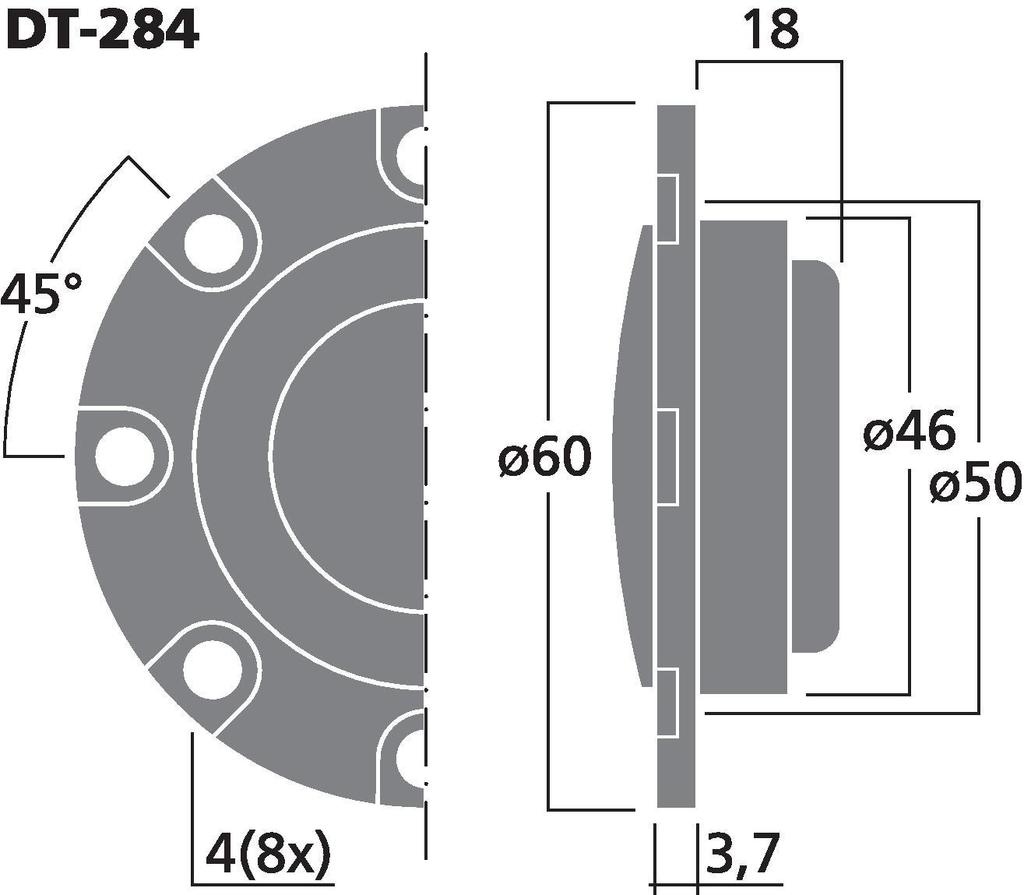

Voice coil diameter	Ø 28 mm
Magnet diameter	Ø 46 mm
Mounting cutout	Ø 50 mm
Mounting depth	18 mm
Dimensions	Ø 60 mm x 21.7 mm
Outside diameter	Ø 60 mm
Width	Ø 60 mm
Height	Ø 60 mm
Depth	21.7 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.18 kg
Packing unit	2
Type of speaker	28 mm
Packaging dimensions (W x H x L)	0.085 x 0.045 x 0.155 m
Gross weight	0.225 kg
Net weight	0.18 kg
