Order no.: 0103880

DT-99

P330 P490 P1430
Order no.: 0103880

DT-99

Hi-fi dome tweeter, 40 W, 8 Ω
  • Pure silk cone
  • Excellent radiation
  • Very typical sound pressure curve
  • For replacement purposes and hi-fi applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Hi-fi dome tweeter, 40 W, 8 Ω
  • Pure silk cone
  • Excellent radiation
  • Very typical sound pressure curve
  • For replacement purposes and hi-fi applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range fx-18,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 93 dB/W/m

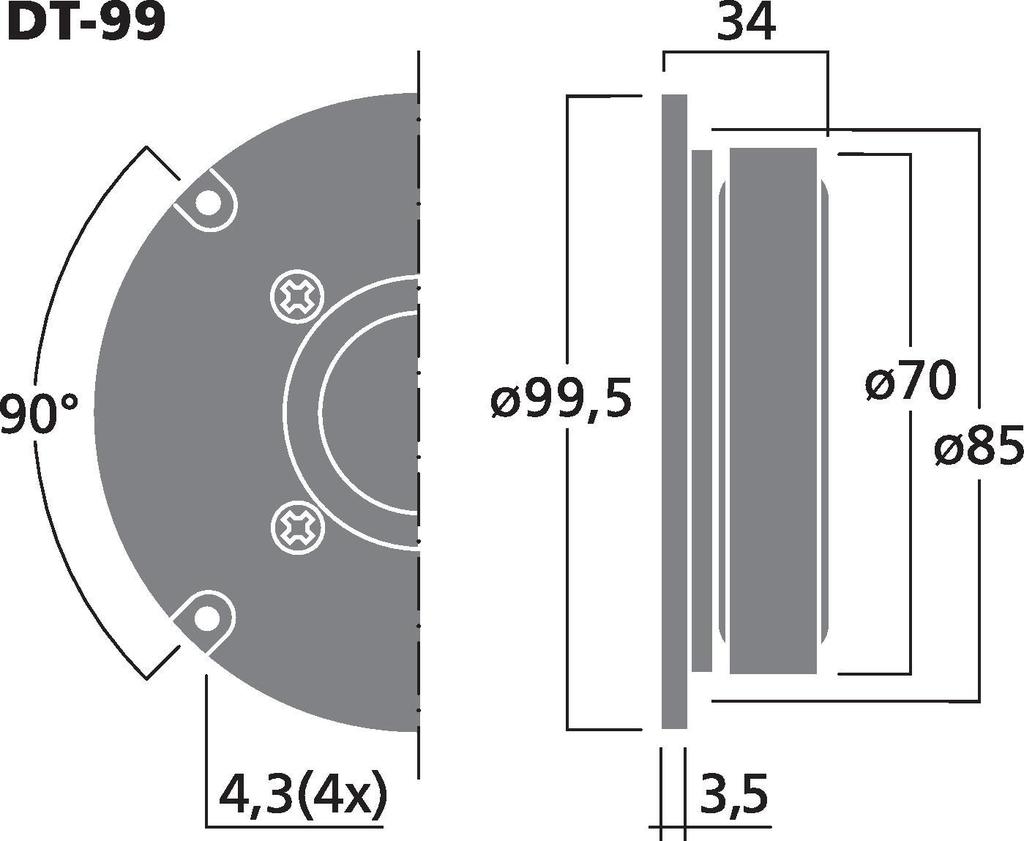

Voice coil diameter Ø 25 mm
Magnet diameter Ø 70 mm
Mounting cutout Ø 85 mm
Mounting depth 34 mm
Dimensions Ø 99.5 x 34 mm
Outside diameter Ø 99.5 mm
Width Ø 99.5 mm
Height Ø 99.5 mm
Depth 34 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.51 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.105 x 0.045 x 0.115 m
Gross weight 0.547 kg
Net weight 0.506 kg
EAN code 4007754146516
Net weight 0.506 kg

Downloads

Accessories for DT-99

Description:
speaker foam sealing tape
Type:
self-adhesive
Colour:
black
Order no.: 0122240
MDM-5
Speaker foam sealing tape, 5 x 150 cm
