Order no.: 0105320

DTM-104/4

P330

P500

Order no.: 0105320

DTM-104/4

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4)

Textile dome tweeter with Kapton voice coil former
Excellent radiation pattern due to waveguide
Very well-suited as a replacement for high-quality hi-fi speakers

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4)

Textile dome tweeter with Kapton voice coil former
Excellent radiation pattern due to waveguide
Very well-suited as a replacement for high-quality hi-fi speakers

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable

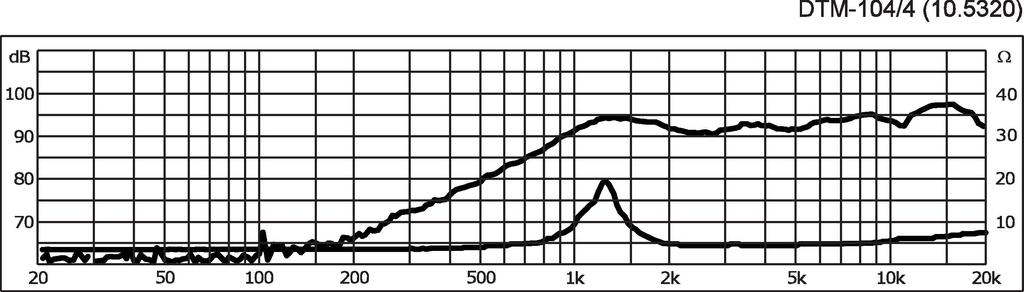

Frequency range	fx-19,000 Hz
Resonant frequency (fs)	1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating (RMS)	45 W
Peak music power output (MAX)	100 W
SPL	92 dB/W/m

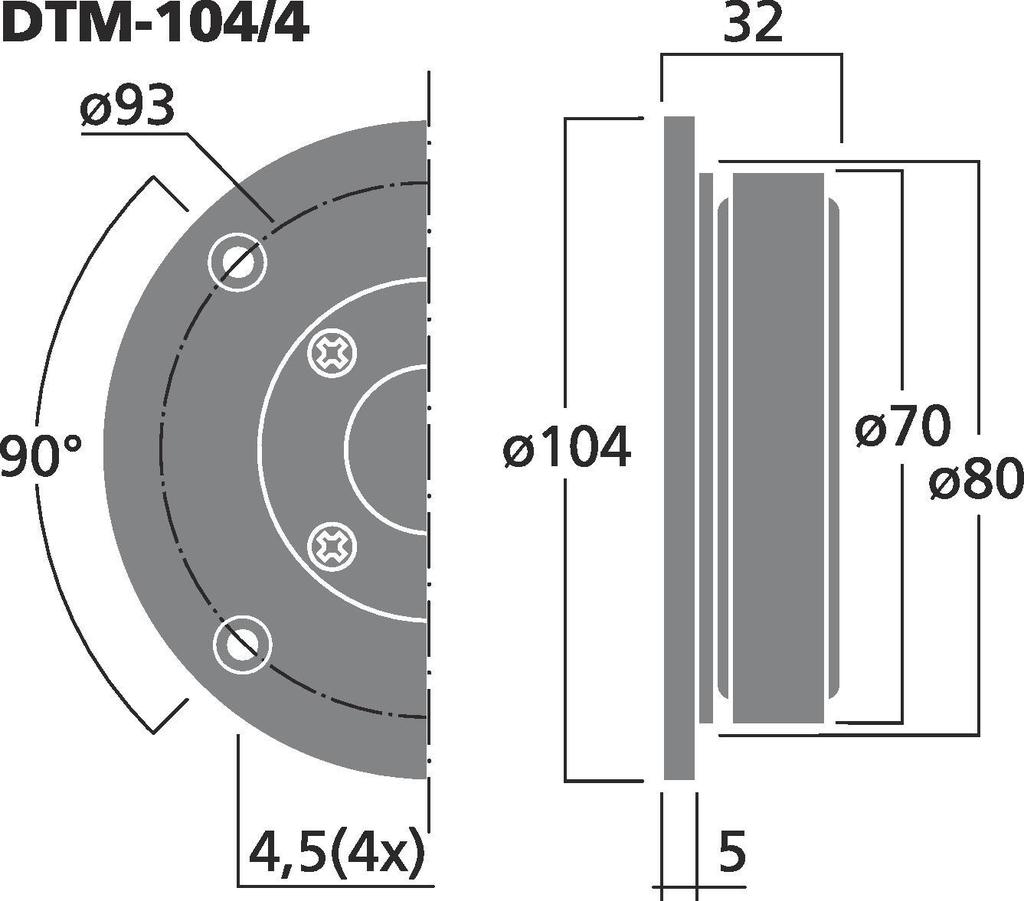

Voice coil diameter	Ø 25 mm
Magnet diameter	Ø 70 mm
Mounting cutout	Ø 80 mm
Mounting depth	29 mm
Dimensions	Ø 104 x 32 mm
Outside diameter	Ø 104 mm
Width	Ø 104 mm
Height	Ø 104 mm
Depth	32 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.54 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.11 x 0.042 x 0.11 m
Gross weight	0.562 kg
Net weight	0.54 kg

EAN code	4007754220940
Net weight	0.54 kg
