Order no.: 0232720

ECM-10/SW

Order no.: 0232720

ECM-10/SW

Built-in electret microphones

Particularly suitable for PA applications
Metal housing
Black (SW) or white (WS) cartridge cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Built-in electret microphones

Particularly suitable for PA applications
Metal housing
Black (SW) or white (WS) cartridge cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	built-in microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret
Audio frequency range	30-17,000 Hz
Nominal impedance	300 Ω
Sensitivity	2.3 mV/Pa
Max. sound pressure	110 dB
Power supply	DC 9-48 V, phantom power
Housing material	metal
Admiss. ambient temp.	0-40 °C

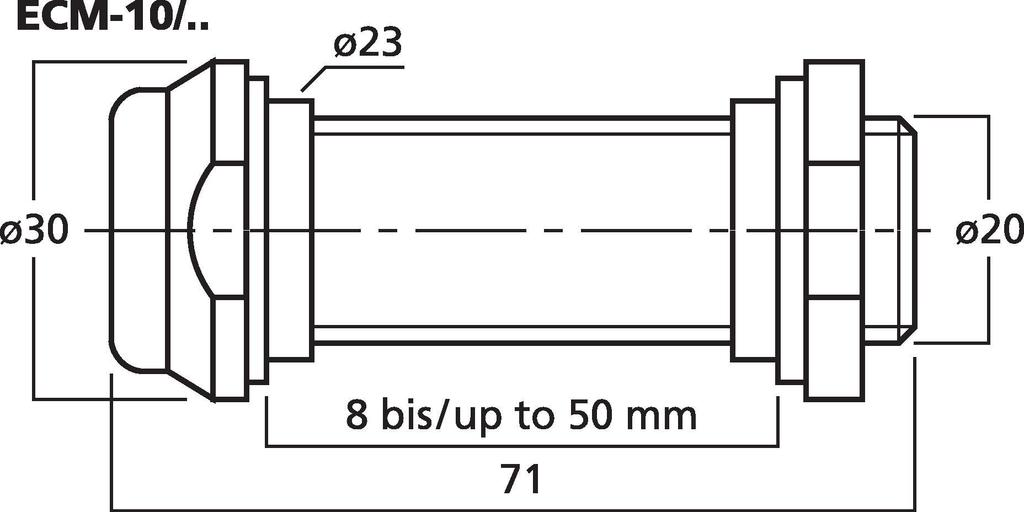

Dimensions	Ø 30 mm x 71 mm
Weight	92 g
Connection	XRL, bal.
Packaging dimensions (W x H x L)	0.07 x 0.03 x 0.03 m
Gross weight	0.165 kg
Net weight	0.092 kg

EAN code	4007754154528
Net weight	0.092 kg
