Order no.: 0161490

EDL-82/WS

P2000

Order no.: 0161490

EDL-82/WS

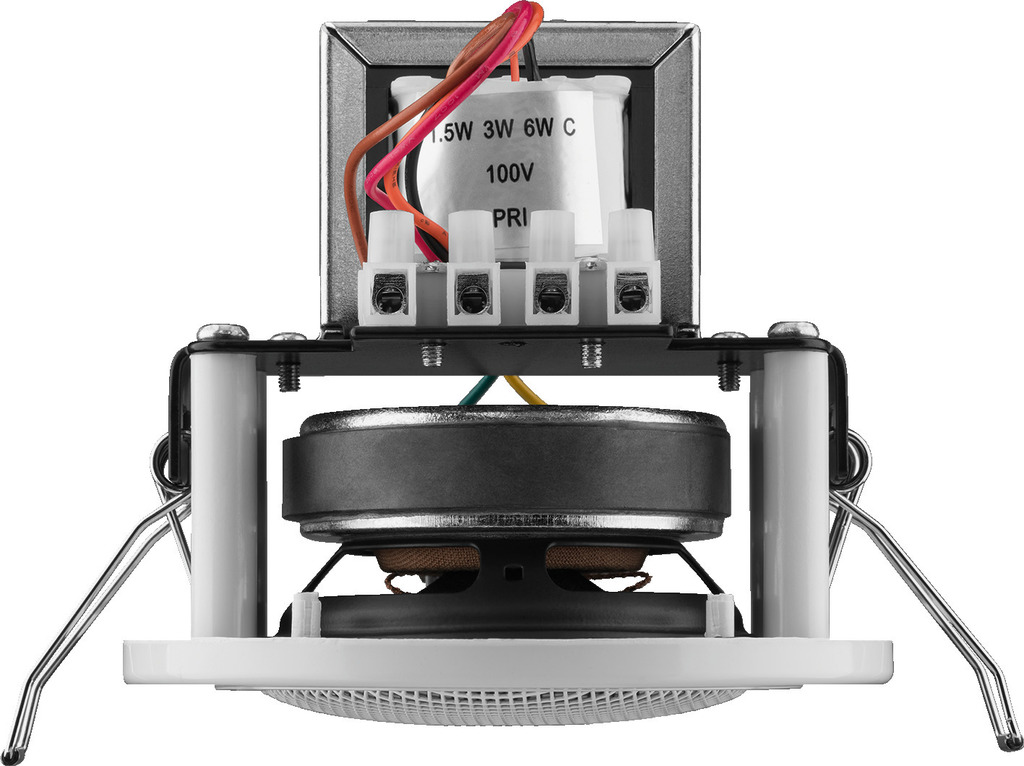

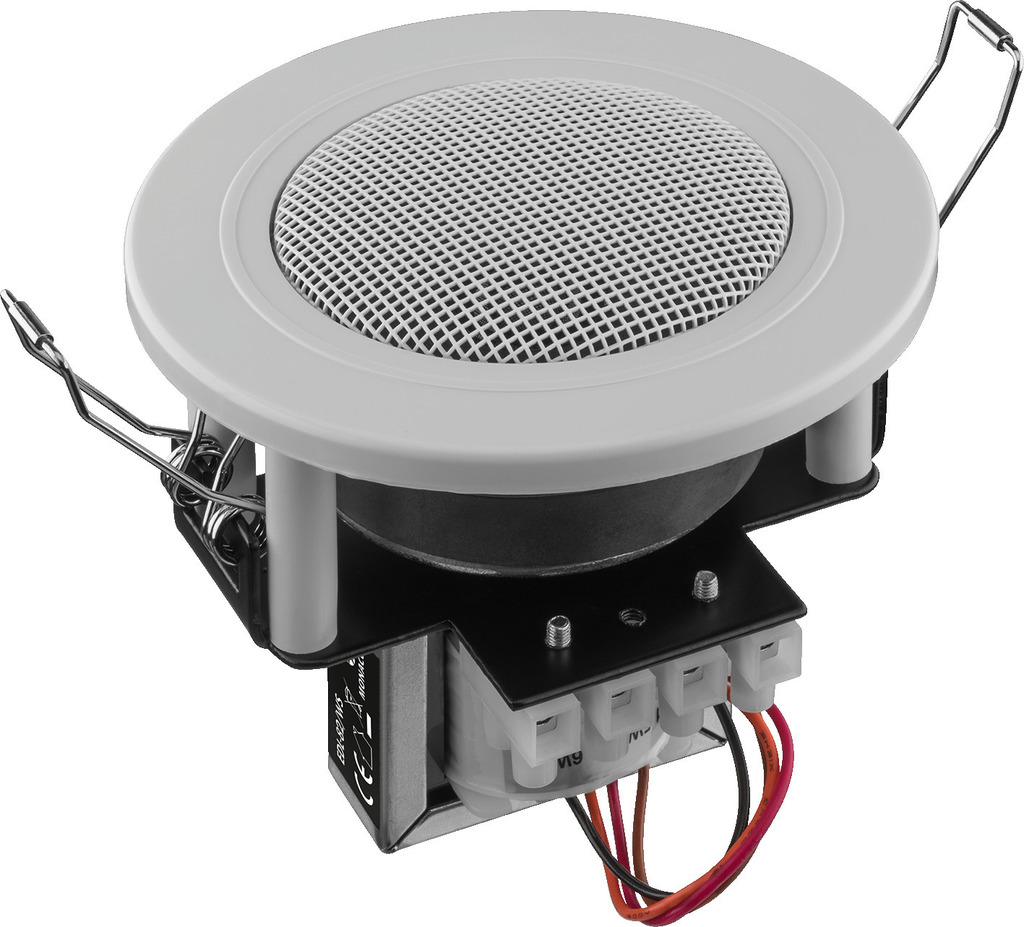

PA ceiling speaker

100 V transmission technology
White cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
For a ceiling thickness from 2 to 14 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker

100 V transmission technology
White cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
For a ceiling thickness from 2 to 14 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	200-20,000 Hz
Power rating (RMS)	6/3/1.5 W
SPL	86 dB/W/m

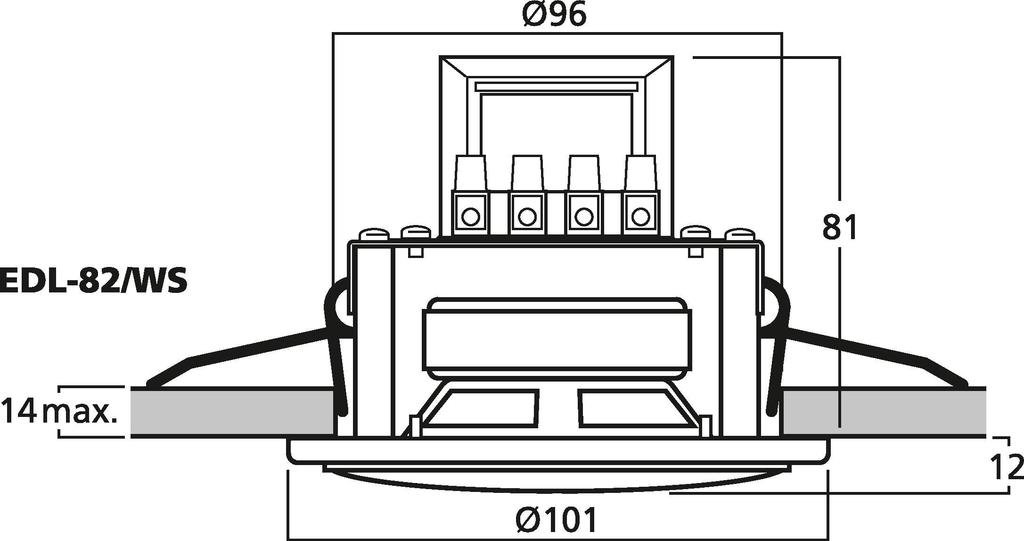

Mounting cutout	Ø 96 mm
Mounting depth	98 mm
Dimensions	Ø 100 mm
Outside diameter	Ø 100 mm
Width	Ø 100 mm
Height	Ø 100 mm
Depth	93 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	635 g
Packing unit	1
Type of speaker	75
Packaging dimensions (W x H x L)	0.11 x 0.115 x 0.11 m
Gross weight	0.696 kg
Net weight	0.64 kg

EAN code	4007754157079
Net weight	0.64 kg
