Order no.: 0162120

ESP-70/WS

Order no.: 0162120

PA wall speaker

100 V transmission technology

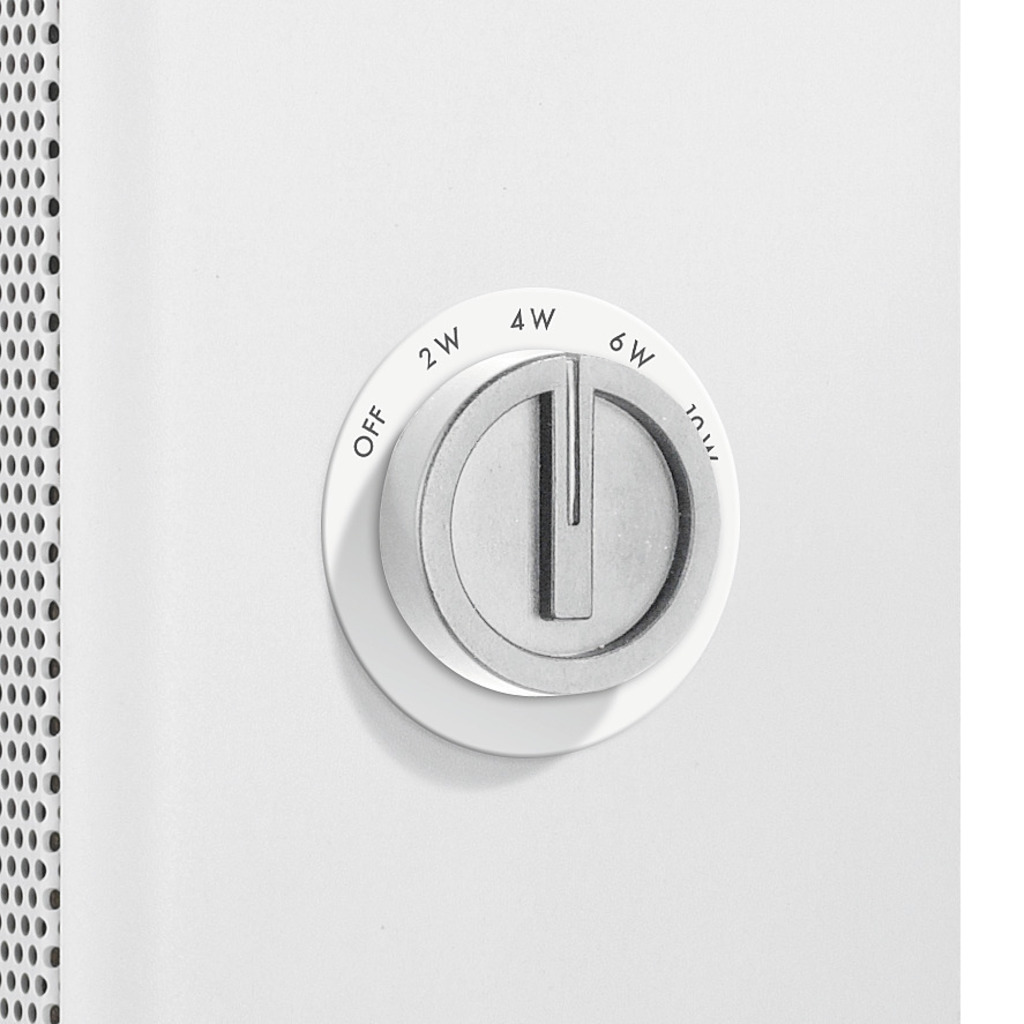

5-step rotary switch for 10/6/4/2 W/off
Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
Emergency priority relay
White wooden cabinet with protective metal grille
Easy wall mounting via supporting plate
Ball-proof according to DIN 18032, Part 3

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

PA wall speaker

100 V transmission technology
5-step rotary switch for 10/6/4/2 W/off
Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
Emergency priority relay
White wooden cabinet with protective metal grille
Easy wall mounting via supporting plate
Ball-proof according to DIN 18032, Part 3

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Active/passive	passive
Transmission technology	100 V
Total power rating	10 W
Power rating (RMS)	10/6/4/2 W

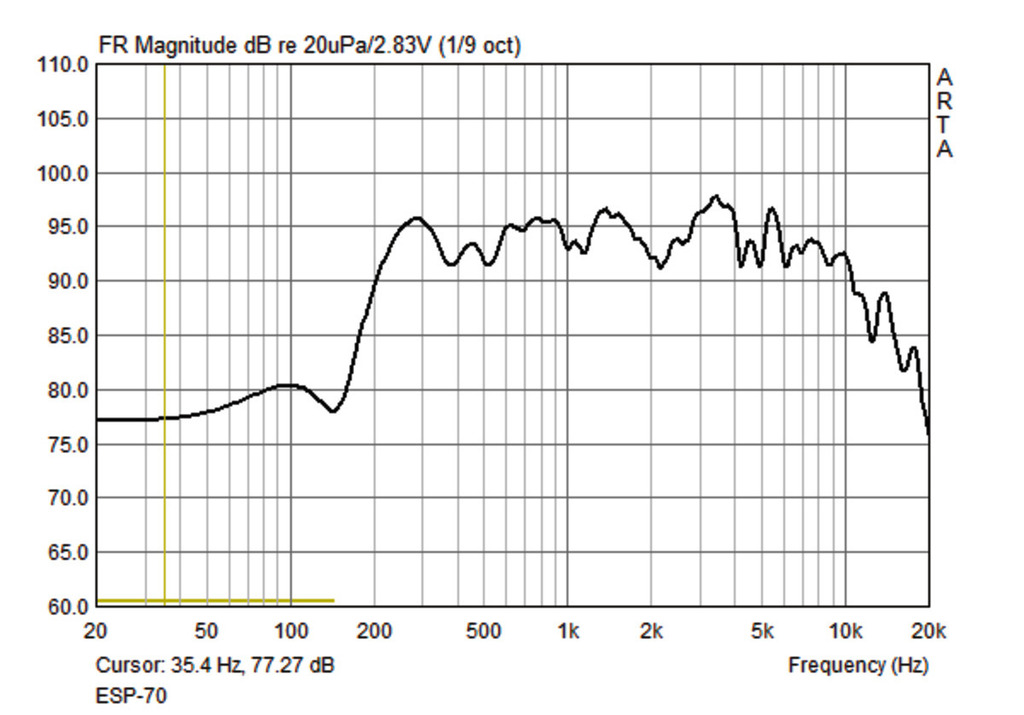

Frequency range	95-19,000 Hz
Number of speakers	1
Speaker size	16 cm (6.5")

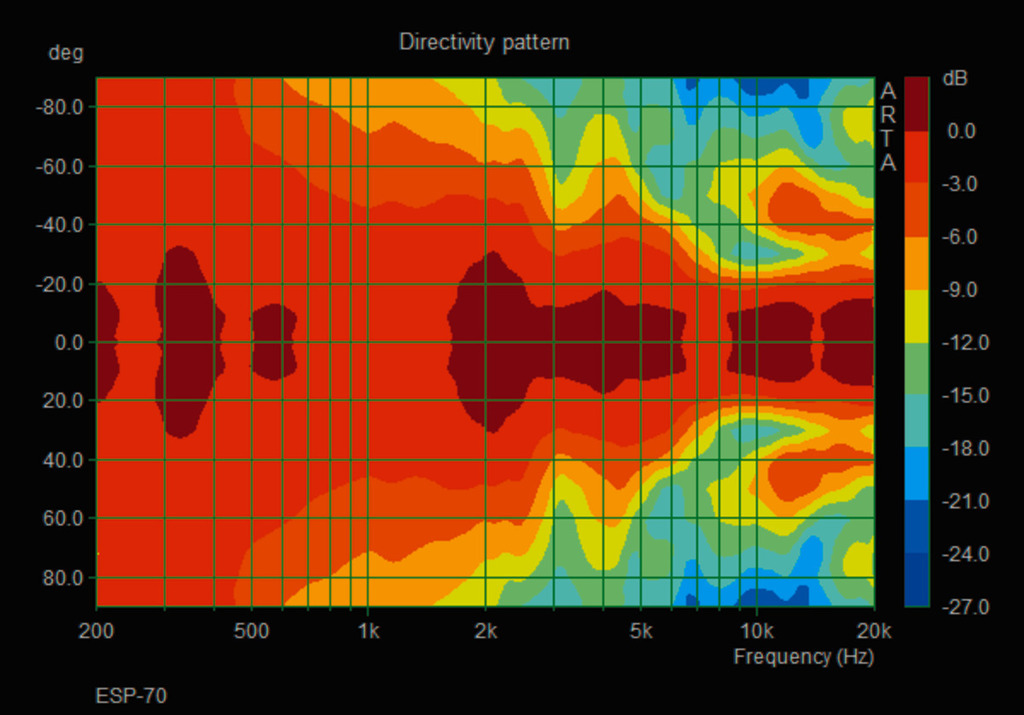

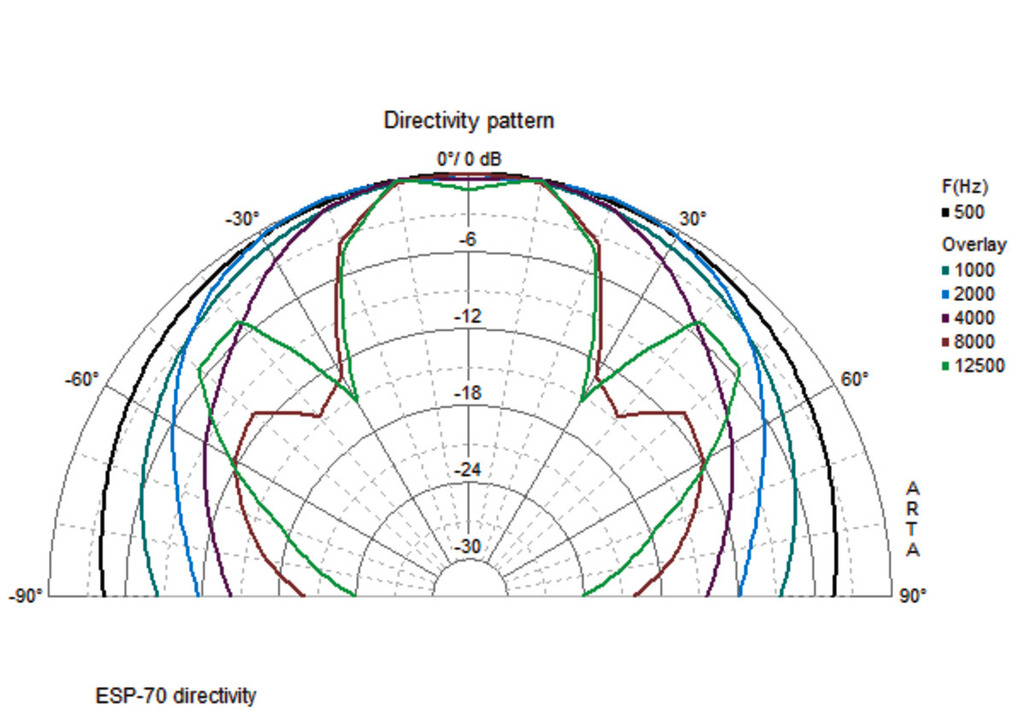

Radiation angle/beam angle	H: 120°/V: 120°
Radiation angle, horizontal	120°
Radiation angle, vertical	120°
Housing material	wood
Colour	white
Mounting device	mounting plate
Protected against ball rebound	yes
Admiss. ambient temp.	0-40 °C
Dimensions	300 x 200 x 90 mm
Width	300 mm
Height	200 mm
Depth	90 mm
Weight	2.3 kg
Inputs	screw terminals
Packaging dimensions (W x H x L)	0.11 x 0.23 x 0.32 m
Gross weight	2.58 kg
Net weight	2.38 kg
