Order no.: 0162170

ESP-8U

Order no.: 0162170

ESP-8U

PA wall and ceiling speaker for flush mounting
  • 100 V transmission technology via audio transformer with 3 power taps
  • Perfect sound presence for a powerful voice reproduction with a very high audibility
  • 20 cm speaker of very sensitivity (99 dB/W/m)

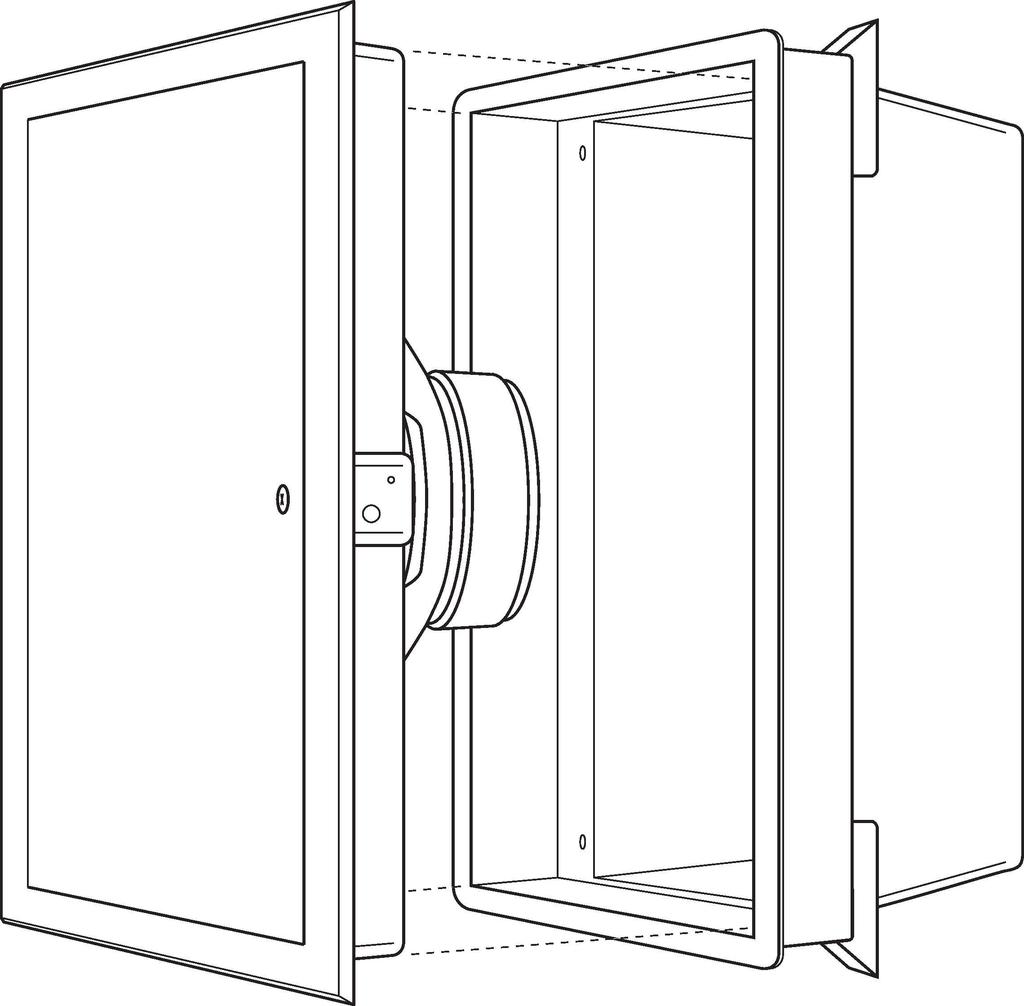

  • Plastic tray for flush mounting in walls or solid ceilings
  • Required hole in wall: approx. 242 x 242 x 100 mm
  • Metal front grille with plastic frame
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

PA wall and ceiling speaker for flush mounting
  • 100 V transmission technology via audio transformer with 3 power taps
  • Perfect sound presence for a powerful voice reproduction with a very high audibility
  • 20 cm speaker of very sensitivity (99 dB/W/m)
  • Plastic tray for flush mounting in walls or solid ceilings
  • Required hole in wall: approx. 242 x 242 x 100 mm
  • Metal front grille with plastic frame
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology 100 V
Frequency range 200-17,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 99 dB/W/m

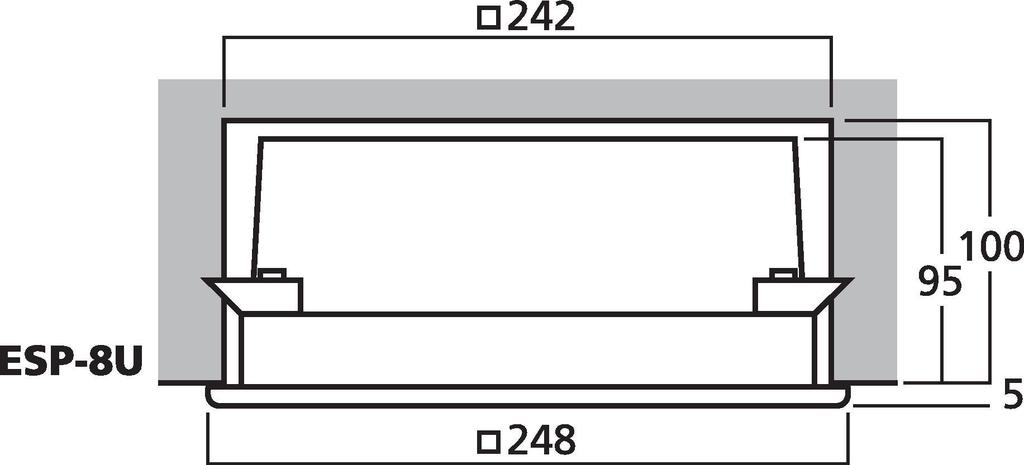

Mounting cutout 242 x 242 mm
Mounting depth 100 mm
Dimensions 248 x 248 x 100 mm
Width 248 mm
Height 248 mm
Depth 100 mm
Colour white/black
Admiss. ambient temp. 0-40 °C
Weight 1.7 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.255 x 0.115 x 0.255 m
Gross weight 1.86 kg
Net weight 1.69 kg
EAN code 4007754196283
Net weight 1.69 kg

Accessories for ESP-8U

Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
