Order no.: 0161300

ETS-215/WS

P2000

P1544

Order no.: 0161300

ETS-215/WS

PA column speaker,

in an extruded aluminium cabinet, with top and bottom plates of aluminium.

100 V transmission technology
5-step power selector switch
2 x M6 threaded bushing
Metal front grille

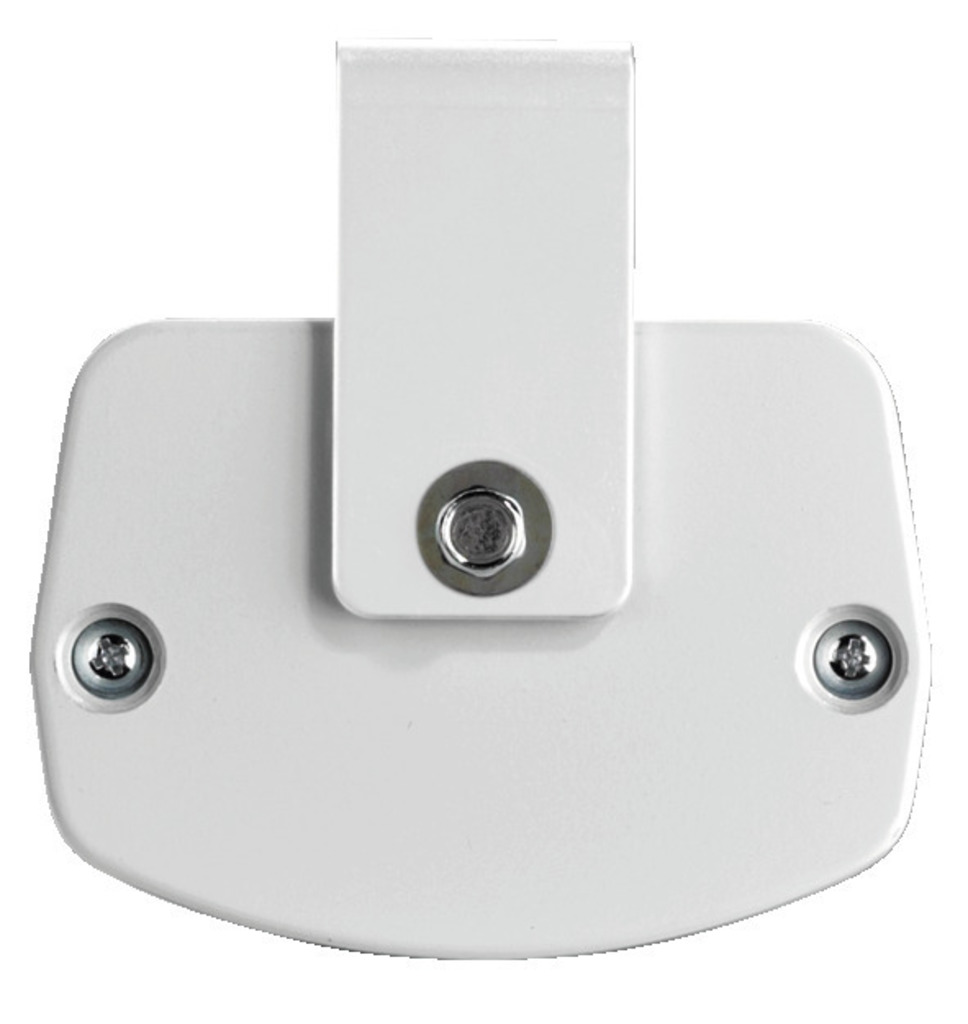

Supplied with mounting brackets
Connection via cable, 2 cores

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA column speaker,

in an extruded aluminium cabinet, with top and bottom plates of aluminium.

100 V transmission technology
5-step power selector switch
2 x M6 threaded bushing
Metal front grille
Supplied with mounting brackets
Connection via cable, 2 cores

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V
Total power rating	15 W
Power rating (RMS)	15/7.5/3.75/2 W
Frequency range	250-15,000 Hz
Number of speakers	4
Speaker size	7.5 cm (3")
SPL	92 dB/W/m
Radiation angle/beam angle	H: 150°/V: 40°
Radiation angle, horizontal	150°
Radiation angle, vertical	40°
Housing material	aluminium
Colour	white
Mounting device	mounting bracket
Admiss. ambient temp.	0-40 °C
Dimensions	105 x 405 x 85 mm
Width	105 mm
Height	405 mm
Depth	85 mm
Weight	2.5 kg
Inputs	cable connection
Packaging dimensions (W x H x L)	0.13 x 0.47 x 0.15 m
Gross weight	2.82 kg
Net weight	2.5 kg

EAN code	4007754151268
Net weight	2.5 kg

Downloads

Accessories for ETS-215/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
