Order no.: 0161310

ETS-230/WS

P2000

P1544

Order no.: 0161310

ETS-230/WS

Super Slimline Design

PA column speaker,

in an extruded aluminium cabinet, with top and bottom plates of aluminium.

100 V transmission technology
5-step power selector switch
2 x M6 threaded bushing
Metal front grille

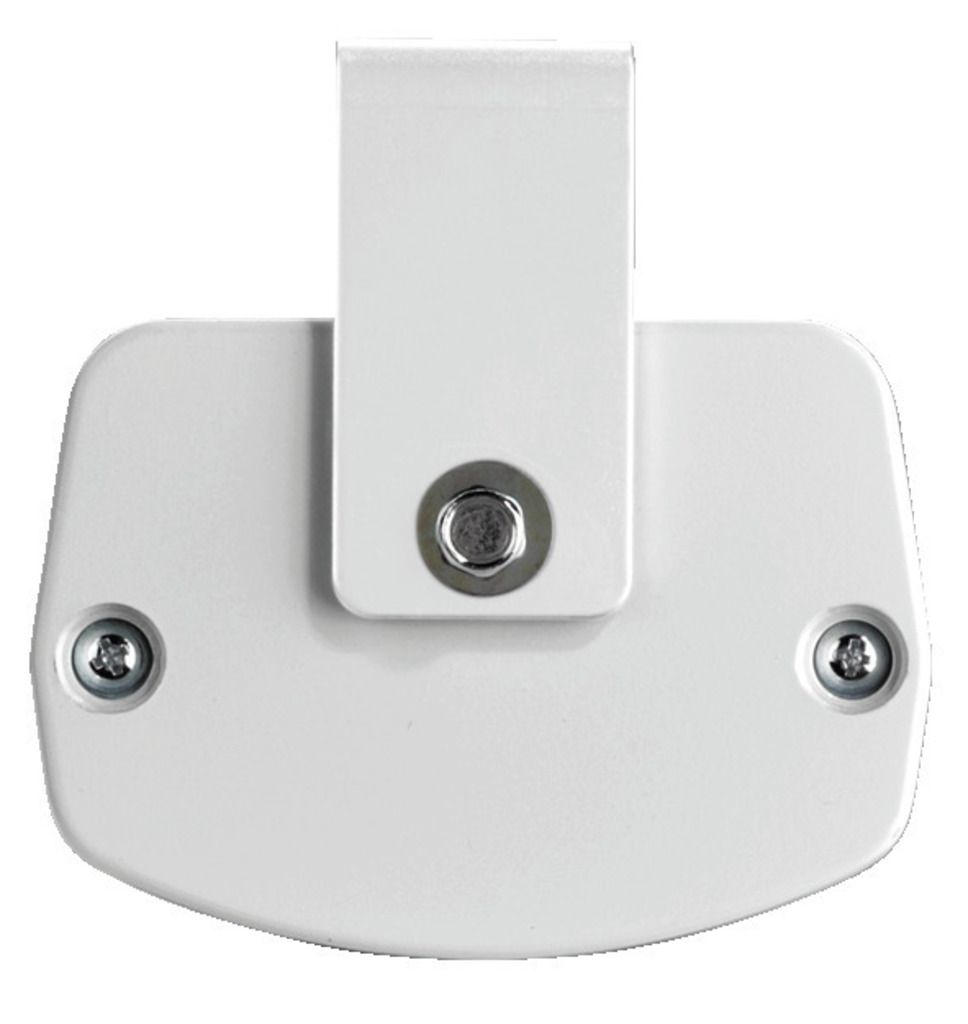

Supplied with mounting brackets
Connection via cable, 2 cores

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Super Slimline Design

PA column speaker,

in an extruded aluminium cabinet, with top and bottom plates of aluminium.

100 V transmission technology
5-step power selector switch
2 x M6 threaded bushing
Metal front grille
Supplied with mounting brackets
Connection via cable, 2 cores

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V
Total power rating	30 W
Power rating (RMS)	30/15/7.5/3.75 W
Frequency range	200-15,000 Hz
Number of speakers	8
Speaker size	7.5 cm (3")
SPL	95 dB/W/m
Radiation angle/beam angle	H: 150°/V: 30°
Radiation angle, horizontal	150°
Radiation angle, vertical	30°
Housing material	aluminium
Colour	white
Mounting device	mounting brackets, M6
Admiss. ambient temp.	0-40 °C
Dimensions	105 x 687 x 85 mm
Width	105 mm
Height	687 mm
Depth	85 mm
Weight	3.9 kg
Inputs	cable connection
Packaging dimensions (W x H x L)	0.15 x 0.13 x 0.76 m
Gross weight	4.365 kg
Net weight	3.91 kg

EAN code	4007754151275
Net weight	3.91 kg
