Order no.: 1001154

H1-9040P

PA mid-high range horn

Durable reinforced polymer horn
25 mm (1") flange connection with 2 x M6 screw connection (hole spacing: 76 mm)
Recommended minimum crossover frequency: 1.5 kHz

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

About

PA mid-high range horn

Durable reinforced polymer horn
25 mm (1") flange connection with 2 x M6 screw connection (hole spacing: 76 mm)
Recommended minimum crossover frequency: 1.5 kHz

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Description	exponential horn
Material	polymer (ABS)
Frequency range	700-20,000 Hz
Crossover frequency	1.5 kHz

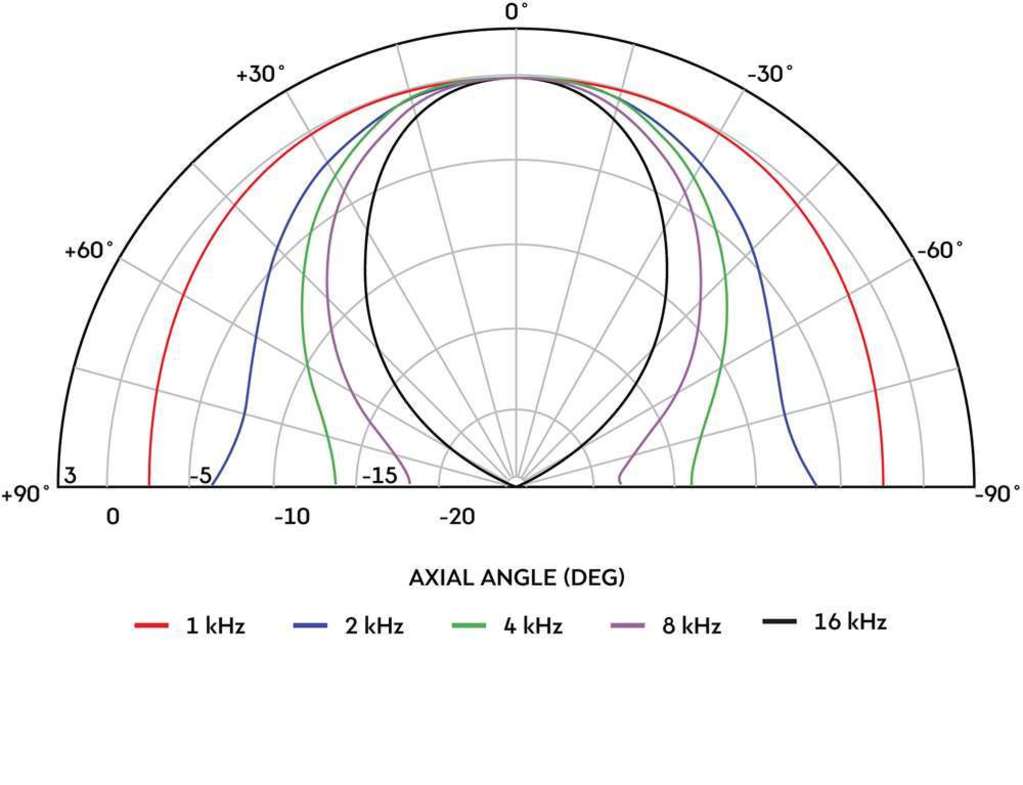

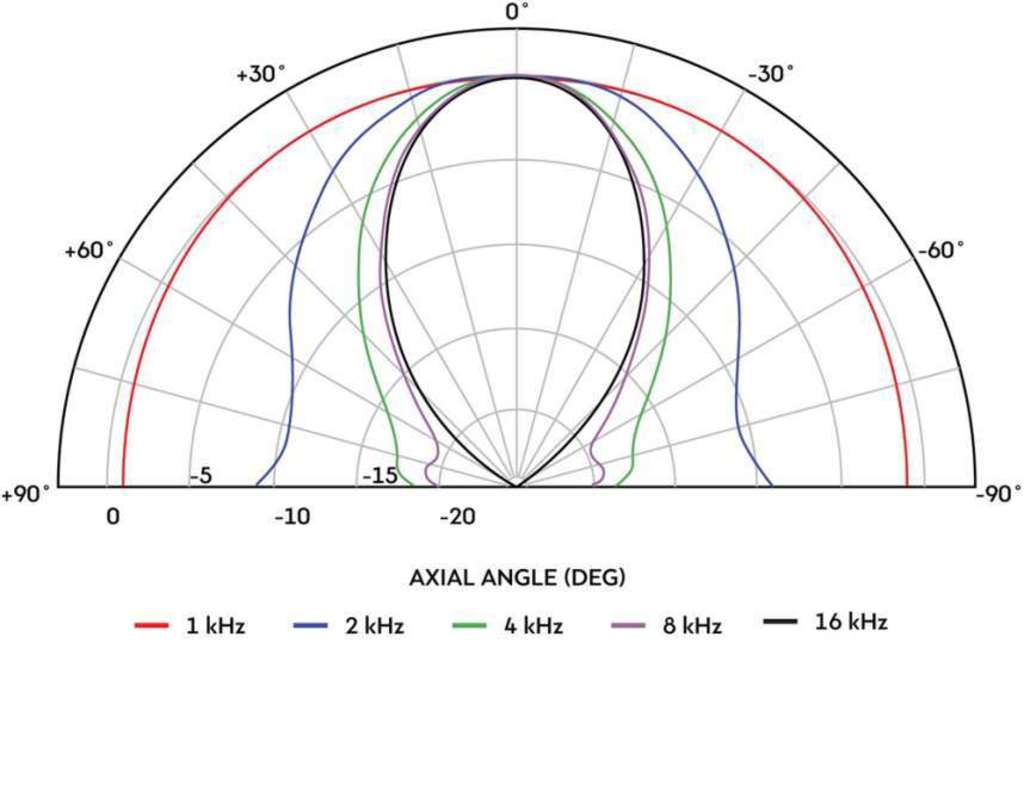

Radiation angle (vert./hor.)	90°/40°
Radiation angle, vertical	40°
Radiation angle, horizontal	90°
Suitable outlet	Ø 25.1 mm
Mounting cutout	260 x 165 mm
Mounting depth	208 mm
Dimensions	318 x 199 x 208 mm
Height	199 mm
Width	318 mm
Depth	208 mm
Weight	0.66 kg

EAN code	4007754425833
Net weight	0.66 kg
