Order no.: 0232160

HSE-100

Order no.: 0232160

HSE-100

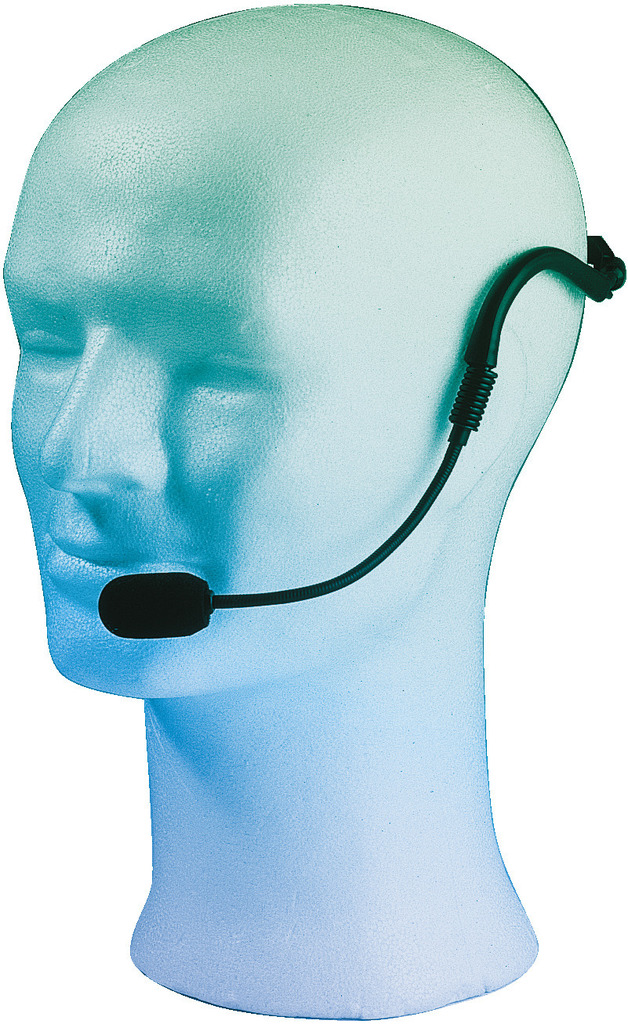

Headband microphone

High-quality back electret cartridge
Very linear frequency response, especially resistant to external sound due to its supercardioid polar pattern with high back suppression
A respective power supply is required for operation
Bare cable ends

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Headband microphone

High-quality back electret cartridge
Very linear frequency response, especially resistant to external sound due to its supercardioid polar pattern with high back suppression
A respective power supply is required for operation
Bare cable ends

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	headband microphone
Transmission method	cable
Polar pattern	supercardioid
System	back electret
Audio frequency range	20-20,000 Hz
Nominal impedance	3 kΩ
Sensitivity	7 mV/Pa
Max. sound pressure	120 dB
Power supply	DC 1.3-20 V
Admiss. ambient temp.	0-40 °C
Weight	60 g
Connection	open cable ends
Packaging dimensions (W x H x L)	0.175 x 0.055 x 0.215 m
Gross weight	0.2 kg
Net weight	0.06 kg

EAN code	4007754113273
Net weight	0.06 kg
