Order no.: 0236420

HSE-132/SK

Order no.: 0236420

HSE-132/SK

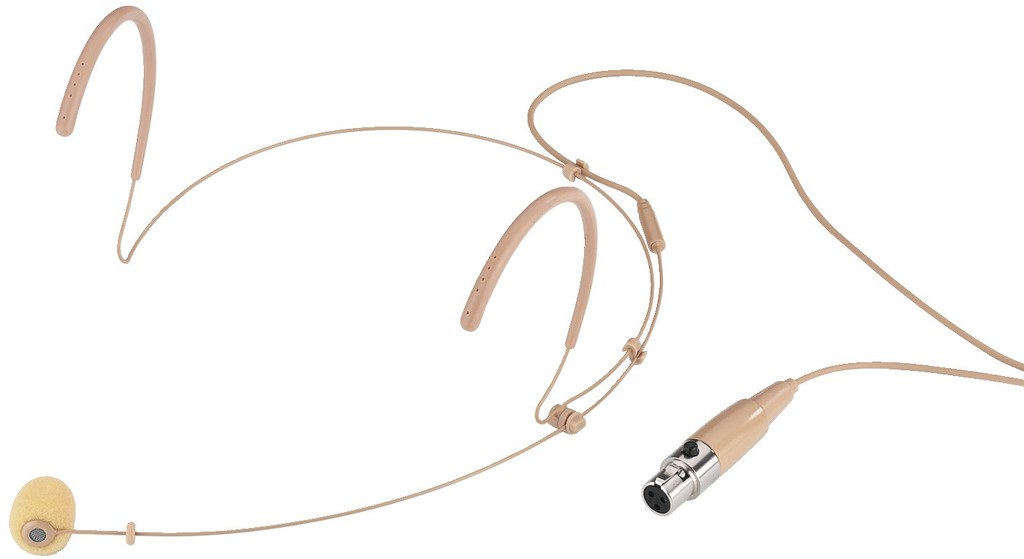

Ultra-light headband microphone
  • Back electret microphone cartridge
  • Cardioid polar pattern
  • 3-pole mini XLR inline jack
  • Cartridge arm of adjustable length
  • Compatible with pocket transmitters TXS-...HSE with 3-pole mini XLR connection
  • External power supply, e.g. via phantom power supply adapter EMA-1 or EMA-300P
  • Microphone windshield
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Ultra-light headband microphone
  • Back electret microphone cartridge
  • Cardioid polar pattern
  • 3-pole mini XLR inline jack
  • Cartridge arm of adjustable length
  • Compatible with pocket transmitters TXS-...HSE with 3-pole mini XLR connection
  • External power supply, e.g. via phantom power supply adapter EMA-1 or EMA-300P
  • Microphone windshield
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description headband microphone
Transmission method cable
Polar pattern cardioid
System back electret
Audio frequency range 50-16,000 Hz
Nominal impedance 2 kΩ
Sensitivity 5.6 mV/Pa
Max. sound pressure 130 dB
Power supply DC 1.5-9 V
Admiss. ambient temp. 0-40 °C
Weight 17 g
Connection 3-pole mini XLR
Packaging dimensions (W x H x L) 0.065 x 0.16 x 0.155 m
Gross weight 0.096 kg
Net weight 0.017 kg
EAN code 4007754241884
Net weight 0.017 kg
