Order no.: 0100190

HT-30

P500

P1430

Order no.: 0100190

HT-30

Miniature PA horn tweeter, 50 W, 8 Ω

Linear and wide bandwidth reproduction
High power capability due to ferrofluid

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Miniature PA horn tweeter, 50 W, 8 Ω

Linear and wide bandwidth reproduction
High power capability due to ferrofluid

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

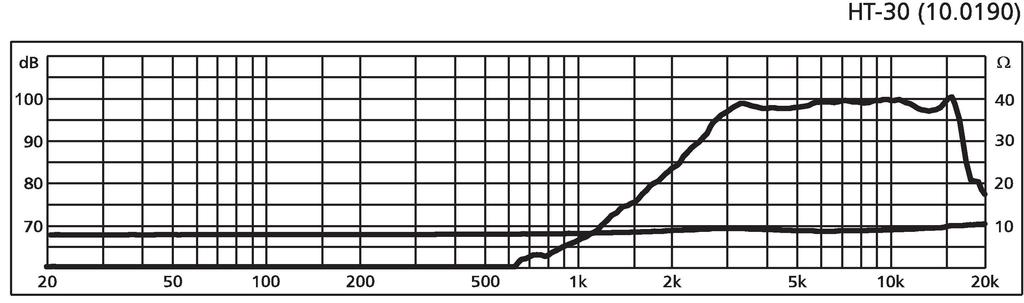

Frequency range	fx-20 kHz
Resonant frequency (fs)	2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	5 kHz
Power rating (RMS)	50 W
Peak music power output (MAX)	100 W
SPL	98 dB/W/m

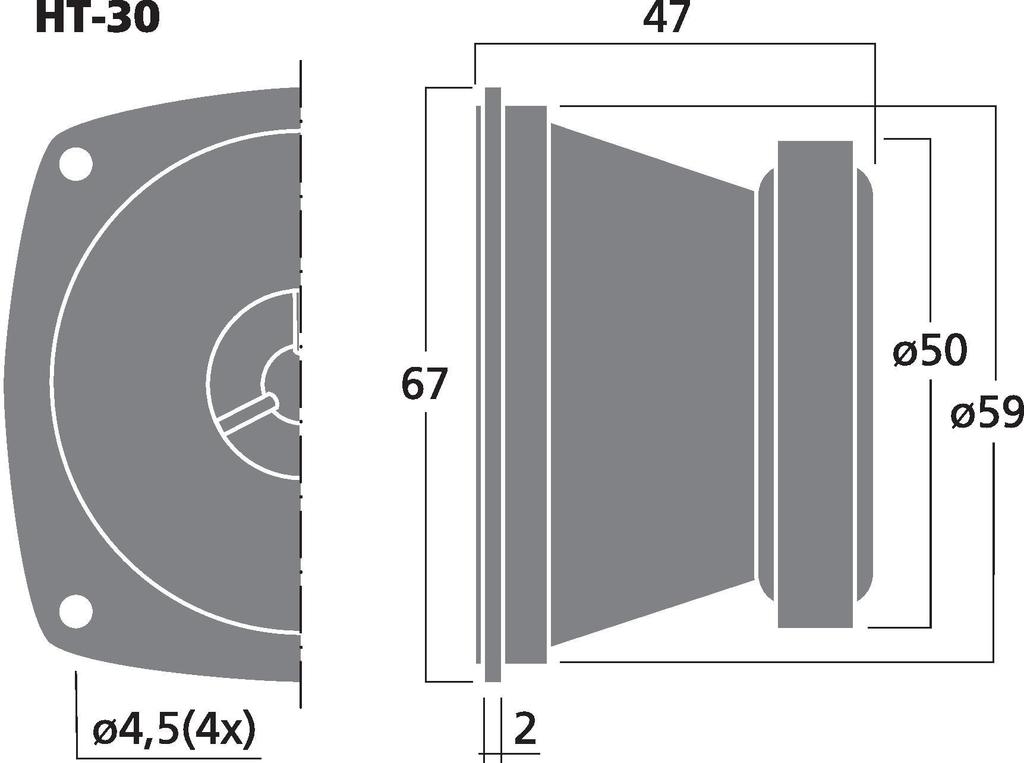

Voice coil diameter	Ø 12 mm
Magnet diameter	Ø 50 mm
Mounting cutout	Ø 59 mm
Mounting depth	45 mm
Dimensions	67 x 67 x 47 mm
Width	67 mm
Height	67 mm
Depth	47 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.18 kg
Packing unit	1
Packaging dimensions (W x H x L)	0.07 x 0.055 x 0.07 m
Gross weight	0.195 kg
Net weight	0.18 kg

EAN code	4007754008937
Net weight	0.18 kg

Downloads

Accessories for HT-30

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Description:
wood screws

Type:
hexagon socket, self-cutting

Colour:
black

Order no.: 0126430

MZF-8614

Hexagon socket wood screws
