Order no.: 0173350

M-32CD

Order no.: 0173350

M-32CD

CD player module,
with anti-shock system and MP3 reproduction.
  • Slot-in mechanism
  • USB port for external storage media
  • SD/MMC card slot for SD cards up to 32 GB, available at option
  • Random play, repeat function
  • Single play function
  • Track programming
  • Connection for foot switch for remote control play/pause function

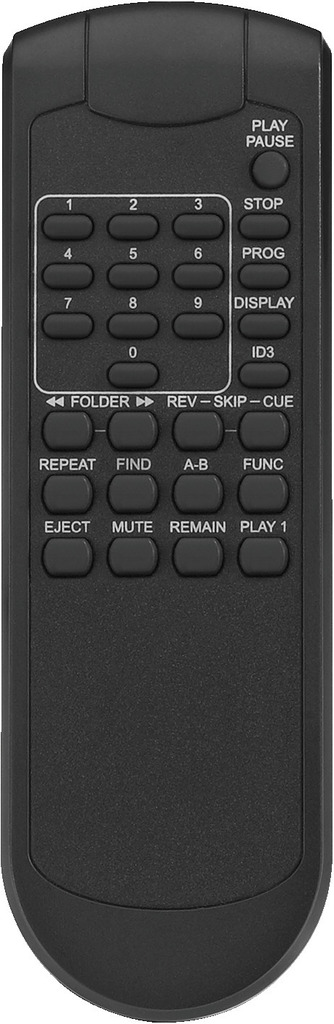

  • Supplied with remote control
  • Mounting cutout: 155 x 50 x 150 mm
  • Audio CD/CD-R/CD-RW/MP3 CD
  • RCA connection cable DMP-12CC is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

About

CD player module,
with anti-shock system and MP3 reproduction.
  • Slot-in mechanism
  • USB port for external storage media
  • SD/MMC card slot for SD cards up to 32 GB, available at option
  • Random play, repeat function
  • Single play function
  • Track programming
  • Connection for foot switch for remote control play/pause function
  • Supplied with remote control
  • Mounting cutout: 155 x 50 x 150 mm
  • Audio CD/CD-R/CD-RW/MP3 CD
  • RCA connection cable DMP-12CC is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Specifications

Description CD player module
Media CD, MP3, USB, SD (MMC, SD, SDHC)
Frequency range 20-20,000 Hz
THD < 0.1%
Channel separation > 60 dB
S/N ratio > 70 dB
Output, analogue 1.2 V
Power supply DC 12 V/800 mA
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 800 mA
Admiss. ambient temp. 0-40 °C
Dimensions 174 x 52 x 160 mm
Weight 1.145 kg
Connections connection cable
Packaging dimensions (W x H x L) 0.215 x 0.22 x 0.11 m
Gross weight 1.31 kg
EAN code 4007754221749
Net weight 1.145 kg

Accessories for M-32CD

Description:
momentary action foot pedal
Switching function:
push = on
Colour/colour coding:
red/black
Order no.: 0010270
Momentary action foot pedal
Description:
momentary action foot pedal
Switching function:
push = on
Colour/colour coding:
red/black
Order no.: 0010290
Momentary action foot pedal
Category:
switch-mode power supply
Input voltage:
˜ 100-240 V/50-60 Hz/250 mA
Output voltage:
DC 12 V
Order no.: 0273210
Switch-mode power supply, DC 12 V/1 A
