Order no.: 0100240

MHD-55

P1430 P455 P340 P278
Order no.: 0100240

MHD-55

PA horn tweeter, 30 W, 8 Ω
  • Plastic version
  • Good efficiency
  • Wide bandwidth, suitable for general PA applications
  • Replacement voice coils are available at option (MHD-1255/VC)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

PA horn tweeter, 30 W, 8 Ω
  • Plastic version
  • Good efficiency
  • Wide bandwidth, suitable for general PA applications
  • Replacement voice coils are available at option (MHD-1255/VC)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

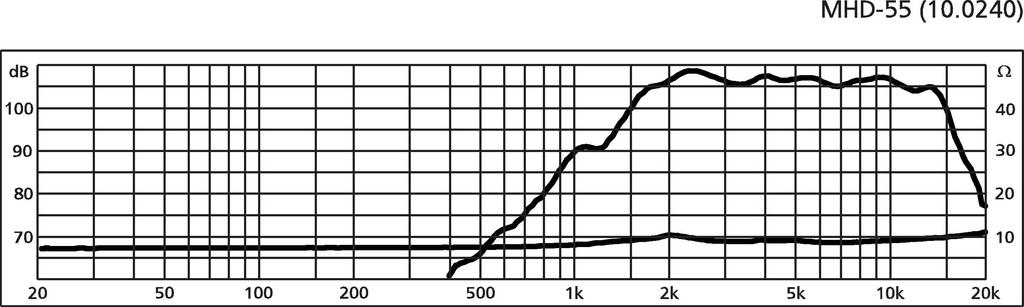

Frequency range fx-15 kHz
Resonant frequency (fs) 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 55 W
SPL 103 dB/W/m
Voice coil diameter Ø 24.6 mm
Magnet diameter Ø 80 mm

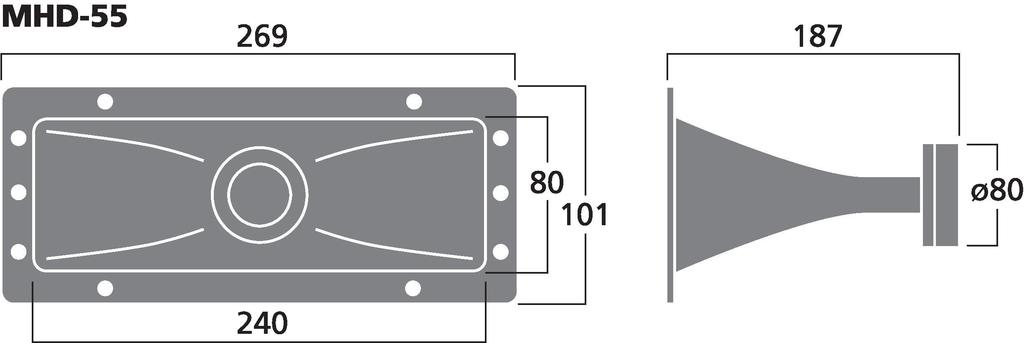

Mounting cutout 240 x 80 mm
Mounting depth 187 mm
Dimensions 269 x 101 x 187 mm
Width 269 mm
Height 101 mm
Depth 187 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.88 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.2 x 0.11 x 0.275 m
Gross weight 1.08 kg
Net weight 0.88 kg
EAN code 4007754013740
Net weight 0.88 kg
Replacement voice coil MHD-1255/VC

Downloads

Accessories for MHD-55

General Information:
2-way
Output impedance:
8 Ω (bass also 4 Ω)
Crossover frequency:
3 kHz (B = 4 Ω: 1.7 kHz)
Order no.: 0126460
DN-2618P
2-way crossover network for 8 Ω
Login
For:
MHD-55, MHD-120
Total power rating:
55 W
Power rating (RMS):
30 W
Order no.: 0121740

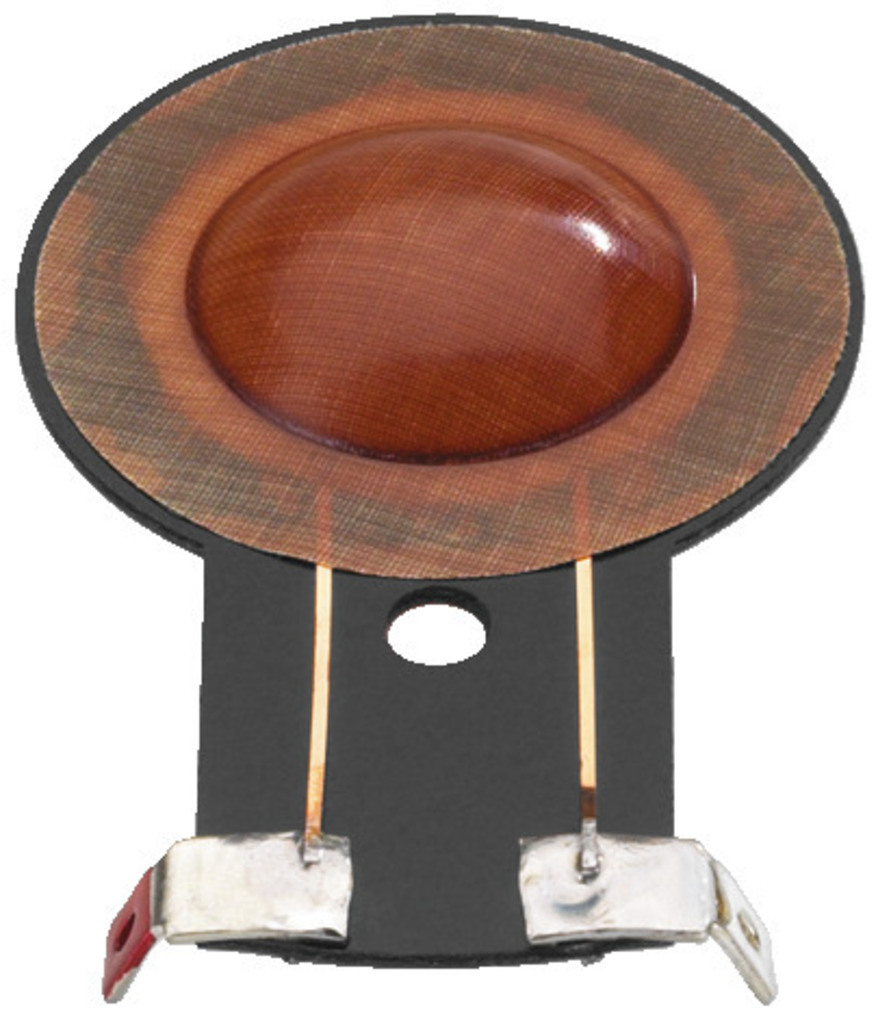

MHD-1255/VC
Replacement voice coil for MHD-55 and MHD-120
Login
Description:
recessed head wood screws
Type:
self-cutting
Colour:
black
Order no.: 0128730
MZF-4018
Recessed head wood screws
Login
