About
Piezo tweeter
- Compact rectangular design
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Specifications
| Impedance (Z) | > 1,000 Ω |
| Transmission technology | cable |
| Frequency range | 3,000-20,000 Hz |
| Power rating (RMS) | 60 W |
| Peak music power output (MAX) |
115 W (8 Ω system) 225 W (4 Ω system) |
| SPL | 91 dB/W/m |
| Max. voltage | ~ 30 V |

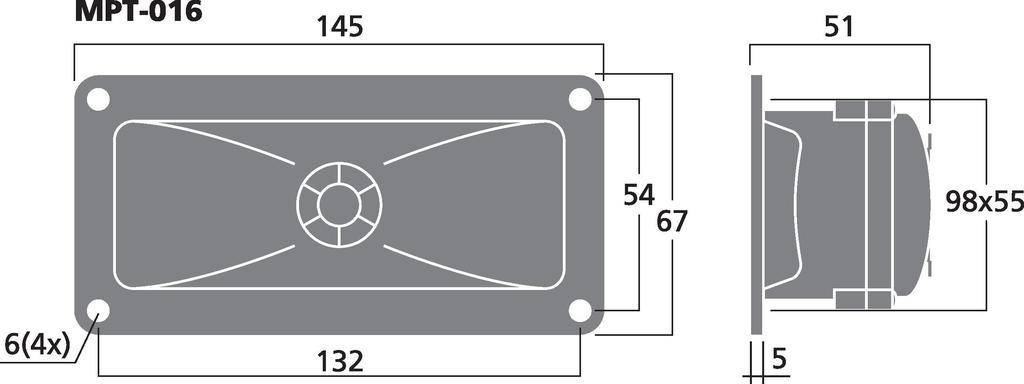

| Mounting cutout | 98 x 55 mm |
| Mounting depth | 50 mm |
| Dimensions | 145 x 67 x 51 mm |
| Width | 145 mm |
| Height | 67 mm |
| Depth | 51 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.056 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.145 x 0.05 x 0.065 m |
| Gross weight | 0.057 kg |
| Net weight | 0.056 kg |
| EAN code | 4007754181203 |
| Net weight | 0.056 kg |
