Order no.: 0110700

MRH-80

P278

Order no.: 0110700

MRH-80

PA horn tweeter for MRD-80

35 mm (1⅜") standard thread
Plastic
CD design (constant directivity)
Effective throat: 25 mm (1")

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA horn tweeter for MRD-80

35 mm (1⅜") standard thread
Plastic
CD design (constant directivity)
Effective throat: 25 mm (1")

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	horn tweeter
Material	plastic
Frequency range	2,500-18,000 Hz
Crossover frequency	2,500 Hz
Radiation angle (vert./hor.)	60°/90°
Radiation angle, vertical	60°
Radiation angle, horizontal	90°

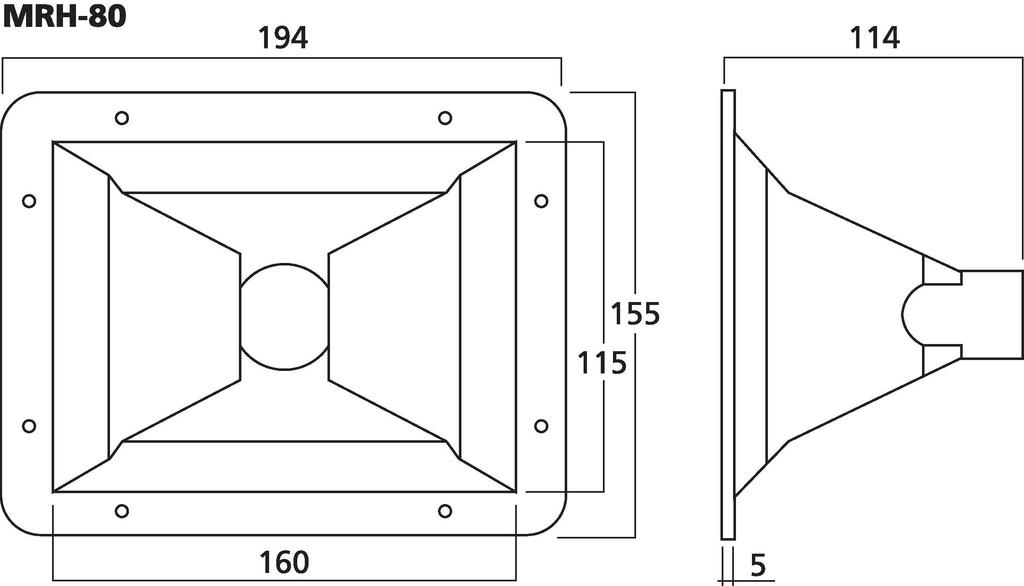

Mounting cutout	160 x 115 mm
Mounting depth	110 mm
Dimensions	194 x 155 x 114 mm
Height	155 mm
Width	194 mm
Depth	114 mm
Weight	168 g

EAN code	4007754192131
Net weight	0.168 kg

Downloads

Accessories for MRH-80

Order no.: 0105300

MRD-34PA

PA horn driver, 35 W, 8 Ω

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
fx-20,000 Hz

Order no.: 0105300

MRD-34PA

PA horn driver, 35 W, 8 Ω

Order no.: 0104360

MRD-80

PA horn driver, 30 W, 8 Ω

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
fx-17,500 Hz

Order no.: 0104360

MRD-80

PA horn driver, 30 W, 8 Ω
