Order no.: 0348390

NAC-3MPHC

P_NEUTRIK
Order no.: 0348390

NAC-3MPHC

NEUTRIK POWERCON panel jack
  • For mains connection with a high power rating of up to ˜ 250 V/32 A
  • Screw terminal contacts for ground, phase and neutral connector
  • For cable cores: 2.5-6 mm2
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
continue

About

NEUTRIK POWERCON panel jack
  • For mains connection with a high power rating of up to ˜ 250 V/32 A
  • Screw terminal contacts for ground, phase and neutral connector
  • For cable cores: 2.5-6 mm2
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description panel jack
Type NEUTRIK POWERCON
Quantity 1
Features latching device, cable inlet with self-adjusting clamps
Colour/colour coding black
Power rating ˜ 250 V/32 A
Insulating resistance > 10 GΩ
Connection NEUTRIK-POWERCON/cable cores 2.5-6 mm2
Material metal
Admiss. ambient temp. -25 °C to +70 °C

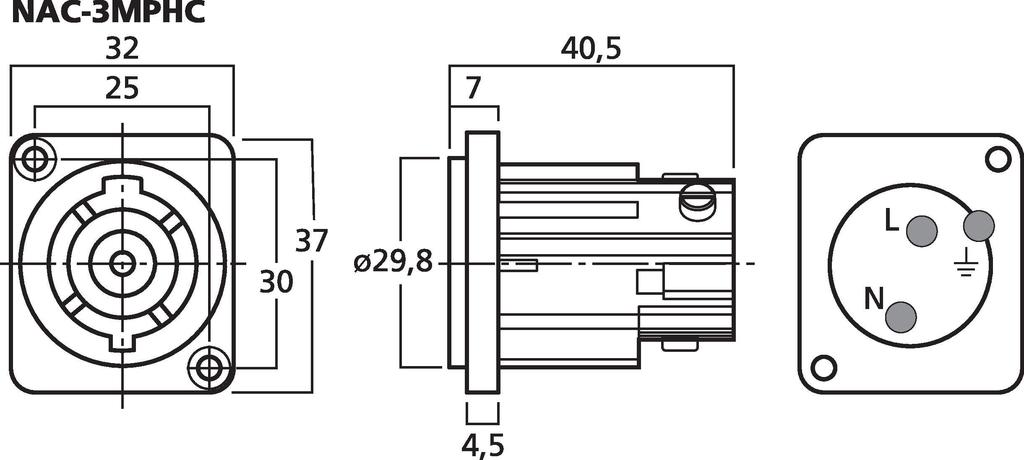

Dimensions 32 x 37 x 40.5 mm
Weight 26 g
EAN code 4007754206593
Net weight 0.026 kg
