Order no.: 1001023

NAC3MPXXB

P_NEUTRIK
Order no.: 1001023

NAC3MPXXB

NEUTRIK POWERCON panel jack
  • For mains connection up to ˜ 250 V/20 A
  • Version for mains output
  • Connections for ground, phase and neutral connector
  • Self-extinguishing according to UL-94 V-0
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
continue

About

NEUTRIK POWERCON panel jack
  • For mains connection up to ˜ 250 V/20 A
  • Version for mains output
  • Connections for ground, phase and neutral connector
  • Self-extinguishing according to UL-94 V-0
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description panel jack, output
Type NEUTRIK POWERCON
Quantity 1
Features latching device, all-insulated contacts
Colour/colour coding grey
Power rating ˜ 250 V/20 A
Insulating resistance > 10 GΩ
Dielectric strength DC 4 kV
Certification UL, CUL, VDE, Electroswiss
Pole number 2 + PE
Connection blade terminals, 4.8 mm
Material silver-plated bronze contacts, plastic
Admiss. ambient temp. -30-+80 °C

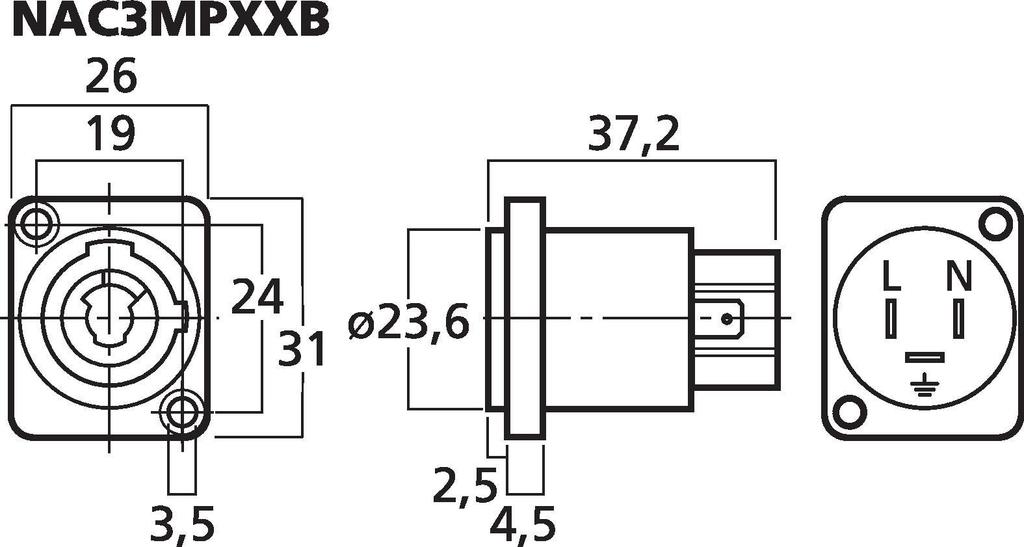

Dimensions 26 x 31 x 37.2 mm
Length 37.2 mm
Weight 12 g
EAN code 7613187012822
Net weight 0.012 kg
