Order no.: 0160480

NR-10M

Order no.: 0160480

Flush-mount horn speaker (music horn) with full range speaker, 4 Ω

For wall mounting and ceiling installation
After installation weatherproof and IP54 certified
4 Ω speaker system
5 cm (2.5") full range speaker with horn front attachment
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
ABS plastic housing
Mounting flange with foam rubber sealing

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Flush-mount horn speaker (music horn) with full range speaker, 4 Ω

For wall mounting and ceiling installation
After installation weatherproof and IP54 certified
4 Ω speaker system
5 cm (2.5") full range speaker with horn front attachment
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
ABS plastic housing
Mounting flange with foam rubber sealing

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Active/passive	passive
Transmission technology	cable
Total power rating	20 W
Power rating (RMS)	10 W
Impedance	4 Ω
Frequency range	200-15,000 Hz
Number of speakers	1
SPL	98 dB/W/m
Radiation angle/beam angle	H: 100°/V: 100°
Radiation angle, horizontal	100°
Radiation angle, vertical	100°
Features	full range speaker
Housing material	ABS
Colour	grey
Mounting device	mounting flange with foam rubber sealing
Protection class	IP54
Admiss. ambient temp.	0-40 °C

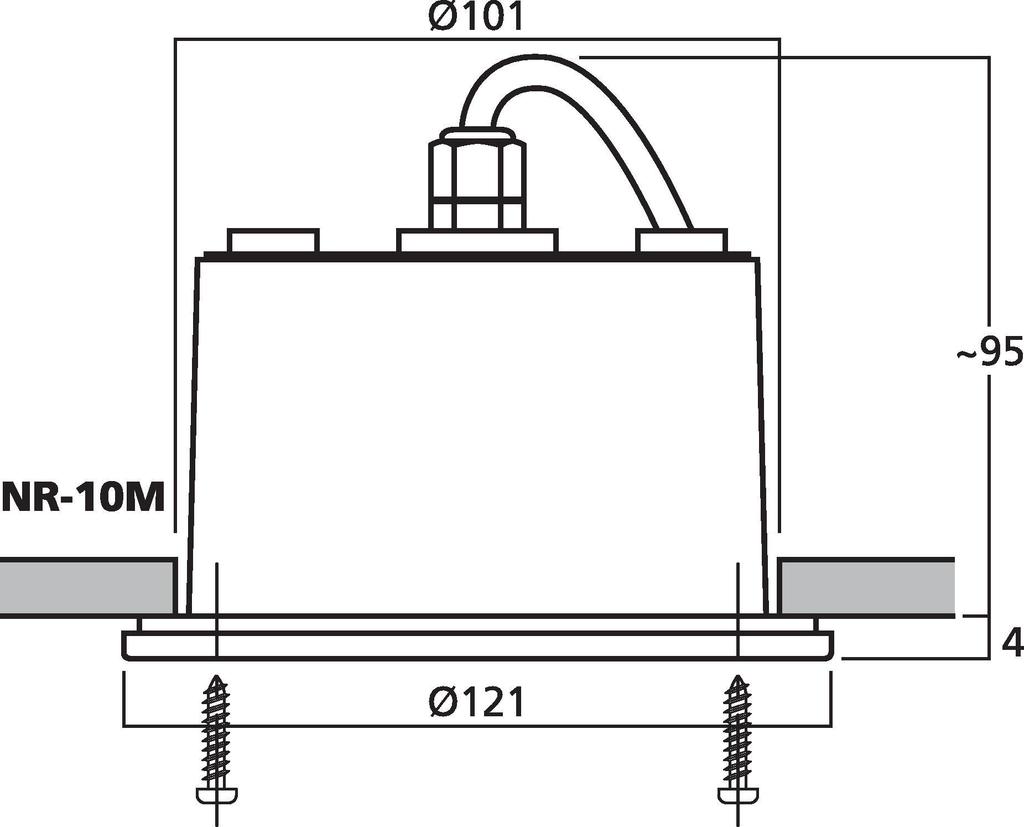

Dimensions	120 x 120 x 120 mm mounting cutout: Ø 101 mm
Width	120 mm
Height	120 mm
Depth	120 mm
Weight	0.48 kg
Inputs	cable connection
Other features	weatherproof
Packaging dimensions (W x H x L)	0.15 x 0.125 x 0.15 m
Gross weight	0.556 kg
Net weight	0.487 kg
