Order no.: 0212380

NTE-10/3

Order no.: 0212380

NTE-10/3

Audio transformer 1:3/1:10 for microphone signals,

from NEUTRIK.

Very compact design, e.g. also suitable for installation into connector housings
Unshielded version with bare wire connections (70 mm)
Wideband version
Balance adjustment
Galvanic isolation to avoid/eliminate hum loops
Max. input voltage: 350 mV/380 mV (1% THD/50 Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

continue

About

Audio transformer 1:3/1:10 for microphone signals,

from NEUTRIK.

Very compact design, e.g. also suitable for installation into connector housings
Unshielded version with bare wire connections (70 mm)
Wideband version
Balance adjustment
Galvanic isolation to avoid/eliminate hum loops
Max. input voltage: 350 mV/380 mV (1% THD/50 Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description	transformer
Frequency range	20-20,000 Hz
Input signal	380 mV

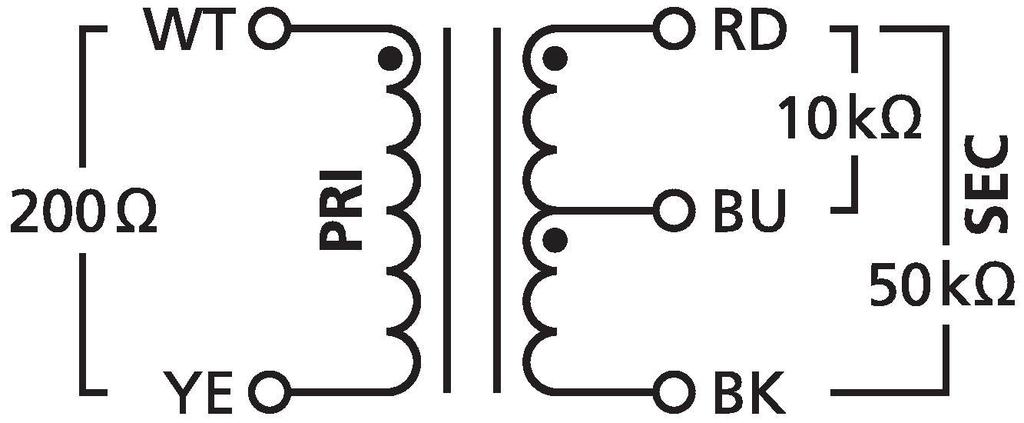

Input impedance	200 Ω
Output impedance	10 kΩ/50 kΩ
Transmission ratio	1:3/1:10
Admiss. ambient temp.	0-40 °C
Dimensions	14 x 11 x 12 mm (w/o cable)
Weight	7 g
Inputs	bare wire connections
Outputs	bare wire connections
