Order no.: 0234750

NX-9

Order no.: 0234750

Overhead electret microphone

For various applications: sound pickup of hi-hats/cymbals/percussion instruments, microphone applications with acoustic instruments, e.g. guitars, violins, pianos or wind instruments
Well-balanced and natural sound
Operation via +48 V phantom power or via 1.5 V battery AA size (not supplied)
Supplied with microphone holder and padded bag

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Overhead electret microphone

For various applications: sound pickup of hi-hats/cymbals/percussion instruments, microphone applications with acoustic instruments, e.g. guitars, violins, pianos or wind instruments
Well-balanced and natural sound
Operation via +48 V phantom power or via 1.5 V battery AA size (not supplied)
Supplied with microphone holder and padded bag

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	overhead microphone
Transmission method	cable

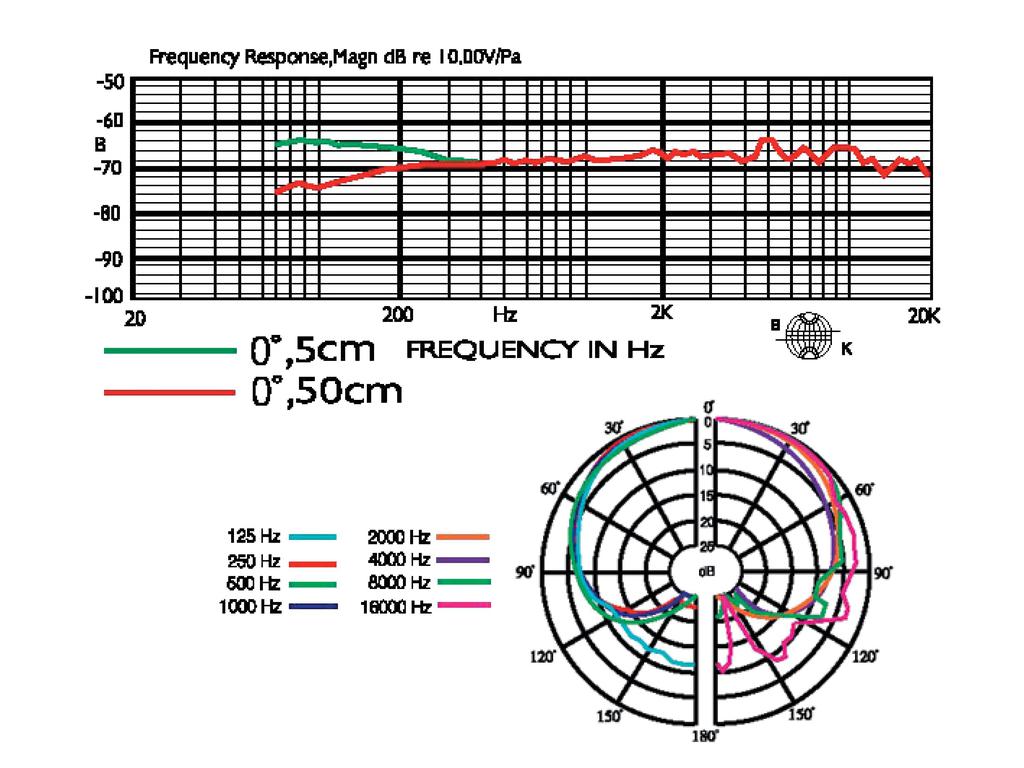

Polar pattern	cardioid
System	electret
Audio frequency range	60-18,000 Hz
Nominal impedance	400 Ω ± 30%
Sensitivity	3.2 mV/Pa
Max. sound pressure	145 dB
Power supply	DC 48 V phantom power or 1 x batt. AA size (not supplied)
Housing material	diecast metal
Admiss. ambient temp.	0-40 °C
Weight	230 g
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.125 x 0.075 x 0.26 m
Gross weight	0.46 kg
Net weight	0.23 kg
