Order no.: 0110600

PAST-550/SW

Order no.: 0110600

PAST-550/SW

Wall bracket for standard wooden speaker systems
  • Black lacquered
  • Pivoting (approx. 150°) and tilting (approx. 30°)
  • Adjustable support area for speaker systems (195-360 mm)
  • Supplied with locking screws for speaker systems
  • Load capacity: 15 kg
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Wall bracket for standard wooden speaker systems
  • Black lacquered
  • Pivoting (approx. 150°) and tilting (approx. 30°)
  • Adjustable support area for speaker systems (195-360 mm)
  • Supplied with locking screws for speaker systems
  • Load capacity: 15 kg
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

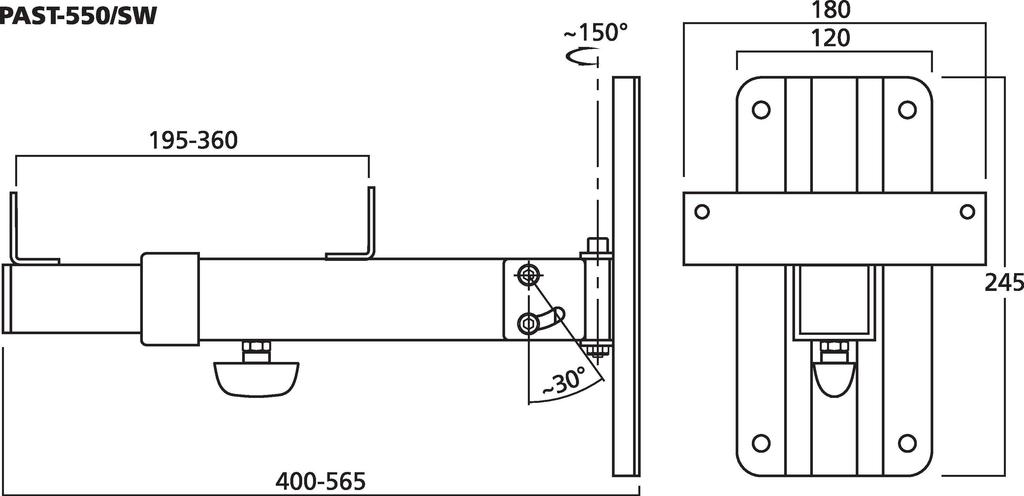

Specifications

Description wall bracket
Suitable for standard wooden speaker systems
Material metal
Colour black
Max. load/centr. weight concentr. 15 kg
Mounting flange 120 x 245 mm
Pivoting 150°
Tilting 30°
Length 400-565 mm
Weight 2.32 kg
EAN code 4007754188936
Net weight 2.328 kg
