Order no.: 0255680

PB-05E

Order no.: 0255680

PB-05E

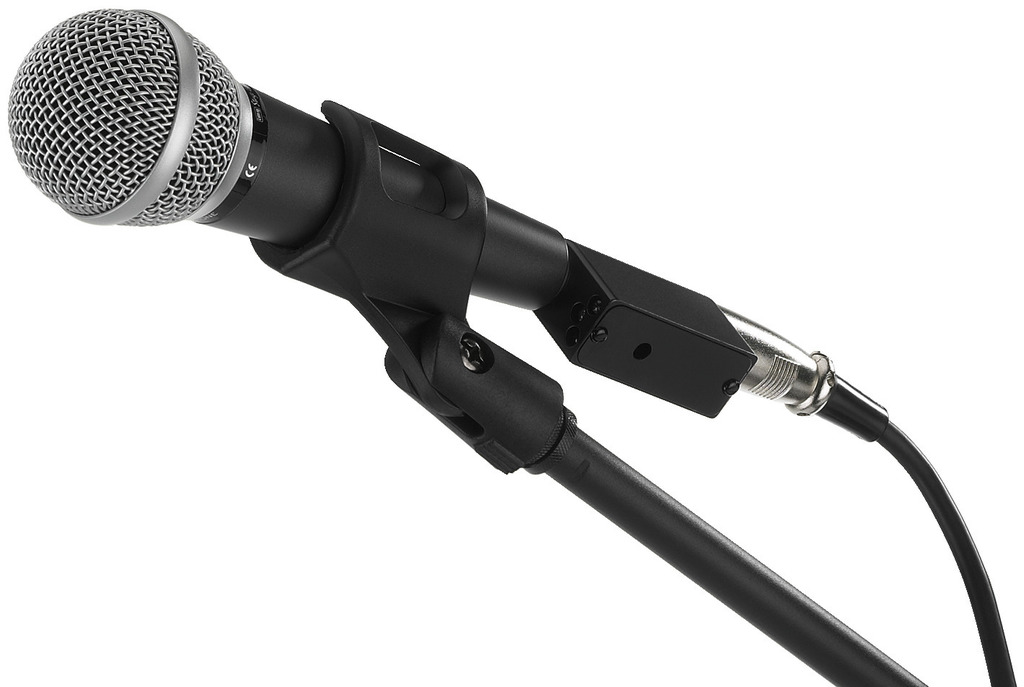

Automatic microphone switch,
with optical distance sensor.
  • Automatic switch, response via infrared signals
  • For dynamic microphones with balanced output configuration
  • Easy operation via 48 V phantom power
  • Adjustable distance: 0-1.5 m, detection angle: 15°
  • Low-noise semiconductor switch
  • Reliable switching operations due to coded infrared signal
  • Status LED
  • Connections: 1 x XLR inline jack and 1 x XLR plug

Supplied w/o microphone and cable.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Automatic microphone switch,
with optical distance sensor.
  • Automatic switch, response via infrared signals
  • For dynamic microphones with balanced output configuration
  • Easy operation via 48 V phantom power
  • Adjustable distance: 0-1.5 m, detection angle: 15°
  • Low-noise semiconductor switch
  • Reliable switching operations due to coded infrared signal
  • Status LED
  • Connections: 1 x XLR inline jack and 1 x XLR plug

Supplied w/o microphone and cable.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description automatic microphone switch
Type with optical distance sensor
Colour black
Material plastic (housing)
Suitable for dynamic microphones
Power supply 48 V phantom power
Admiss. ambient temp. 0-40 °C
Dimensions 21 × 35 × 69 mm
Weight 34 g
Connections 1 x XLR inline jack,

1 x XLR plug

Packing unit 1
Packaging dimensions (W x H x L) 0.08 x 0.025 x 0.15 m
Gross weight 0.066 kg
Net weight 0.061 kg
EAN code 4007754241242
Net weight 0.061 kg
