Order no.: 1000673

PM-35USB

P1497

Order no.: 1000673

PM-35USB

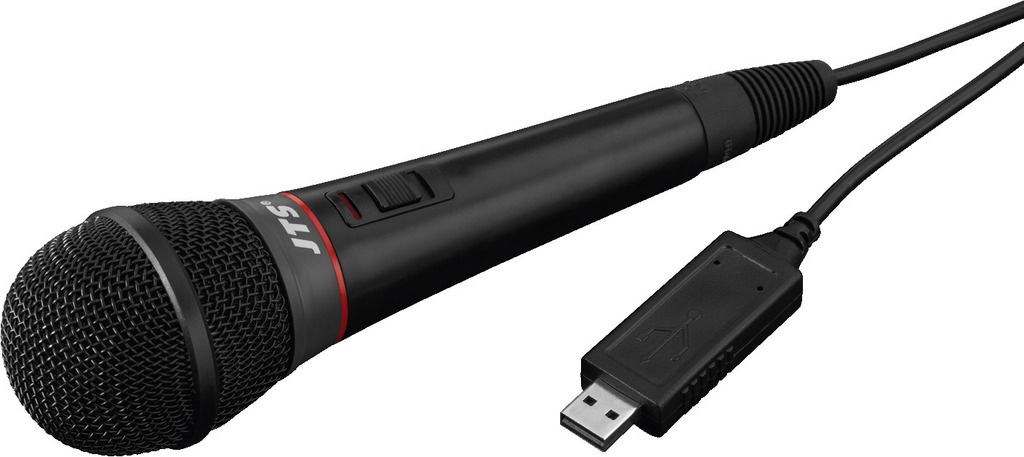

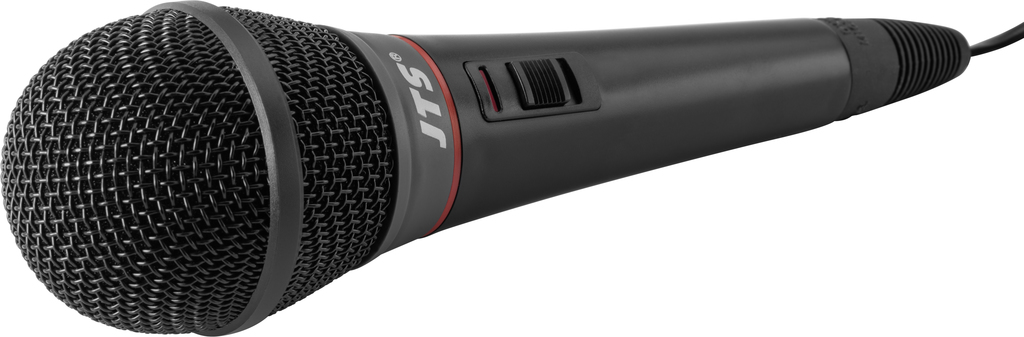

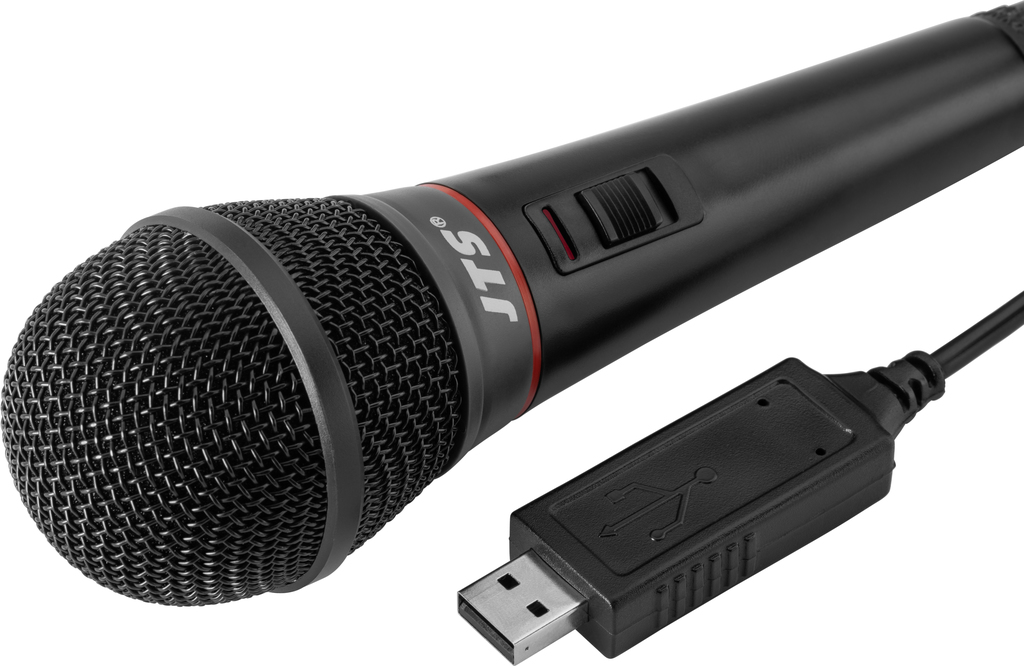

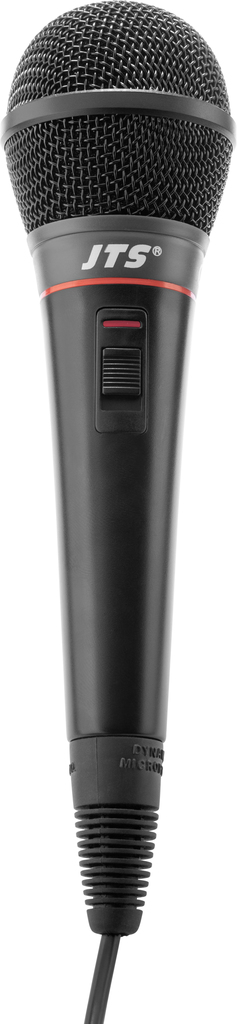

Dynamic microphone,

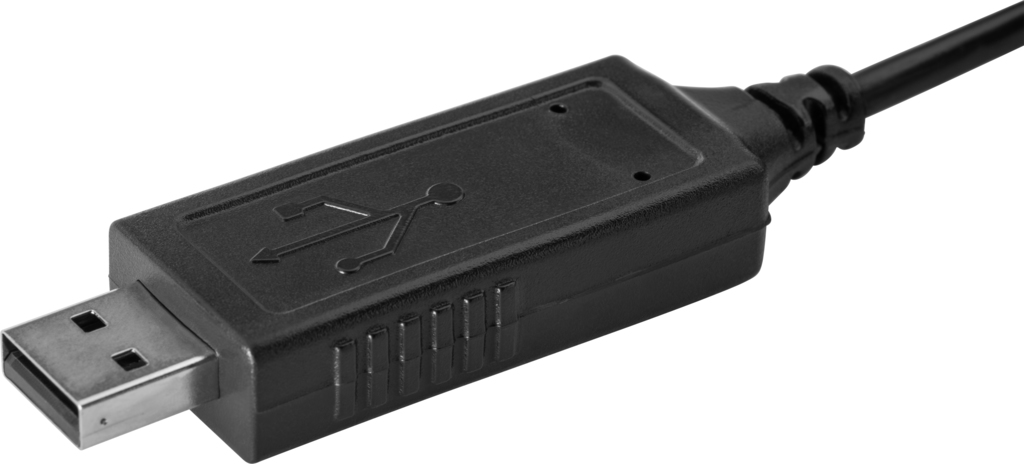

with USB connector.

For operating directly at a PC
No driver installation required, device will be identified automatically

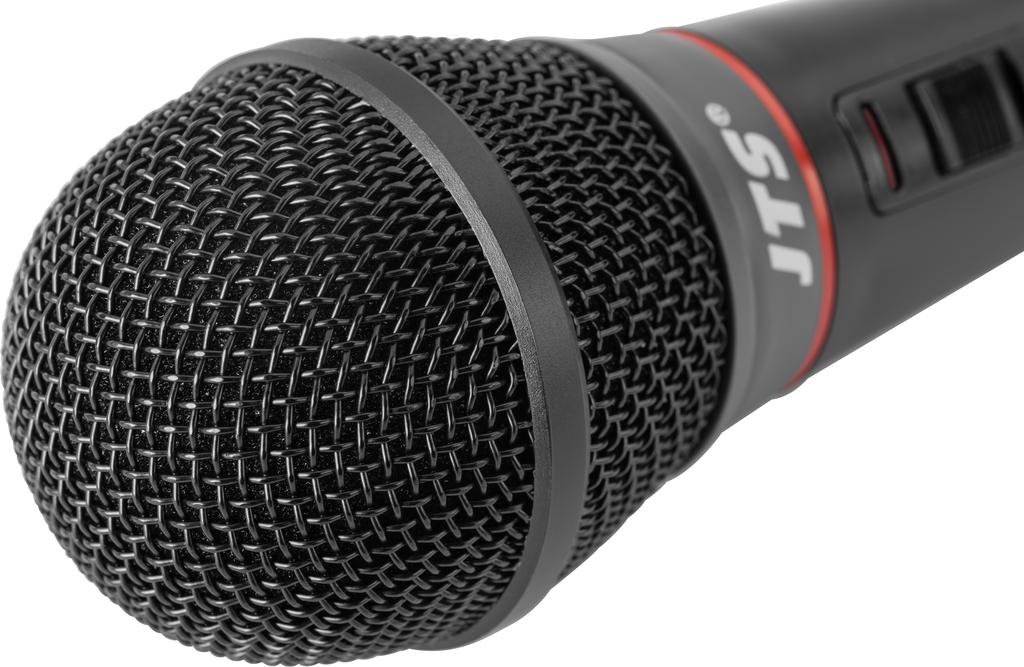

Microphone cartridge with cardioid polar pattern
Integrated A/D converter (16 bits/48 KHz)

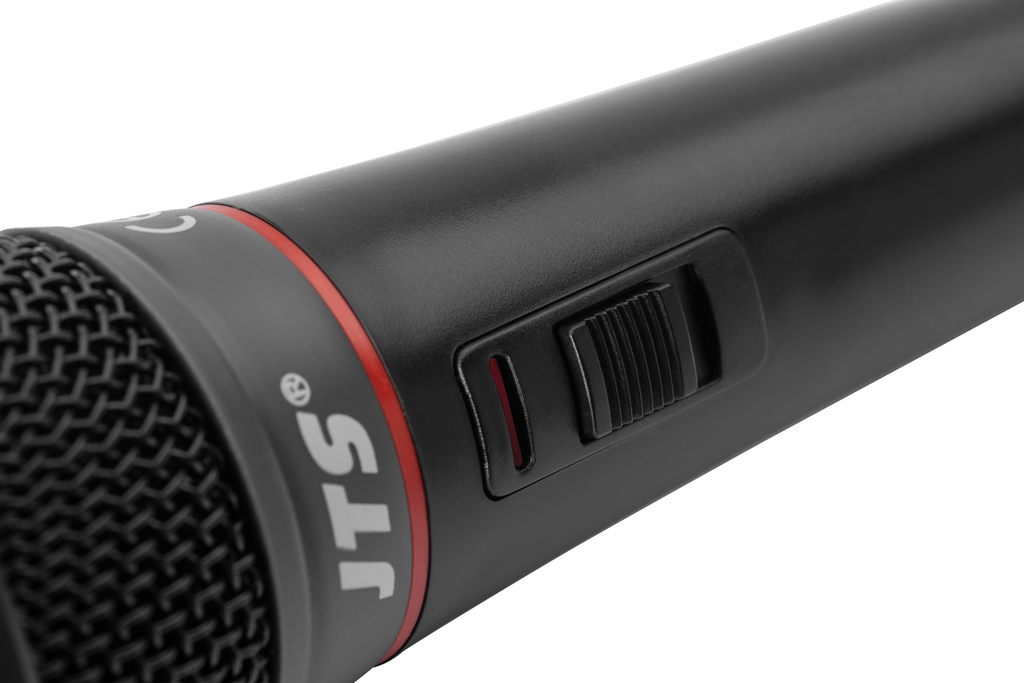

On/off switch
For Windows XP/Vista/Win7/Win10 or Mac

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Dynamic microphone,

with USB connector.

For operating directly at a PC
No driver installation required, device will be identified automatically
Microphone cartridge with cardioid polar pattern
Integrated A/D converter (16 bits/48 KHz)
On/off switch
For Windows XP/Vista/Win7/Win10 or Mac

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	vocal microphone
Version	USB
Transmission method	cable
Polar pattern	cardioid
System	dynamic
Audio frequency range	100-10,000 Hz
Nominal impedance	600 Ω
Sensitivity	2.5 mV/Pa
Max. sound pressure	145 dB
Housing material	plastic
Dimensions	Ø 50 mm x 200 mm
Weight	202 g
Cable	4 m, assembled
Connection	plug Type-A
Packaging dimensions (W x H x L)	0.255 x 0.08 x 0.12 m
Gross weight	0.361 kg
Net weight	0.21 kg

EAN code	4007754412376
Net weight	0.21 kg

Sampling rates	48 kHz
Resolution	16 Bit
