Order no.: 1000736

RACK-MXT52MP3

Order no.: 1000736

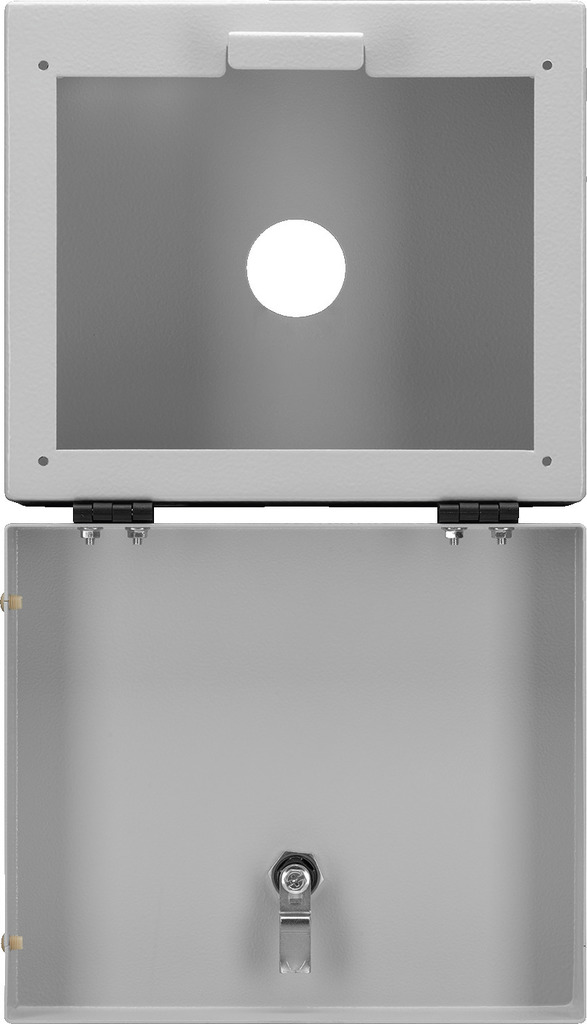

Wall-mounted housing,

for mounting the mixer with integrated MP3 player MXT-52MP3.

Sheet steel version
Light grey powder coating (RAL 7035)
Attached hinged cover, opens downwards, non-removable, lockable
Round rear panel cutout (40 mm) for cable inlet
Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
Max. mounting depth behind the front panel: 74 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Wall-mounted housing,

for mounting the mixer with integrated MP3 player MXT-52MP3.

Sheet steel version
Light grey powder coating (RAL 7035)
Attached hinged cover, opens downwards, non-removable, lockable
Round rear panel cutout (40 mm) for cable inlet
Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
Max. mounting depth behind the front panel: 74 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Intended use/capacity	wall-mounted housing
Size	suitable for MXT-52MP3
Colour	grey (RAL 7035)
Version	hinged cover, opens downwards, non-removable, lockable
Material	sheet steel housing, powder-coated
Mounting accessories	matching key
Usable depth	74 mm

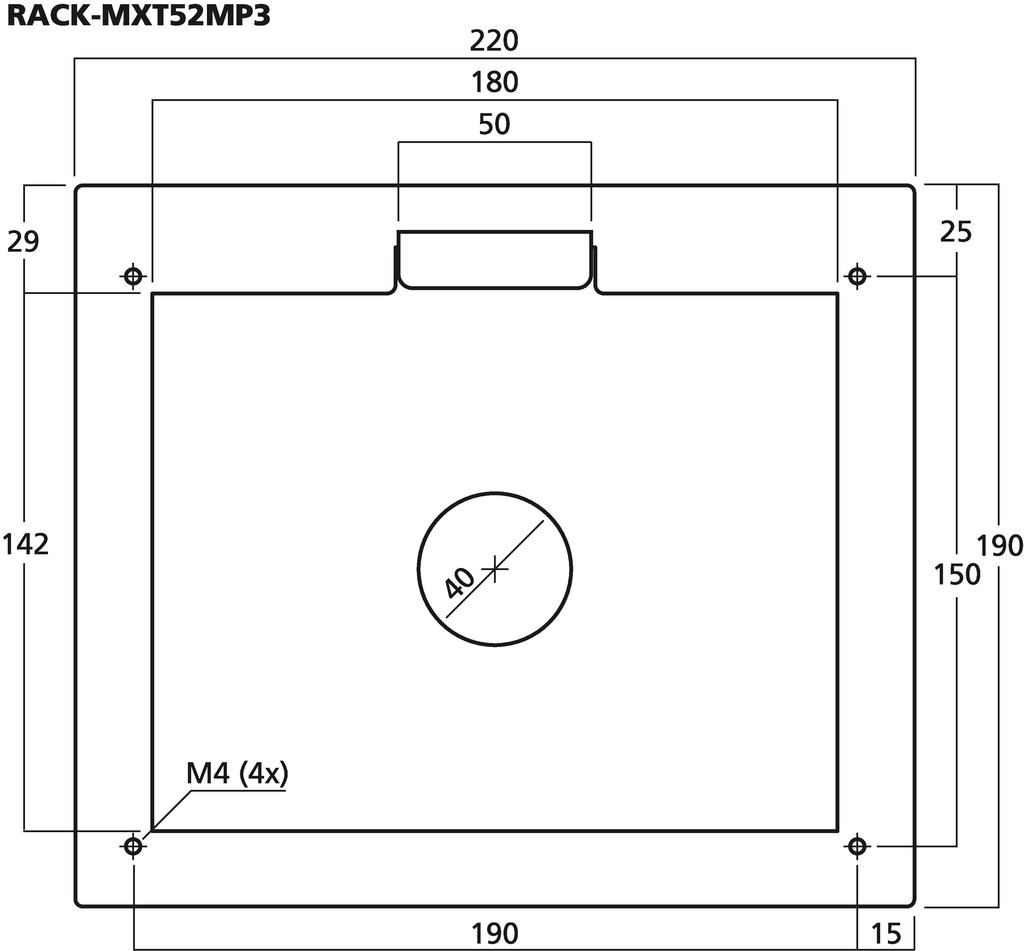

Outside dimensions	220 x 190 x 126 mm
Width	220 mm
Height	190 mm
Depth	126 mm
Weight	2 kg
