Order no.: 1001155

SL-150SW/EN

P2000 P1980 P1516 P1410 P1240 P530 P190 P1468 P10
Order no.: 1001155

SL-150SW/EN

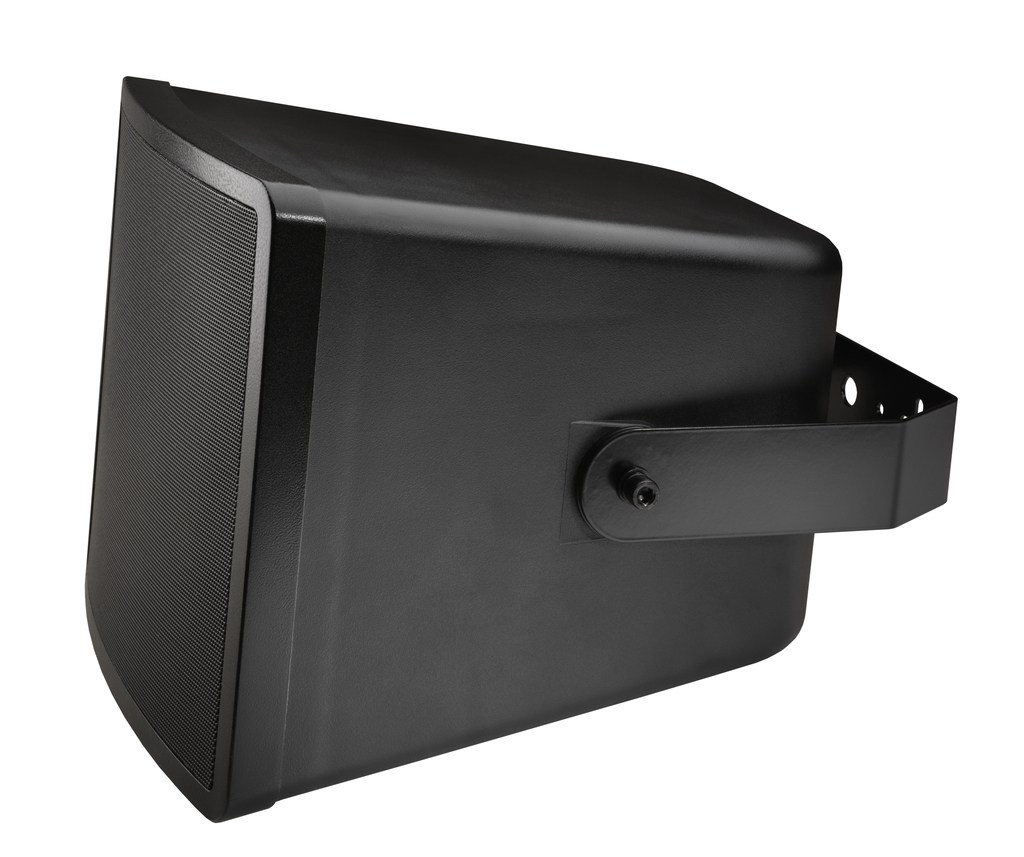

Weatherproof PA speaker system with 20 cm (8") coaxial horn speaker,
developed for outdoor applications, with an excellent sound quality. The SL-150SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.
Weatherproof PA speaker system, 150 W,
with EN 54-24 certification.
  • 100 V transmission technology or 8 Ω operation
  • 2-way bass-reflex system
  • 20 cm (8") coaxial speaker with tweeter and crossover network
  • Excellent sound
  • IP66 tested
  • ABS cabinet with metal grille
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Supplied with safety rope
  • Stainless steel wall bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Weatherproof PA speaker system with 20 cm (8") coaxial horn speaker,
developed for outdoor applications, with an excellent sound quality. The SL-150SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.
Weatherproof PA speaker system, 150 W,
with EN 54-24 certification.
  • 100 V transmission technology or 8 Ω operation
  • 2-way bass-reflex system
  • 20 cm (8") coaxial speaker with tweeter and crossover network
  • Excellent sound
  • IP66 tested
  • ABS cabinet with metal grille
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Supplied with safety rope
  • Stainless steel wall bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 150 W
Power rating (RMS) 150/75/38 W
Impedance 8 Ω
Frequency range 90-19,000 Hz
System 2-way coaxial
Bass speaker 20 cm (8")
Tweeter tweeter
Number of speakers 2
Speaker size 20 cm (8")
SPL 98 dB/W/m
Max. rated SPL 120 dB
Radiation angle/beam angle H: 80°/V: 80°
Radiation angle, horizontal 80°
Radiation angle, vertical 80°
Housing material ABS
Colour black
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -25 °C to +70 °C
Dimensions 315 x 305 x 350 mm
Width 315 mm
Height 305 mm
Depth 350 mm
Weight 11.85 kg
Inputs screw terminal
Packaging dimensions (W x H x L) 0.39 x 0.47 x 0.39 m
Gross weight 13.9 kg
Net weight 11.85 kg
EAN code 4007754425840
Net weight 11.85 kg
