Order no.: 0104920

SP-10A/302PA

P180 P610 P1410
Order no.: 0104920

SP-10A/302PA

PA bass-midrange speaker, 300 W, 8 Ω
  • Of very high power capability
  • 25 cm (10") professional speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with a front-facing basket
  • Wide frequency response of low distortion
  • High efficiency
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For compact bass-reflex cabinets from 20 litres on already
  • For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 01/2017
“Bass driver providing a top-class sound for compact bass-reflex cabinets of about 40 litres, suitable for 2-way systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

PA bass-midrange speaker, 300 W, 8 Ω
  • Of very high power capability
  • 25 cm (10") professional speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with a front-facing basket
  • Wide frequency response of low distortion
  • High efficiency
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For compact bass-reflex cabinets from 20 litres on already
  • For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 01/2017
“Bass driver providing a top-class sound for compact bass-reflex cabinets of about 40 litres, suitable for 2-way systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

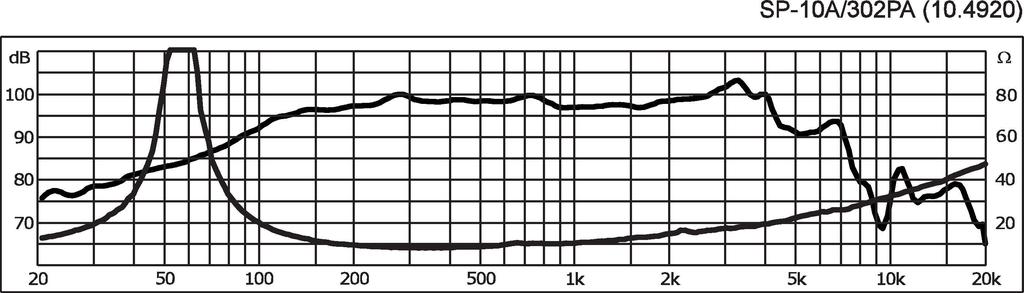

Frequency range f3-3,500 Hz
Resonant frequency (fs) 55 Hz
Power rating (RMS) 300 W
Peak music power output (MAX) 600 W
SPL 98 dB/W/m
Suspension compl. (Cms) 0.24 mm/N
Moving mass (Mms) 35 g
Mech. Q factor (Qms) 7.44
Electr. Q factor (Qes) 0.31
Total Q factor (Qts) 0.3
Equivalent volume (Vas) 40 l
DC resistance (Re) 6.4 Ω
Force factor (BxL) 15.82 Tm
Voice coil induct. (Le) 0.65 mH
Voice coil diameter 66 mm
Voice coil former Kapton
Linear excursion (XMAX) 4 mm
Eff. cone area (Sd) 346 cm2
Magnet weight 2 kg
Magnet diameter Ø 154 mm

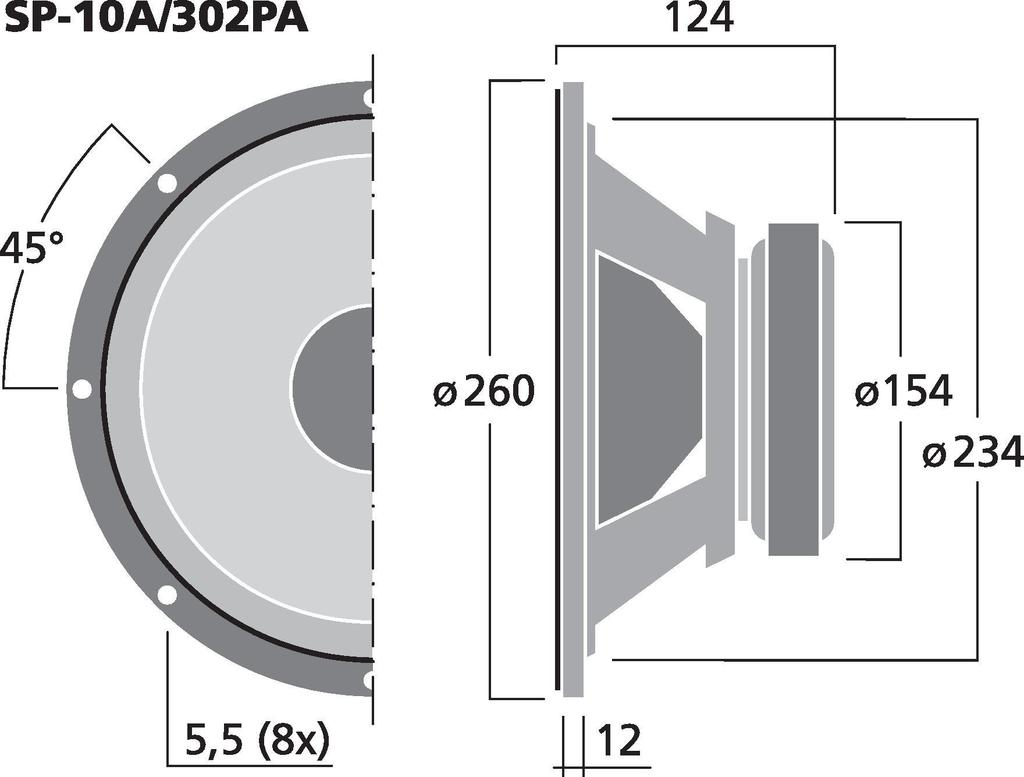

Mounting cutout Ø 234 mm
Mounting depth 112 mm
Dimensions Ø 260 mm x 124 mm
Outside diameter Ø 260 mm
Width Ø 260 mm
Height Ø 260 mm
Depth 122 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 4.98 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.285 x 0.16 x 0.285 m
Gross weight 5.42 kg
Net weight 4.98 kg
EAN code 4007754191042
Net weight 4.98 kg
