| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

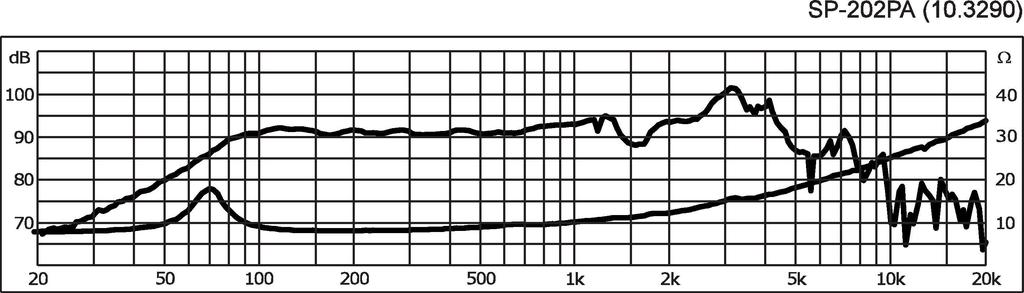

| Frequency range | f3-4,500 Hz |
| Resonant frequency (fs) | 68 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 91 dB/W/m |
| Suspension compl. (Cms) | 0.2 mm/N |
| Moving mass (Mms) | 18 g |
| Mech. Q factor (Qms) | 2.33 |
| Electr. Q factor (Qes) | 2.25 |
| Total Q factor (Qts) | 1.1 |
| Equivalent volume (Vas) | 12 l |
| DC resistance (Re) | 7.4 Ω |
| Force factor (BxL) | 5.60 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3 mm |
| Eff. cone area (Sd) | 216 cm2 |
| Magnet weight | 570 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 185 mm |
| Mounting depth | 82 mm |

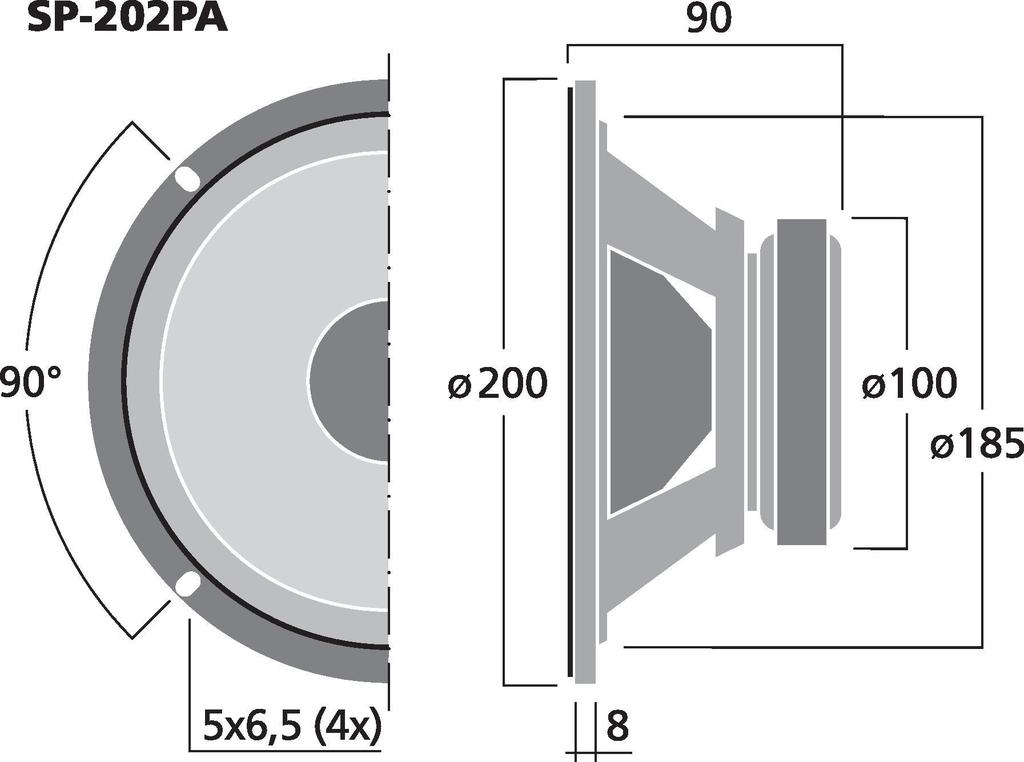

| Dimensions | Ø 200 mm x 90 mm |
| Outside diameter | Ø 200 mm |
| Width | Ø 200 mm |
| Height | Ø 200 mm |
| Depth | 90 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.115 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.21 x 0.095 x 0.21 m |
| Gross weight | 1.245 kg |
| Net weight | 1.115 kg |
| EAN code | 4007754134889 |
| Net weight | 1.115 kg |
