Order no.: 0100470

SP-23/4RDP

Order no.: 0100470

SP-23/4RDP

Miniature flush-mount speaker, 8 Ω

For general applications in models, intercom systems, miniature radios

Miniature flush-mount speaker

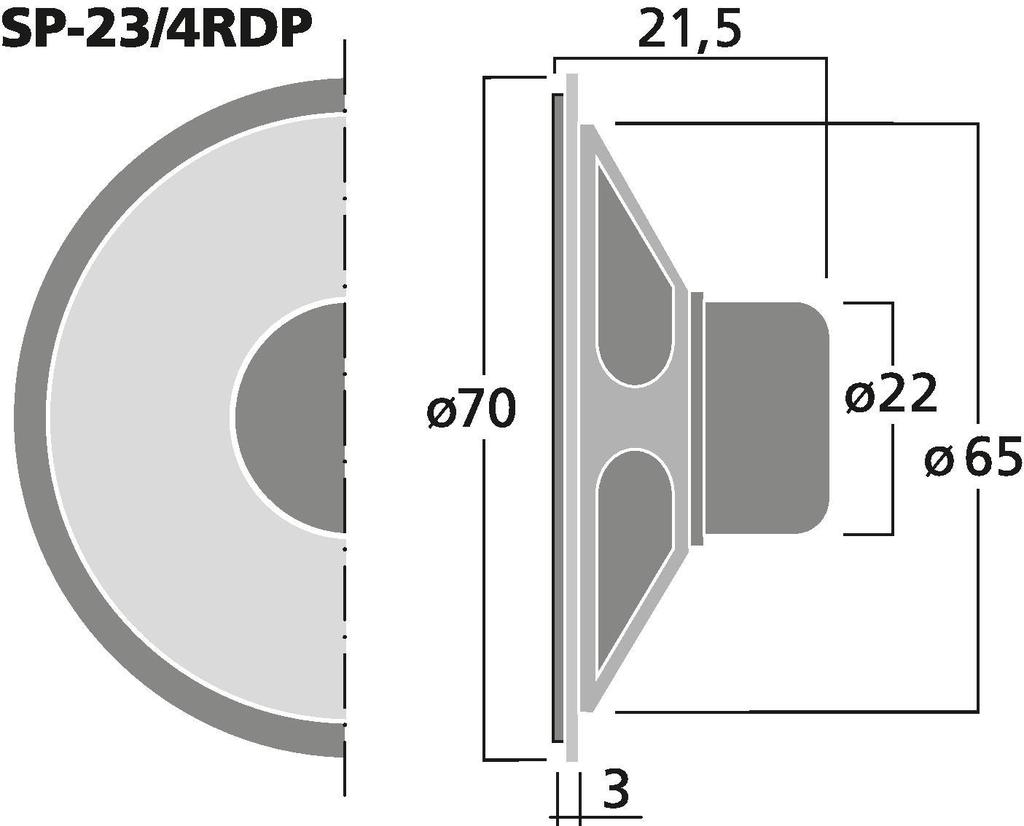

Legend scale drawing:

Width = Ø A
Depth = E
Magnet diameter = Ø B
Mounting cutout = Ø C
Mounting depth = E-D

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Miniature flush-mount speaker, 8 Ω

For general applications in models, intercom systems, miniature radios

Miniature flush-mount speaker

Legend scale drawing:

Width = Ø A
Depth = E
Magnet diameter = Ø B
Mounting cutout = Ø C
Mounting depth = E-D

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	350-15,000 Hz
Power rating (RMS)	0.5 W
SPL	power capability: < 1 W
Magnet diameter	Ø 22 mm
Mounting cutout	Ø 65 mm
Mounting depth	18 mm
Dimensions	Ø 70 mm x 21.5 mm
Outside diameter	Ø 70 mm
Width	Ø 70 mm
Height	Ø 70 mm
Depth	21.5 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.045 kg
Packing unit	1
Packaging dimensions (W x H x L)	0.075 x 0.025 x 0.075 m
Gross weight	0.055 kg
Net weight	0.045 kg

EAN code	4007754024463
Net weight	0.045 kg
