| Impedance (Z) | 4 Ω |
| Transmission technology | cable |

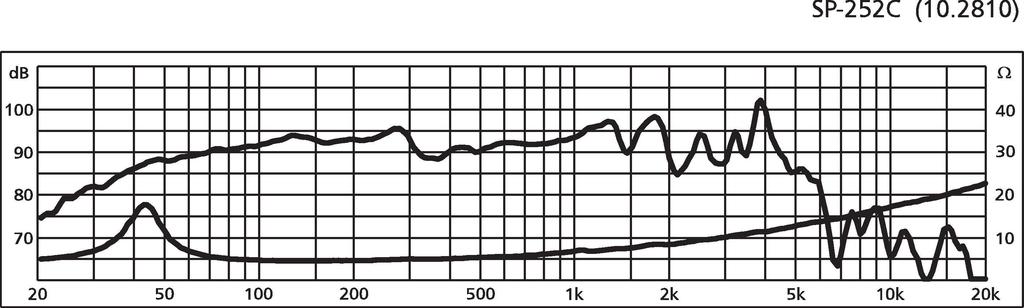

| Frequency range | f3-3,500 Hz |
| Resonant frequency (fs) | 35 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 93 dB/W/m |
| Suspension compl. (Cms) | 0.55 mm/N |
| Moving mass (Mms) | 38 g |
| Mech. Q factor (Qms) | 3.15 |
| Electr. Q factor (Qes) | 0.47 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 96 l |
| DC resistance (Re) | 3.7 Ω |
| Force factor (BxL) | 8.08 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 39 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5 mm |
| Eff. cone area (Sd) | 353 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 125 mm |

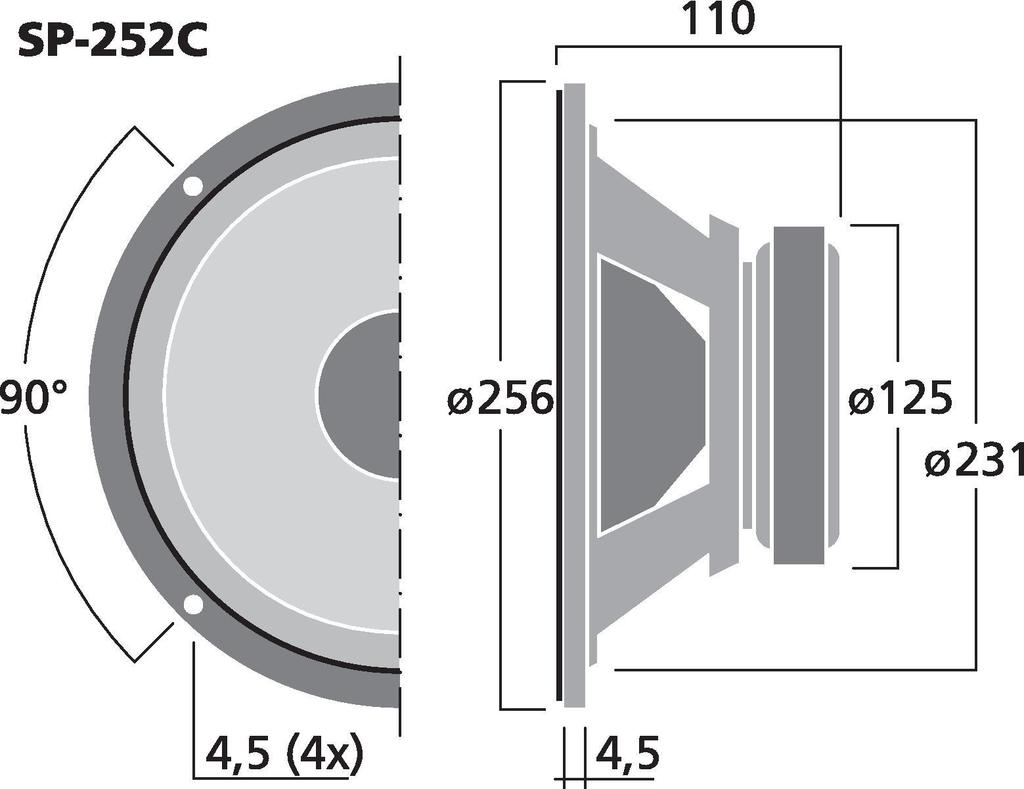

| Mounting cutout | Ø 231 mm |
| Mounting depth | 110 mm |
| Dimensions | Ø 256 mm x 110 mm |
| Outside diameter | Ø 256 mm |
| Width | Ø 256 mm |
| Height | Ø 256 mm |
| Depth | 110 mm |
| Colour | black/violet |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.4 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.265 x 0.125 x 0.265 m |
| Gross weight | 2.61 kg |
| Net weight | 2.4 kg |
| EAN code | 4007754095593 |
| Net weight | 2.4 kg |
