| Impedance (Z) | 4 Ω |
| Transmission technology | cable |

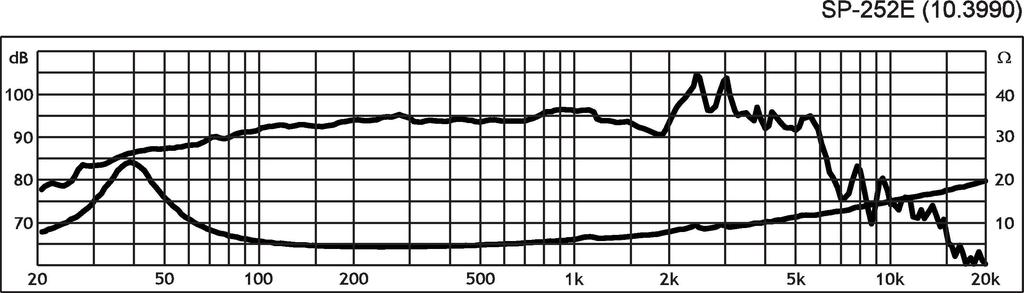

| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 42 Hz |
| Power rating (RMS) | 75 W |
| Peak music power output (MAX) | 150 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.33 mm/N |
| Moving mass (Mms) | 43 g |
| Mech. Q factor (Qms) | 3.13 |
| Electr. Q factor (Qes) | 0.60 |
| Total Q factor (Qts) | 0.50 |
| Equivalent volume (Vas) | 57 l |
| DC resistance (Re) | 3.75 Ω |
| Force factor (BxL) | 8.50 Tm |
| Voice coil induct. (Le) | 1.1 mH |
| Voice coil diameter | Ø 35.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 353 cm2 |
| Magnet weight | 960 g |
| Magnet diameter | Ø 125 mm |
| Mounting cutout | Ø 232 mm |
| Mounting depth | 110 mm |
| Mounting hole diameter | Ø 245 mm |

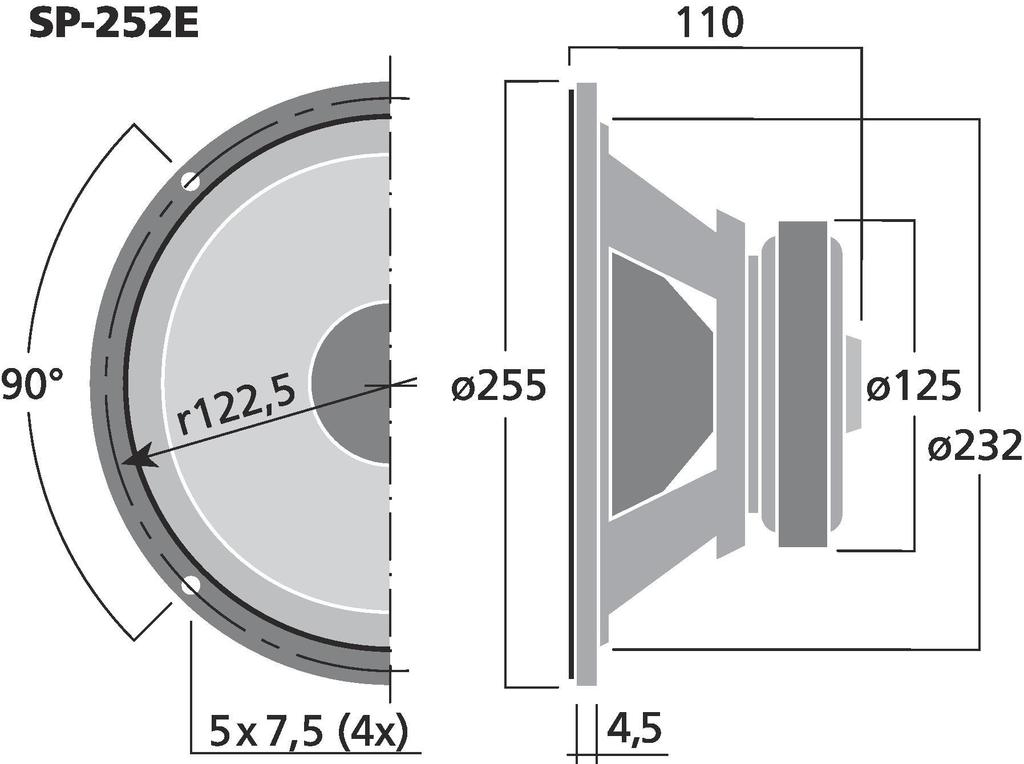

| Dimensions | Ø 255 mm x 110 mm |
| Outside diameter | Ø 255 mm |
| Width | Ø 255 mm |
| Height | Ø 255 mm |
| Depth | 110 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.3 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.26 x 0.12 x 0.26 m |
| Gross weight | 2.42 kg |
| Net weight | 2.295 kg |
| EAN code | 4007754153521 |
| Net weight | 2.295 kg |
