| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

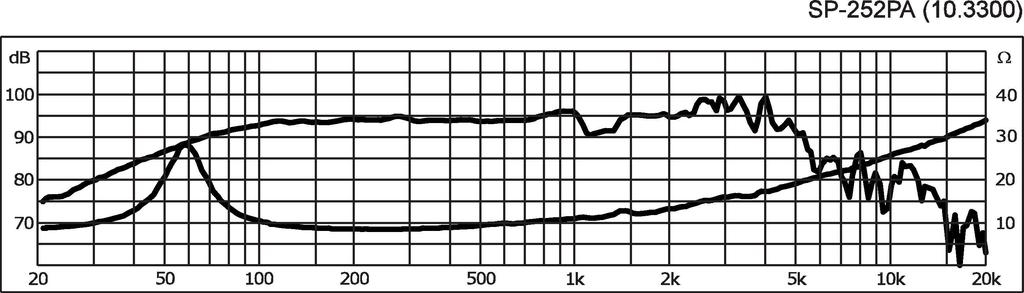

| Frequency range | f3-4,500 Hz |
| Resonant frequency (fs) | 55 Hz |
| Power rating (RMS) | 75 W |
| Peak music power output (MAX) | 150 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.18 mm/N |
| Moving mass (Mms) | 30 g |
| Mech. Q factor (Qms) | 2.13 |
| Electr. Q factor (Qes) | 1 |
| Total Q factor (Qts) | 0.7 |
| Equivalent volume (Vas) | 30 l |
| DC resistance (Re) | 7.7 Ω |
| Force factor (BxL) | 9.70 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 39 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 350 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 119 mm |
| Mounting cutout | Ø 232 mm |
| Mounting depth | 101 mm |

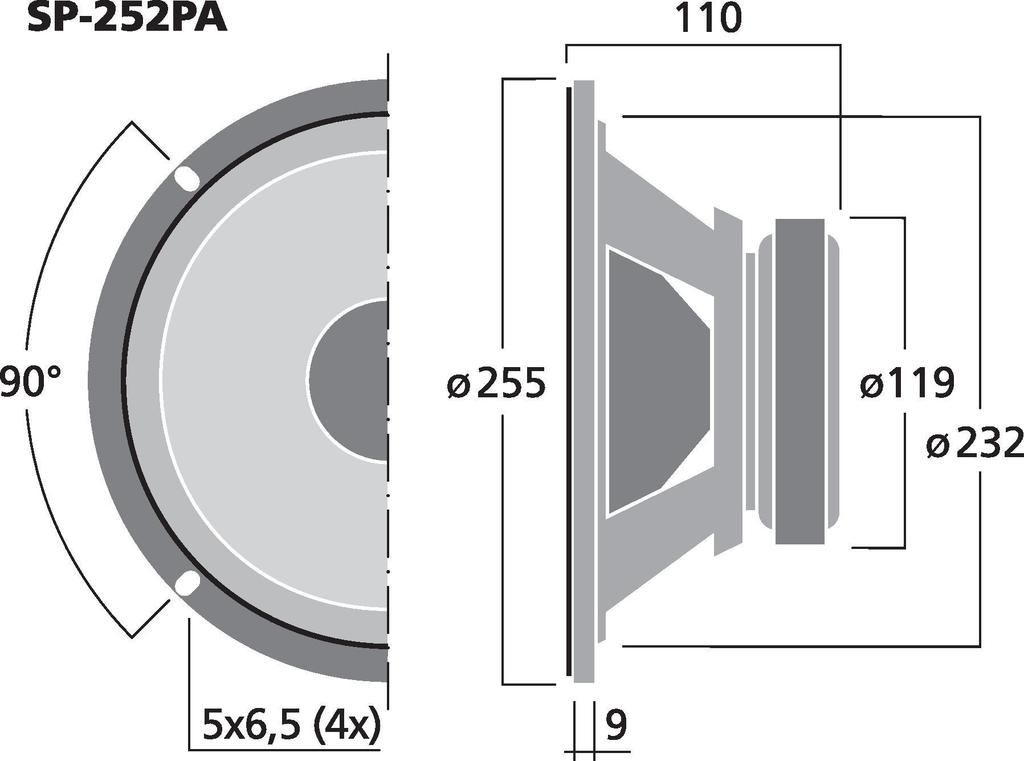

| Dimensions | Ø 255 x 110 mm |
| Outside diameter | Ø 255 mm |
| Width | Ø 255 mm |
| Height | Ø 255 mm |
| Depth | 110 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.21 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.26 x 0.12 x 0.26 m |
| Gross weight | 2.405 kg |
| Net weight | 2.21 kg |
| EAN code | 4007754134896 |
| Net weight | 2.21 kg |
