Order no.: 0102240

SP-312CX

P171

P600

Order no.: 0102240

SP-312CX

2-way coaxial PA speaker,

with integrated horn tweeter.

30 cm (12") PA bass speaker of high power capability and high efficiency
Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
Excellent sound characteristics
Robust diecast basket with rear-ventilated centering spider
75 mm (3") heat-resistant voice coil on a polyamide voice coil former (TIL)
Excellent and consistent radiation pattern
Ideally suited for stage monitors or very compact full range speaker systems
Operation only allowed with crossover network (recommended crossover frequency: 1,800 Hz)

Klang+Ton 08,09/2016

“Even at high volume levels which are anything but neighbour-friendly, you can still lean back and enjoy the sound - that's exactly how PA speakers should be. The Stage 12 is a well-balanced speaker system of high efficiency ...”

Klang+Ton 01/2015

“Excellent coaxial speaker.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

2-way coaxial PA speaker,

with integrated horn tweeter.

30 cm (12") PA bass speaker of high power capability and high efficiency
Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
Excellent sound characteristics
Robust diecast basket with rear-ventilated centering spider
75 mm (3") heat-resistant voice coil on a polyamide voice coil former (TIL)
Excellent and consistent radiation pattern
Ideally suited for stage monitors or very compact full range speaker systems
Operation only allowed with crossover network (recommended crossover frequency: 1,800 Hz)

Klang+Ton 08,09/2016

“Even at high volume levels which are anything but neighbour-friendly, you can still lean back and enjoy the sound - that's exactly how PA speakers should be. The Stage 12 is a well-balanced speaker system of high efficiency ...”

Klang+Ton 01/2015

“Excellent coaxial speaker.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

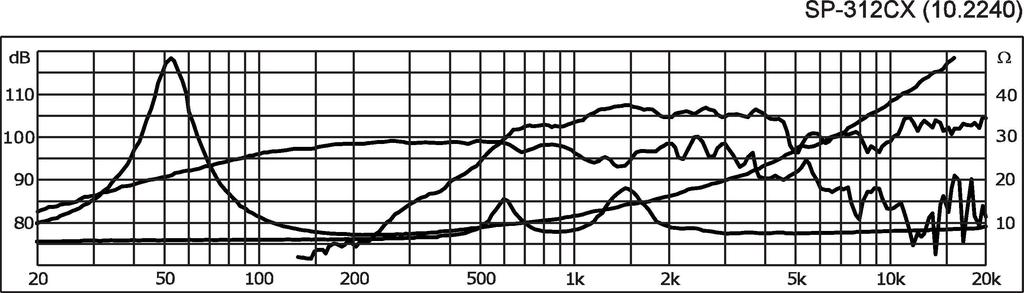

Frequency range	f3-3,000 Hz
Resonant frequency (fs)	55 Hz (bass), 700 Hz (tweeter)
Power rating (RMS)	250 W (bass) / 50 W (tweeter)
Peak music power output (MAX)	500 W (bass) / 100 W (tweeter)
SPL	97 dB (bass) / 106 dB (tweeter)
Suspension compl. (Cms)	0.16 mm/N
Moving mass (Mms)	56 g
Mech. Q factor (Qms)	3.74
Electr. Q factor (Qes)	0.36
Total Q factor (Qts)	0.33
Equivalent volume (Vas)	64 l
DC resistance (Re)	5.6 Ω
Force factor (BxL)	16.90 Tm
Voice coil induct. (Le)	1.1 mH
Voice coil diameter	Ø 75 mm (bass) / Ø 44 mm (tweeter)
Voice coil former	polyimide
Linear excursion (X_MAX)	± 3.0 mm
Eff. cone area (Sd)	540 cm²
Magnet weight	1.8 kg

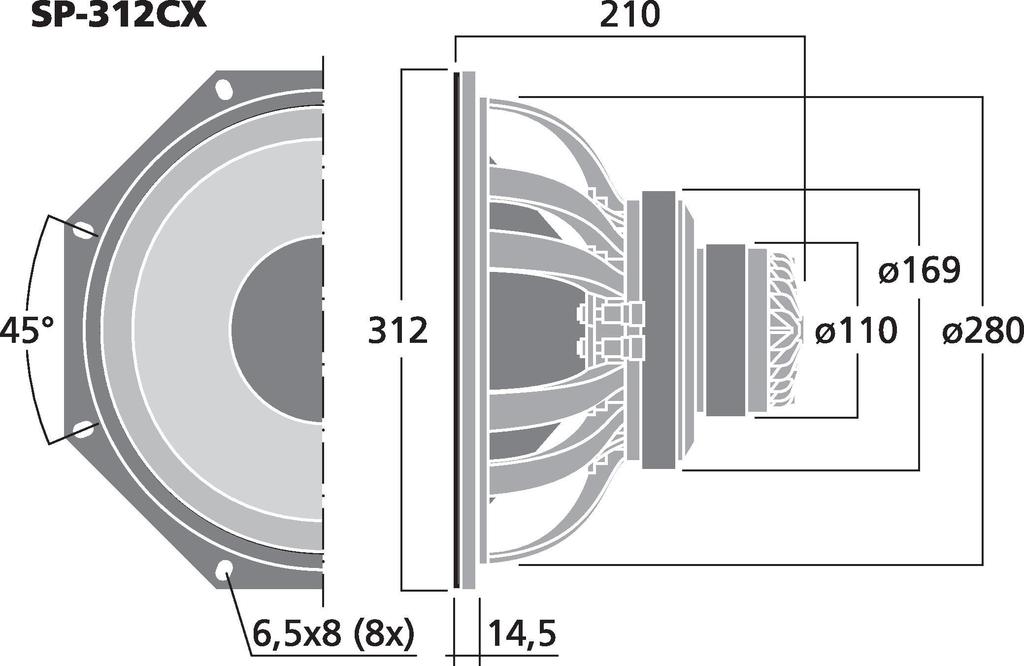

Magnet diameter	Ø 169 mm/Ø 110 mm
Mounting cutout	Ø 280 mm
Mounting depth	195.5 mm
Dimensions	312 x 312 x 210 mm
Width	312 mm
Height	312 mm
Depth	210 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	8.06 kg
Packing unit	1
Type of speaker	12"
Packaging dimensions (W x H x L)	0.395 x 0.27 x 0.395 m
Gross weight	9.31 kg
Net weight	8.06 kg

EAN code	4007754246599
Net weight	8.06 kg

Downloads

Accessories for SP-312CX

Order no.: 0121180

MZF-8631

Protective speaker grille, Ø 300 mm

Outside Ø:
Ø 310 mm

Inside Ø:
Ø 280 mm

Total height:
15 mm

Order no.: 0121180

MZF-8631

Protective speaker grille, Ø 300 mm
