Order no.: 0104590

SP-6/8SQ

P272

P410

P1590

Order no.: 0104590

SP-6/8SQ

Miniature speaker, 10 W, 8 Ω

For standard applications
Sound pressure with good linearity from approx. 120 Hz up to the high range
Neodymium magnet

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Miniature speaker, 10 W, 8 Ω

For standard applications
Sound pressure with good linearity from approx. 120 Hz up to the high range
Neodymium magnet

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	f3-20,000 Hz
Power rating (RMS)	10 W
Peak music power output (MAX)	20 W
SPL	81 dB

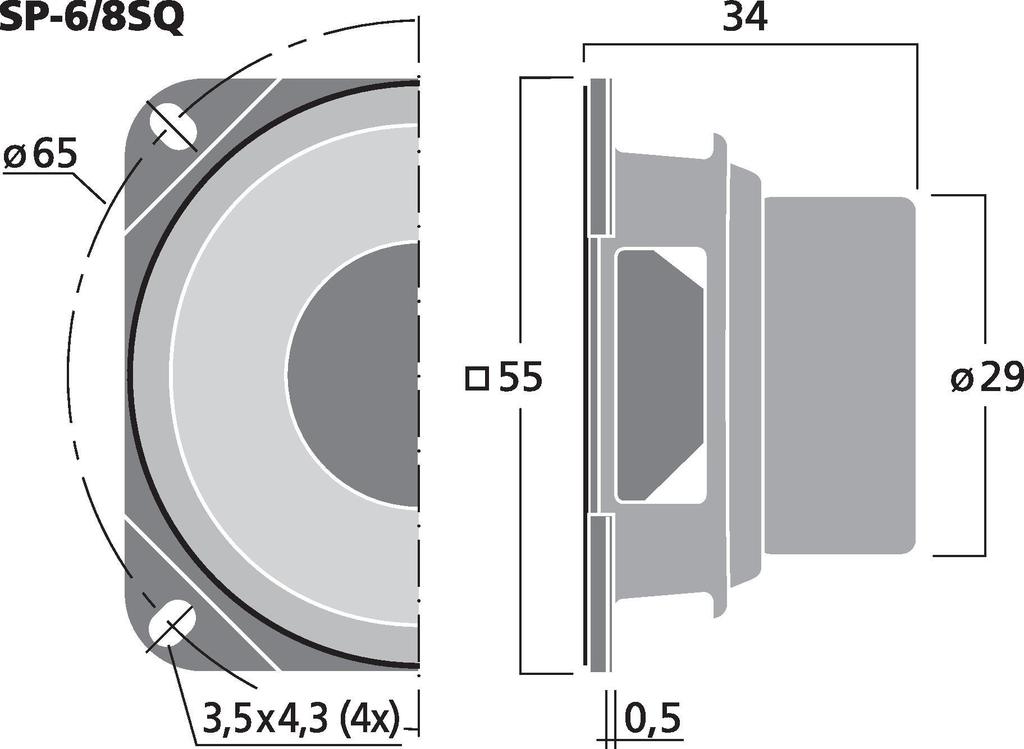

Magnet diameter	Ø 29 mm
Mounting cutout	Ø 50.5 mm
Mounting depth	33.5 mm
Mounting hole diameter	Ø 65 mm
Dimensions	55 x 55 x 34 mm
Width	55 mm
Height	55 mm
Depth	34 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.087 kg
Packing unit	1
Type of speaker	2"
Packaging dimensions (W x H x L)	0.065 x 0.045 x 0.065 m
Gross weight	0.1 kg
Net weight	0.087 kg

EAN code	4007754187533
Net weight	0.087 kg

Downloads

Accessories for SP-6/8SQ

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Description:
speaker foam sealing tape

Type:
self-adhesive

Colour:
black

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Description:
wood screws

Type:
hexagon socket, self-cutting

Colour:
black

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Order no.: 0121440

ST-930

Spring-loaded speaker terminal

Description:
spring-loaded speaker terminal

Type:
round

Colour:
black

Order no.: 0121440

ST-930

Spring-loaded speaker terminal
