Order no.: 0103630

SP-8/4SQS

P270 P410 P1590
Order no.: 0103630

SP-8/4SQS

Universal speaker, 10 W, 4 Ω
  • Magnetic shielding
  • For wide bandwidth applications (e.g. TV)
  • Sound pressure from approx. 100 Hz on
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Universal speaker, 10 W, 4 Ω
  • Magnetic shielding
  • For wide bandwidth applications (e.g. TV)
  • Sound pressure from approx. 100 Hz on
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 4 Ω
Transmission technology cable
Frequency range f3-16,000 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W
SPL 83 dB

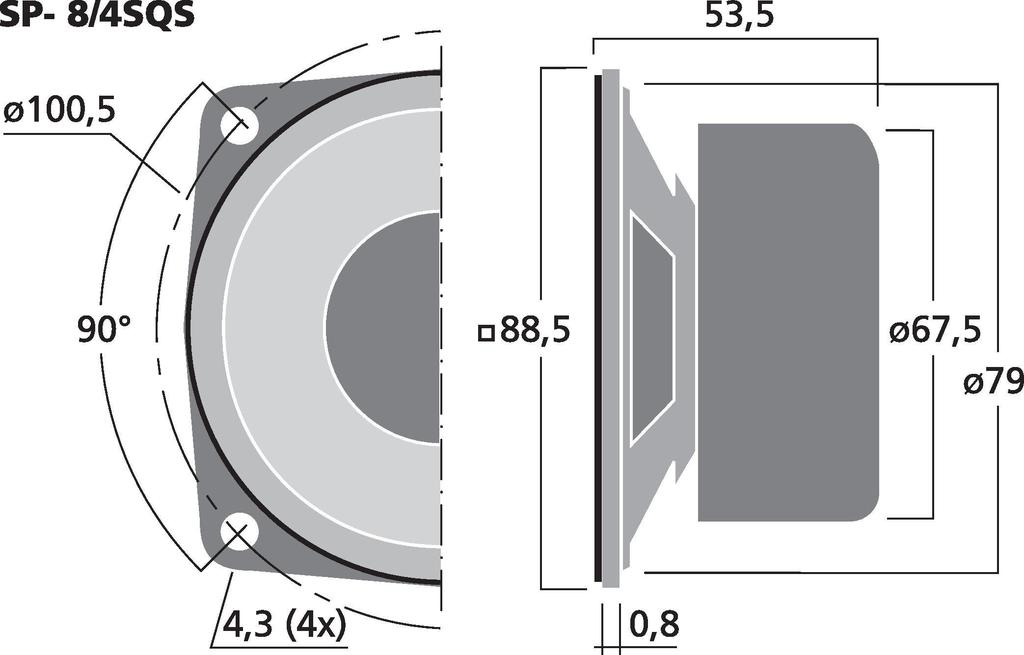

Magnet diameter Ø 67.5 mm
Mounting cutout Ø 79 mm
Mounting depth 52.7 mm
Mounting hole diameter Ø 100.5 mm
Dimensions 88.5 x 88.5 x 53.5 mm
Width 88.5 mm
Height 88.5 mm
Depth 53.5 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.405 kg
Packing unit 1
Type of speaker 3"
Packaging dimensions (W x H x L) 0.095 x 0.06 x 0.095 m
Gross weight 0.43 kg
Net weight 0.405 kg
EAN code 4007754137774
Net weight 0.405 kg
