Order no.: 0105600

SPE-15/WS

P1980

Order no.: 0105600

SPE-15/WS

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	60-20,000 Hz
Resonant frequency (fs)	90 Hz
Power rating (RMS)	25 W
Peak music power output (MAX)	50 W
SPL	87 dB/W/m

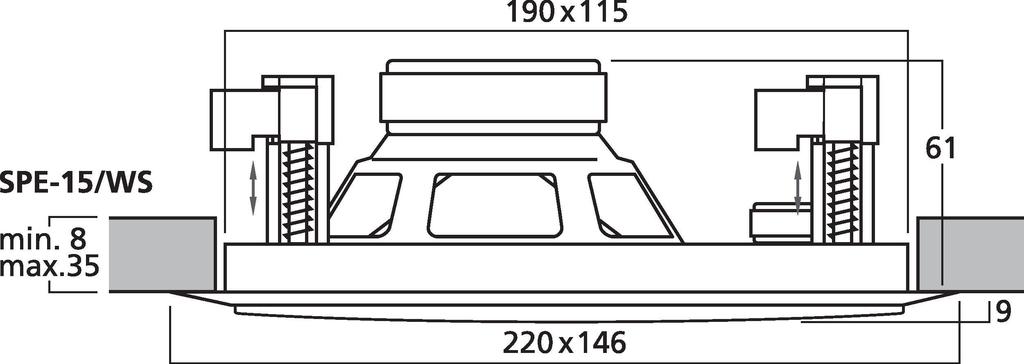

Mounting cutout	115 x 190 mm
Mounting depth	61 mm
Dimensions	146 x 220 x 70 mm
Width	146 mm
Height	220 mm
Depth	70 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	0.83 kg
Packing unit	1
Type of speaker	100
Packaging dimensions (W x H x L)	0.195 x 0.095 x 0.265 m
Gross weight	0.989 kg
Net weight	0.879 kg

EAN code	4007754232677
Net weight	0.879 kg

Downloads

Accessories for SPE-15/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
