Order no.: 0103150

SPE-158/WS

P1980

P420

Order no.: 0103150

SPE-158/WS

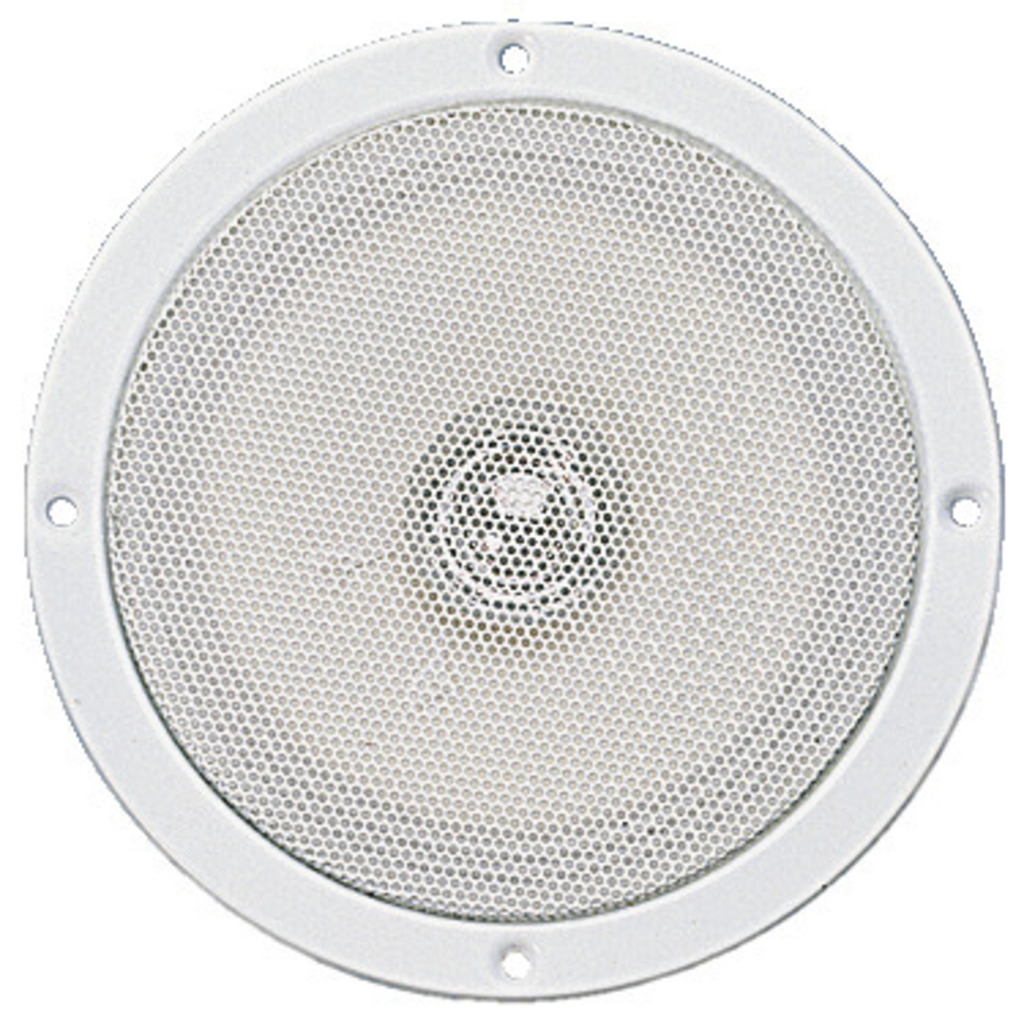

Flush-mount full range speakers, 15 W

Dual cone
Slimline design with fixed metal grille

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Flush-mount full range speakers, 15 W

Dual cone
Slimline design with fixed metal grille

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	100-12,000 Hz
Power rating (RMS)	15 W
Peak music power output (MAX)	30 W
SPL	88 dB/W/m
Magnet diameter	69 mm

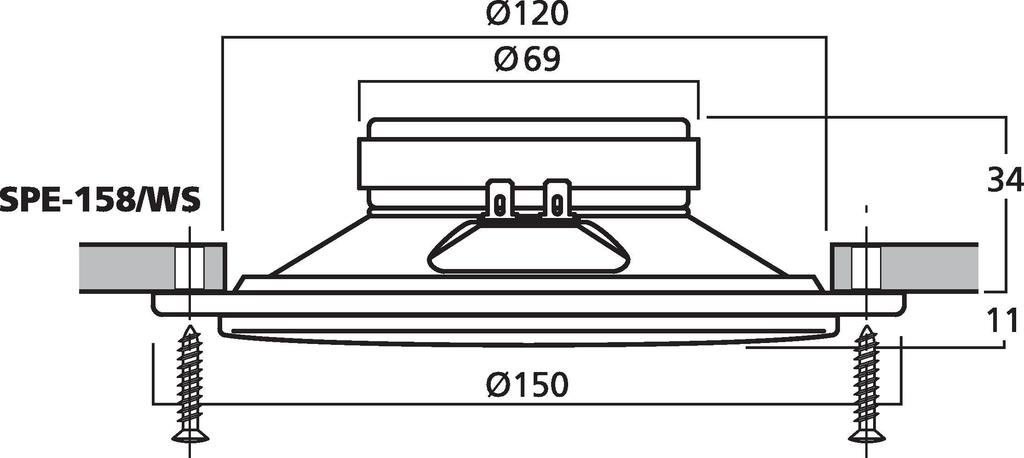

Mounting cutout	Ø 120 mm
Mounting depth	34 mm
Dimensions	Ø 153 mm x 45 mm
Outside diameter	Ø 153 mm
Width	Ø 153 mm
Height	Ø 153 mm
Depth	45 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	500 g
Packing unit	1
Type of speaker	130
Packaging dimensions (W x H x L)	0.16 x 0.055 x 0.16 m
Gross weight	0.6 kg
Net weight	0.504 kg

EAN code	4007754117882
Net weight	0.504 kg

Downloads

Accessories for SPE-158/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
