Order no.: 0162840

SPE-15F/WS

P1990

P1330

P1250

P420

P1590

P990

P1546

Order no.: 0162840

SPE-15F/WS

Pair of weatherproof flush-mount PA speakers, 15 W,

with UV-stabilised plastic housing, super slimline design.

Versatile use for PA, car hi-fi, terrace, boat, swimming pool areas.

Weatherproof polypropylene spaker cone
Tested according to ASTM B117 (400 h salt spray test)
Low stray magnetic field
Supplied with stainless mounting accessories and connection cable

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Pair of weatherproof flush-mount PA speakers, 15 W,

with UV-stabilised plastic housing, super slimline design.

Versatile use for PA, car hi-fi, terrace, boat, swimming pool areas.

Weatherproof polypropylene spaker cone
Tested according to ASTM B117 (400 h salt spray test)
Low stray magnetic field
Supplied with stainless mounting accessories and connection cable

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	80-16,000 Hz
Power rating (RMS)	15 W
Peak music power output (MAX)	30 W
SPL	86 dB/W/m
Magnet weight	83 g

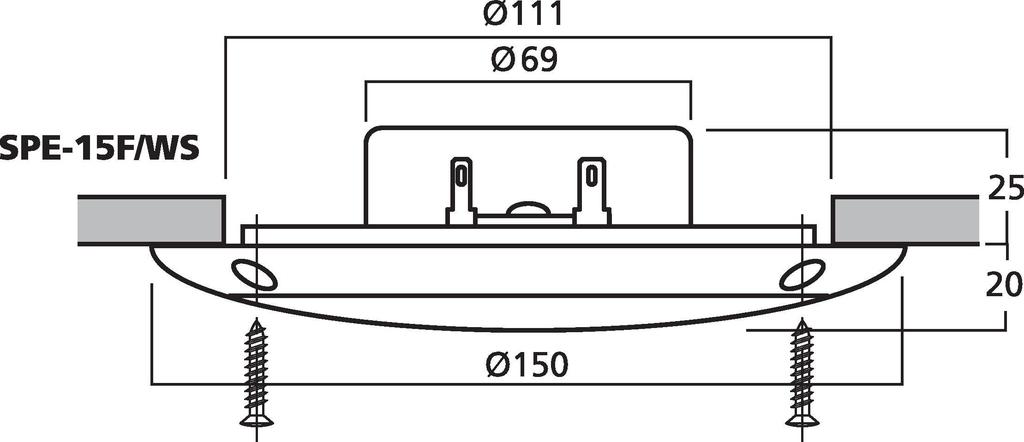

Mounting cutout	Ø 111 mm
Mounting depth	25 mm
Dimensions	Ø 150 mm x 45 mm
Outside diameter	Ø 150 mm
Width	Ø 150 mm
Height	Ø 150 mm
Depth	45 mm
Colour	white
Protective class	IP65
Admiss. ambient temp.	0-40 °C
Weight	270 g
Packing unit	2
Type of speaker	130
Packaging dimensions (W x H x L)	0.16 x 0.06 x 0.315 m
Gross weight	0.83 kg
Net weight	0.645 kg

EAN code	4007754220704
Net weight	0.645 kg

Downloads

Accessories for SPE-15F/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
