Order no.: 0101420

SPH-145HQ

P230 P500
Order no.: 0101420

SPH-145HQ

High-quality hi-fi bass-midrange speaker, 50 W, 8 Ω
  • 130 mm (5½") bass-midrange speaker
  • Further development of the classic speaker SPH-130

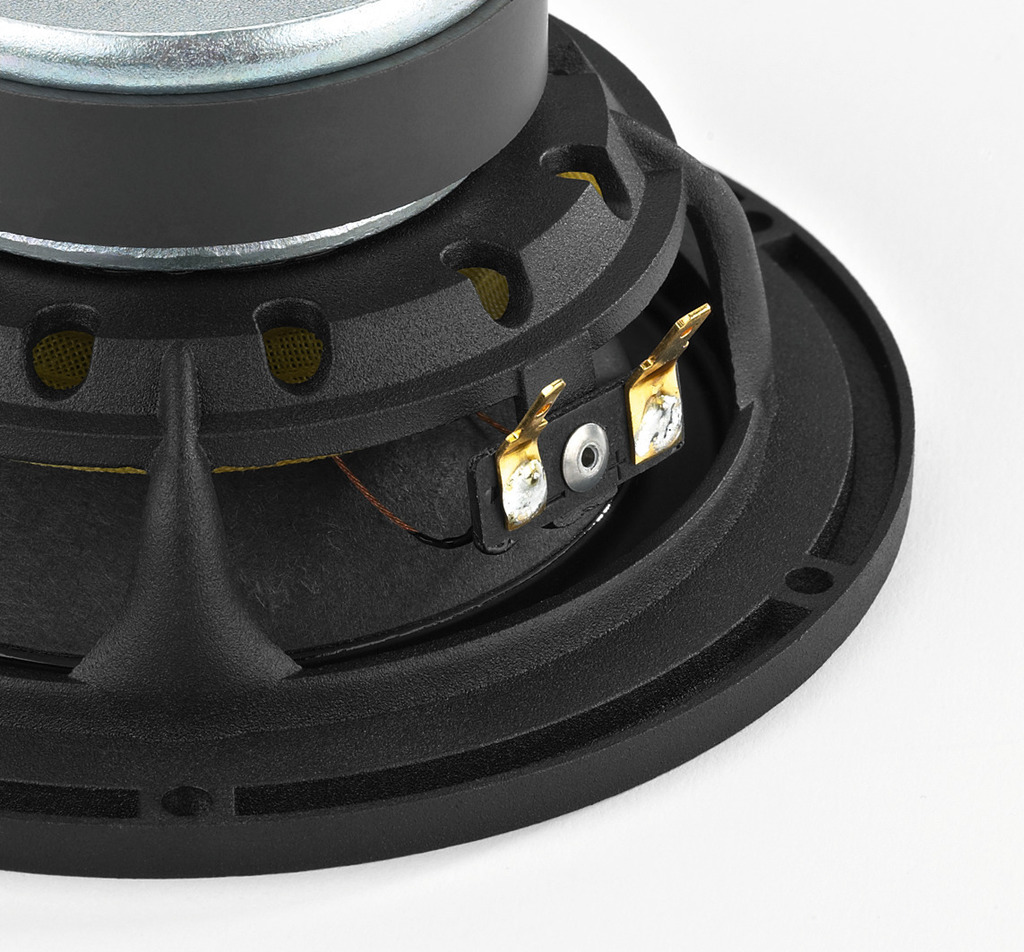

  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality, low-resonance paper cone
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideal for 2-way systems, D'Appolito arrangements and as a midrange system in large column speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

High-quality hi-fi bass-midrange speaker, 50 W, 8 Ω
  • 130 mm (5½") bass-midrange speaker
  • Further development of the classic speaker SPH-130
  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality, low-resonance paper cone
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideal for 2-way systems, D'Appolito arrangements and as a midrange system in large column speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

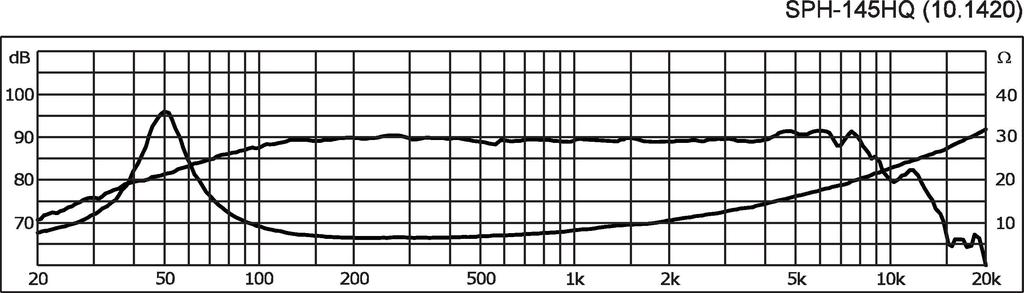

Frequency range f3-6,000 Hz
Resonant frequency (fs) 52 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 88 dB/W/m
Suspension compl. (Cms) 1.05 mm/N
Moving mass (Mms) 7.6 g
Mech. Q factor (Qms) 3.07
Electr. Q factor (Qes) 0.51
Total Q factor (Qts) 0.44
Equivalent volume (Vas) 9.4 l
DC resistance (Re) 5.8 Ω
Force factor (BxL) 5.33 Tm
Voice coil induct. (Le) 0.53 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 230 g
Magnet diameter Ø 72 mm

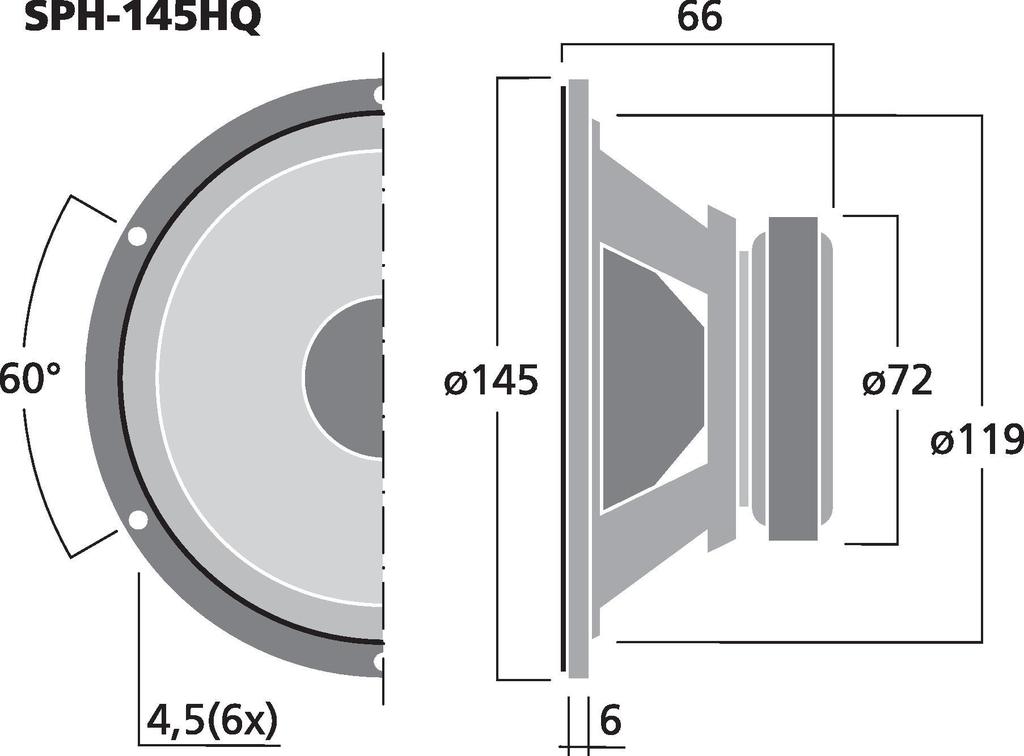

Mounting cutout Ø 119 mm
Mounting depth 60 mm
Mounting hole diameter Ø 118 mm
Dimensions Ø 145 mm x 66 mm
Outside diameter Ø 145 mm
Width Ø 145 mm
Height Ø 145 mm
Depth 66 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.739 kg
Packing unit 1
Type of speaker 5.5"
Packaging dimensions (W x H x L) 0.165 x 0.11 x 0.17 m
Gross weight 0.88 kg
Net weight 0.739 kg
EAN code 4007754228014
Net weight 0.739 kg
