Order no.: 0102390

SPH-300KE

Order no.: 0102390

SPH-300KE

Top hi-fi bass speaker, 120 W, 8 Ω

Finely textured Kevlar fibre cone
Diecast aluminium basket
Drive of very long excursion
A very deep bass reproduction in bass-reflex cabinets
Clear pulsed reproduction and yet a deep bass reproduction in closed cabinets
For any hi-fi and high-end application

HOBBY HiFi 04/2015

“Deep bass reproduction, level stability, wide bandwidth and low distortion: the SPH-300KE provides excellent results in every category ... a real all-rounder.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Top hi-fi bass speaker, 120 W, 8 Ω

Finely textured Kevlar fibre cone
Diecast aluminium basket
Drive of very long excursion
A very deep bass reproduction in bass-reflex cabinets
Clear pulsed reproduction and yet a deep bass reproduction in closed cabinets
For any hi-fi and high-end application

HOBBY HiFi 04/2015

“Deep bass reproduction, level stability, wide bandwidth and low distortion: the SPH-300KE provides excellent results in every category ... a real all-rounder.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

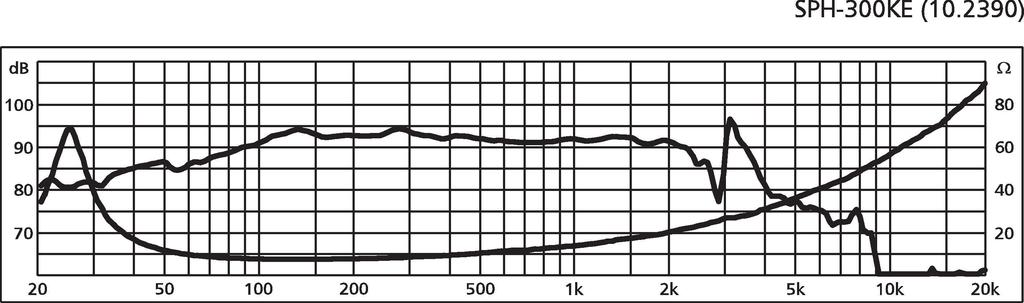

Frequency range	f3-2,200 Hz
Resonant frequency (fs)	22 Hz
Power rating (RMS)	120 W
Peak music power output (MAX)	200 W
SPL	90 dB/W/m
Suspension compl. (Cms)	0.81 mm/N
Moving mass (Mms)	65 g
Mech. Q factor (Qms)	4.15
Electr. Q factor (Qes)	0.36
Total Q factor (Qts)	0.33
Equivalent volume (Vas)	250 l
DC resistance (Re)	6.2 Ω
Force factor (BxL)	12.50 Tm
Voice coil induct. (Le)	1.5 mH
Voice coil diameter	Ø 65.5 mm
Voice coil former	glass fibre
Linear excursion (X_MAX)	± 6.5 mm
Eff. cone area (Sd)	496 cm²
Magnet weight	1.2 kg + 79 g

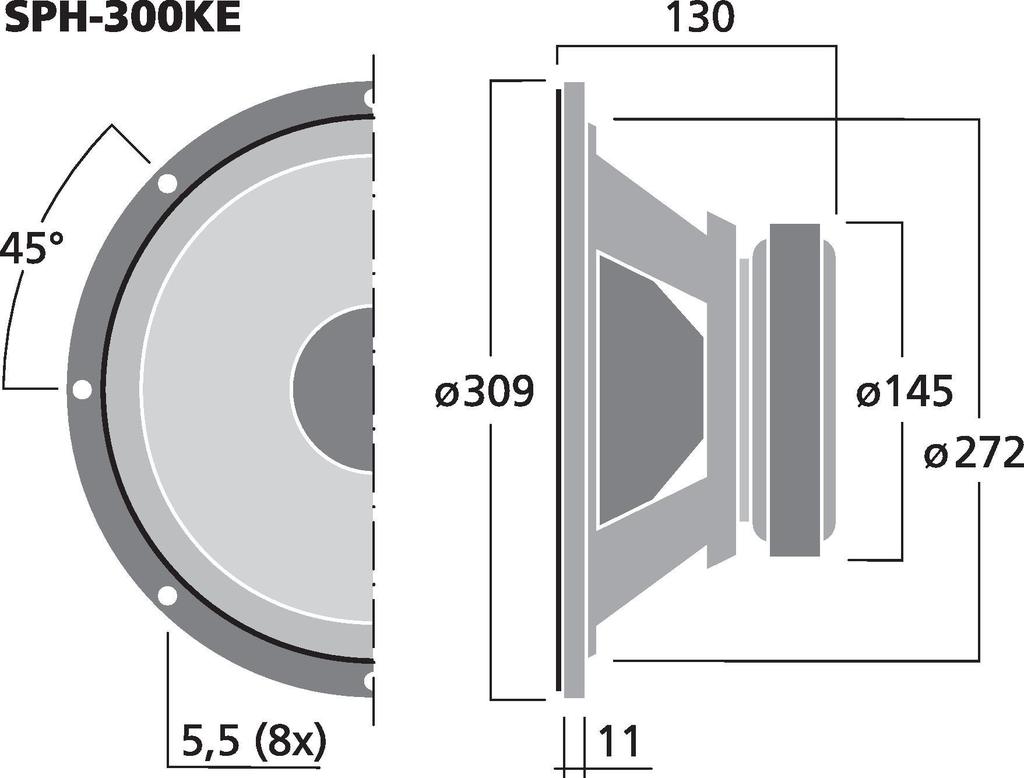

Magnet diameter	Ø 145 mm
Mounting cutout	Ø 272 mm
Mounting depth	119 mm
Dimensions	Ø 309 mm x 130 mm
Outside diameter	Ø 309 mm
Width	Ø 309 mm
Height	Ø 309 mm
Depth	130 mm
Colour	black/yellow
Admiss. ambient temp.	0-40 °C
Weight	4.3 kg
Packing unit	1
Type of speaker	12"
Packaging dimensions (W x H x L)	0.32 x 0.165 x 0.32 m
Gross weight	4.86 kg
Net weight	4.3 kg
